Installation

5.7L





1. Press sensor into rubber air hose.

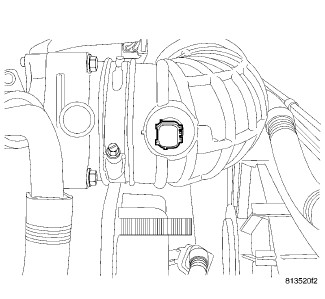

2. Rotate sensor into position as shown in illustration. For proper system operation, sensor must be positioned as shown in illustration.

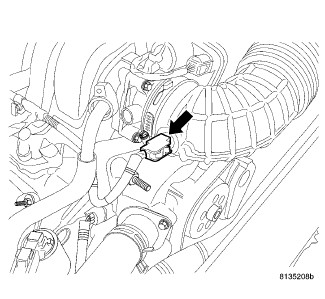

3. Connect electrical connector to sensor.
