Installation

INSTALLATION

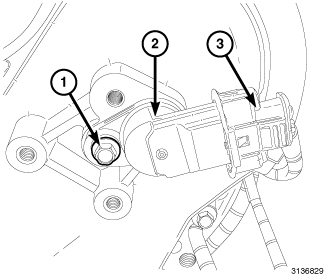

1. Install Camshaft Position (CMP) sensor (2). Tighten bolt (1) to 8 Nm (71 in. lbs.).
2. Connect the CMP wire harness connector (3).
3. Connect the negative battery cable.
