EXHAUST TEMPERATURE SENSOR 1/1





1. Disconnect the negative battery cable.

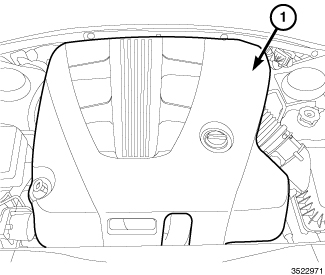

2. Remove the engine cover (1).

3. Remove the cowl extension and the side extensions Cowl Panel Cover - Removal.

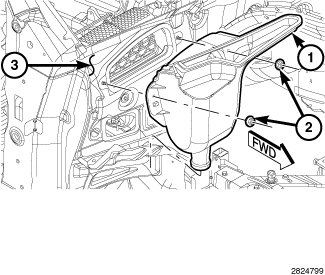

4. Remove nuts and the HVAC air inlet housing (1).

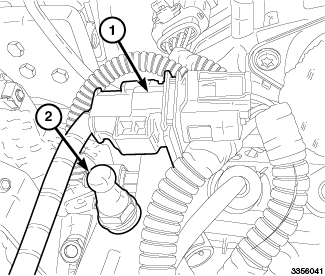

5. Disconnect the oxygen sensor wire harness connector (1).
6. Disconnect the upstream exhaust temperature sensor wire harness connector.

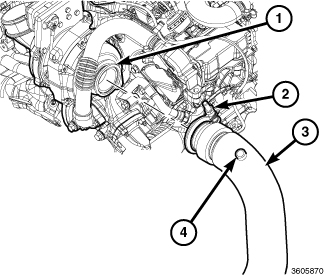

7. Loosen the clamp (2) and separate the Diesel Particulate Filter (DPF) from turbocharger.

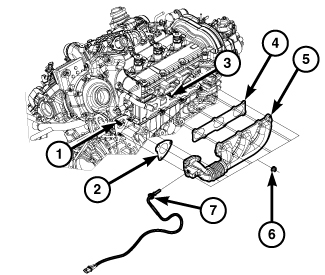

8. Remove the exhaust temperature sensor (7).
