Oil Pressure Sensor - Removal

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the accessory drive belt Serpentine Accessory Drive Belt - Removal
3. Remove the upper generator mounting bolt.
4. Raise and support the vehicle.




5. Remove the lower splash shield retaining bolts (1) and the splash shield.

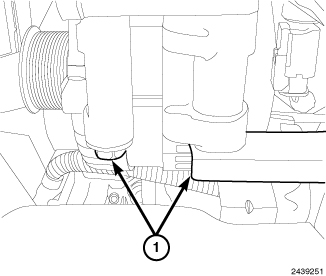

6. Remove the lower generator retaining bolts (1).
7. Lower the vehicle.
8. Position the generator aside to gain access to the oil pressure sensor.

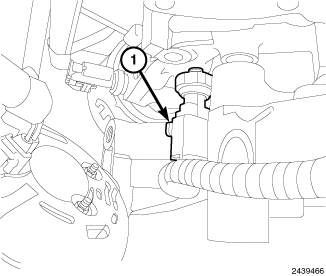

9. Disconnect the oil pressure sensor electrical connector (1).

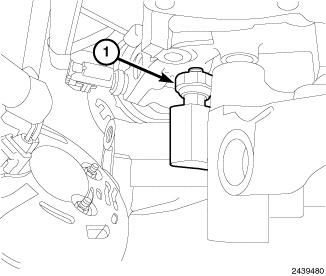

10. Remove the oil pressure sensor (1).
