Cylinder Head Assembly

CYLINDER HEAD ASSEMBLY

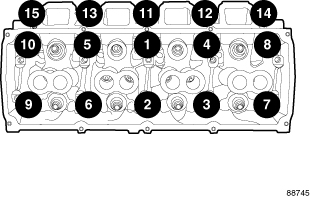

Tighten the cylinder head bolts 1 through 10 34 Nm (25 ft. lbs.).
Tighten the cylinder head bolts 11 through 15 20 Nm (15 ft. lbs.).
Tighten the cylinder head bolts 1 through 10 54 Nm (40 ft. lbs.).
Tighten the cylinder head bolts 11 through 15 20 Nm (15 ft. lbs.).
Tighten the cylinder head bolts 1 through 10 an additional 90° turn.
Tighten the cylinder head bolts 11 through 15 34 Nm (25 ft. lbs.).






SURFACE VARIATION

If tolerances exceed 0.0508 mm (0.002 in.) replace the cylinder head.







INTAKE MANIFOLD

Intake Manifold Specifications

EXHAUST MANIFOLD

Exhaust Manifold Specifications

CAMSHAFT GEAR/SPROCKET

Camshaft Gear/Sprocket Specifications
