Sensor, Differential Pressure: Installation: Diesel

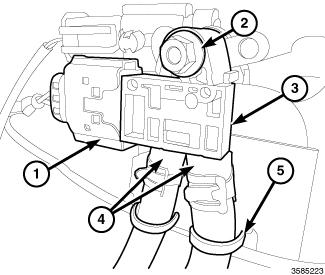

Fig 1: Differential Pressure Sensor Wire Harness Connector, Zip Tie, Differential Pressure Sensor Hoses, Nut & Differential Pressure Sensor
- Install the differential pressure sensor (3) and securely tighten the nut (2) to 18 N.m (159 in. lbs.).NOTE:
Before installing, inspect both pressure hoses and make sure there is not any dip across the hoses. In cases where water is frozen, a dip across the hoses can cause condensation which can set a MIL.
- Connect the differential pressure sensor hoses (4).
- Install the zip tie (5) to secure the differential pressure sensor hoses (4).
- Connect the differential pressure sensor wire harness connector (1).
- Lower the vehicle.
- Connect the negative battery cable.
