Shield, Heat: Installation: Installation

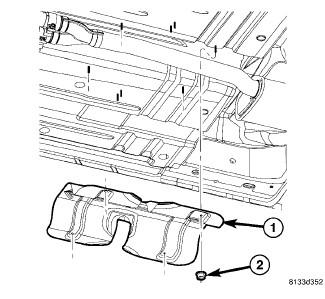

Fig 1: Heat Shields
GC0081954Courtesy of CHRYSLER GROUP, LLC
1 - HEAT SHIELD
2 - NUT
  1. Position the heat shields (1).
  2. Install the nuts (2). Tighten the nuts (2) to 10 N.m (98 in. lbs.).
  3. Install the floor pan mid support bracket.
  4. Lower the vehicle.
