Vehicle Lifting: Service and Repair

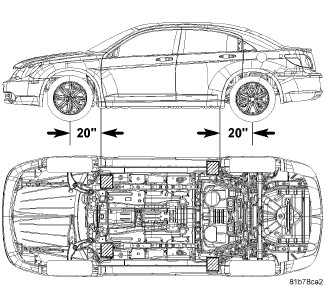

STANDARD PROCEDURE - HOISTING

WARNING:
The hoisting and jack lifting points provided are for a complete vehicle. When the engine or rear suspension is removed from a vehicle, the center of gravity is altered making some hoisting conditions unstable. Properly support or secure vehicle to hoisting device when these conditions exist.

CAUTION:
Do not position hoisting device on suspension components. Damage to vehicle can result.
