Installation







INSTALLATION

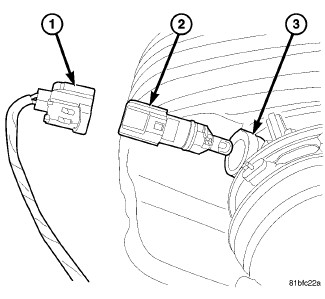

1. Install the inlet air temperature sensor (2) to the air box (3) by turning the sensor 1/4 turn in the clockwise direction.

2. Connect the inlet air temperature sensor electrical connector (1).

3. Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
