P128D-TCM Power Control Circuit 2 Open: Notes

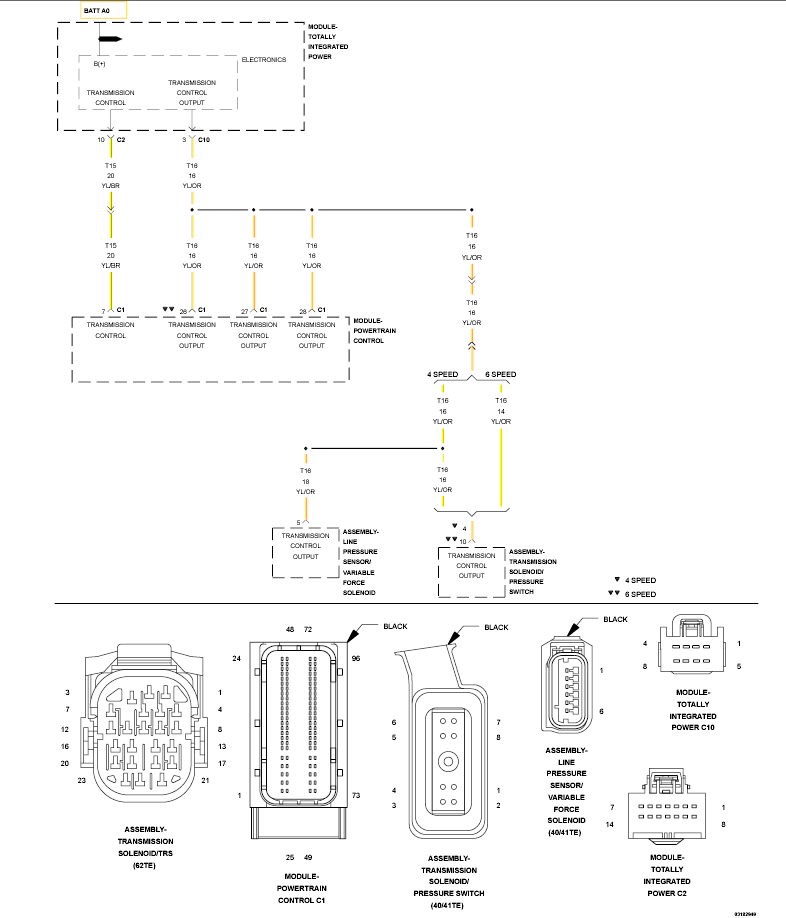

Fig 1: TCM Power Control Circuit 2 - Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
