Module, Drivetrain Control (DTCM): Removal

WARNING: This page is about a different car, the 2018 Dodge Challenger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver side floor cowl trim. Refer to PANEL, COWL TRIM, REMOVAL .
  2. Roll back the driver side carpet for access to the foot rest.

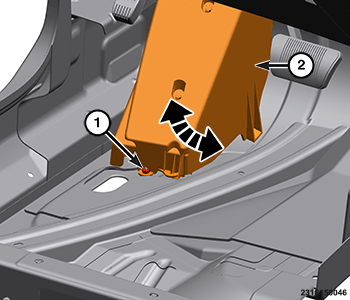

    GC0184109Courtesy of CHRYSLER GROUP, LLC
  3. Remove the foot rest nut (1) then lift up and slide rearward to release top tab. Disconnect wire harness connector and remove the foot rest (2).
    GC0095226Courtesy of CHRYSLER GROUP, LLC
  4. Loosen the mounting nut (2) from mounting stud (6), remove mounting nut (4) from mounting stud (5).
  5. Slide the Drivetrain Control Module (DTCM) from mounting stud (6) and remove from drivers side foot rest (3).
