Steering System: Column: Description
The airbag system is a sensitive, complex electro-mechanical unit. Before attempting to diagnose, remove or install the airbag system components you must first disconnect and isolate the battery negative (ground) cable. Then wait two minutes for the system capacitor to discharge. Failure to do so could result in accidental deployment of the airbag and possible personal injury. The fasteners, screws, and bolts, originally used for the airbag components, have special coatings and are specifically designed for the airbag system. They must never be replaced with any substitutes. Anytime a new fastener is needed, replace with the correct fasteners provided in the service package or fasteners listed in the parts books.
Do not hammer on steering column shaft. This may cause damage to the column internally.

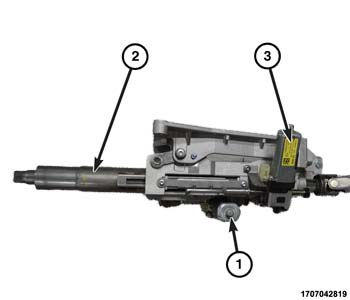

There are two types of columns available: electronic tilt/telescope (2) and manual tilt/telescope (not shown). Each type of column has been designed to be serviced as an assembly less wiring, switches, steering wheel, etc.
There are no serviceable components on the steering column.
The electronic tilt and telescope column is operated by a switch on the column located below the multi-function switch. If the tilt or telescope function is not working, check the connectors before replacing the column.
When servicing any component of the steering column, refer to Restraints and observe all WARNINGS and CAUTIONS. Refer to WARNING .
