Exhaust System
WARNING: This page is about a different car, the 2025 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
2.0L
TORQUE SPECIFICATIONS - EXHAUST SYSTEM
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Front Exhaust Pipe to Catalytic Converter | 25 N.m (18 Ft. Lbs.) | - |
| 2 | Exhaust Pipe Isolator to Crossmember Bolt | 33 N.m (45 Ft. Lbs.) | - |
| 3 | Exhaust Pipe Upper Isolator to Crossmember Bolt | 33 N.m (45 Ft. Lbs.) | - |
| 4 | Resonator to Front Exhaust Pipe Clamp | 33 N.m (45 Ft. Lbs.) | - |
| - | Catalytic Converter to Turbocharger V-band Clamp | 18 N.m (13 Ft. Lbs.) | - |
| - | Turbocharger Heart Shield Bolts | 11 N.m (9 Ft. Lbs.) | - |

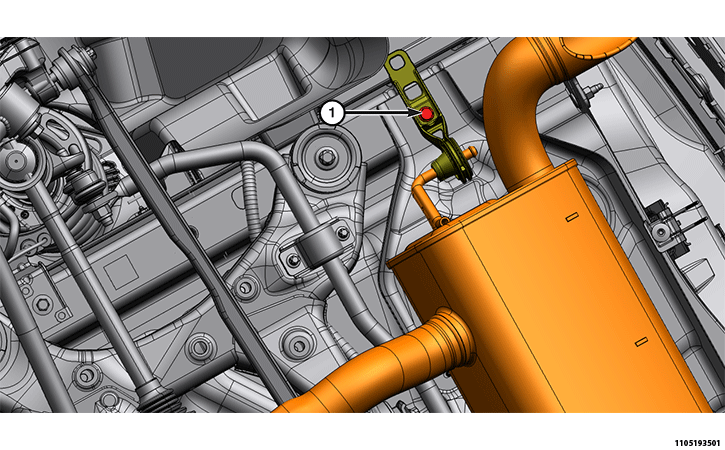

TORQUE SPECIFICATIONS - EXHAUST SYSTEM
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Rear Isolator to Body | 25 Nm. (18 Ft. Lbs.) | - |

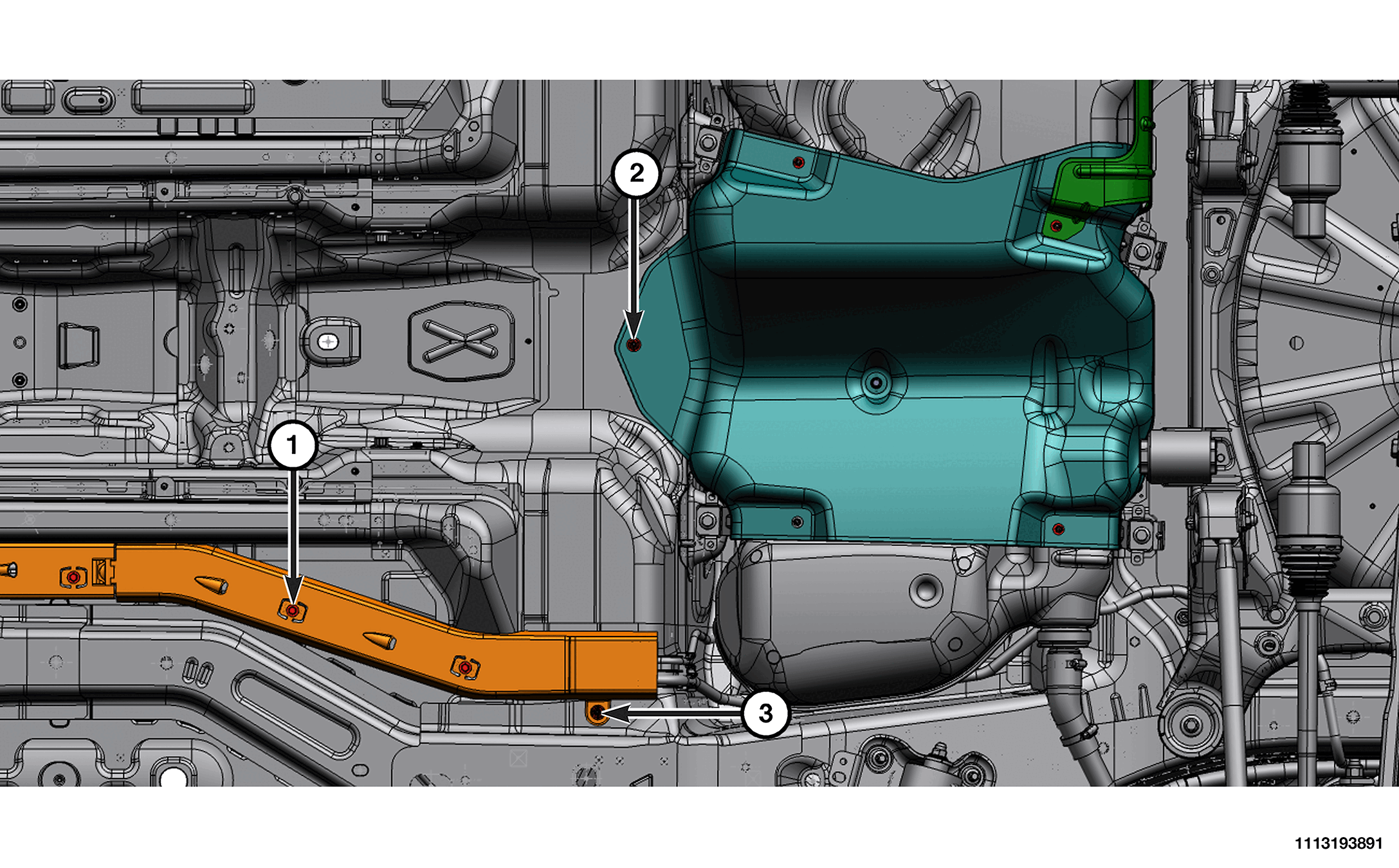

TORQUE SPECIFICATIONS - EXHAUST SYSTEM
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENTS |
|---|---|---|---|
| 1 | Heat Shield Nuts | 9 Nm. (80 In. Lbs.) | - |
| 2 | Heat Shield Bolts | 9 Nm. (80 In. Lbs.) | - |
