Rear Toe

NOTE: Perform the following at each rear wheel as necessary.

While holding the cam bolt head stationary, loosen the toe link mounting cam bolt nut.

Rotate the cam bolt head left or right until the rear wheel toe for that rear wheel is set to the preferred specification. Refer to WHEEL ALIGNMENT, TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

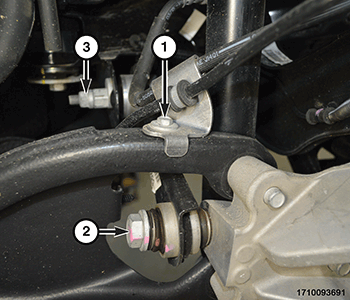

1 - Brake Hose Bracket Trailing Arm Bolt

2 - Knuckle Mounting Bolt

3 - Crossmember Mounting Nut

While holding the cam bolt head stationary, tighten the toe link mounting cam bolt nut to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
