DTC P0141: O2 Bank 1 Sensor 2 Heater

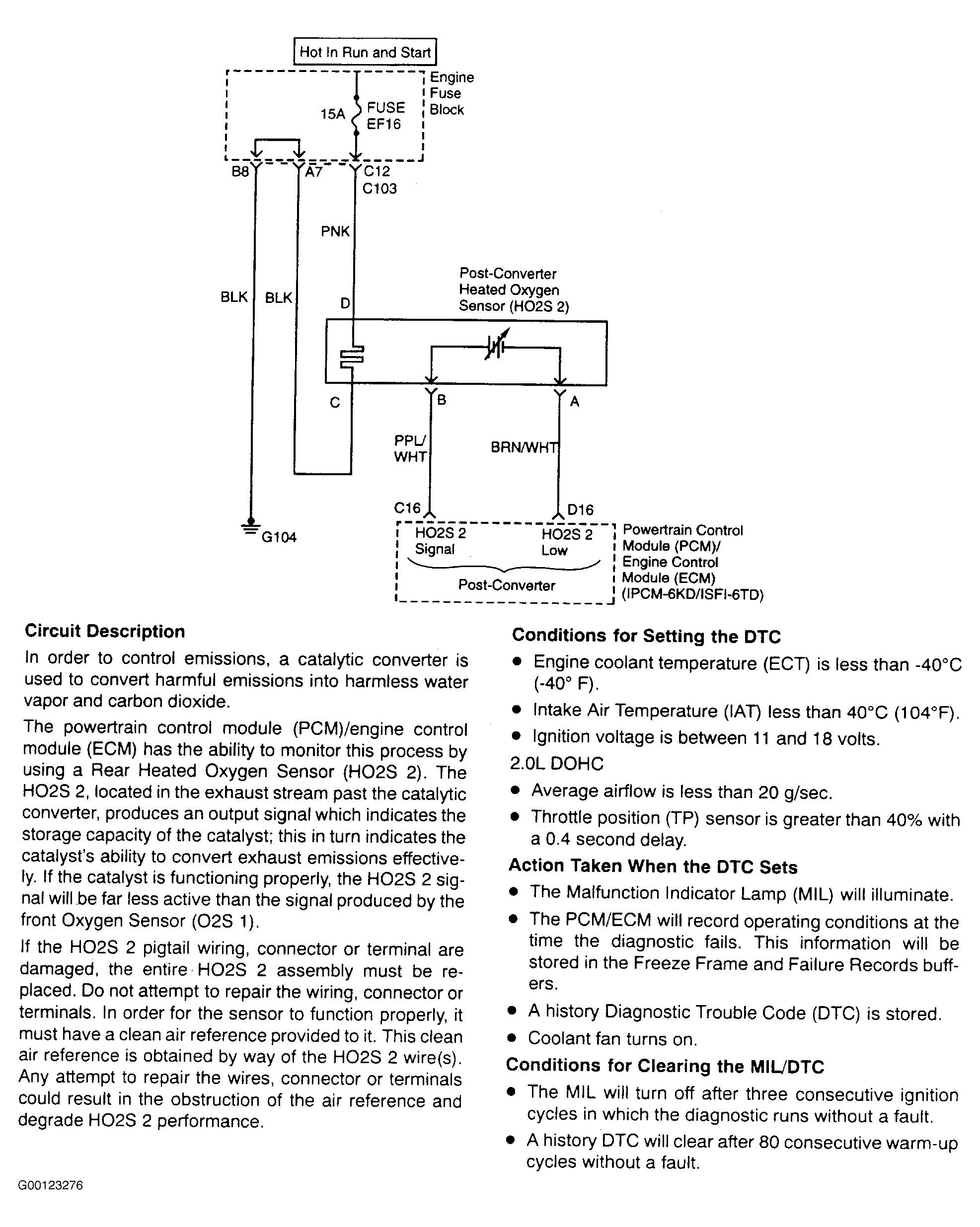

Fig 1: DTC P0141: O2 Bank 1 Sensor 2 Heater (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

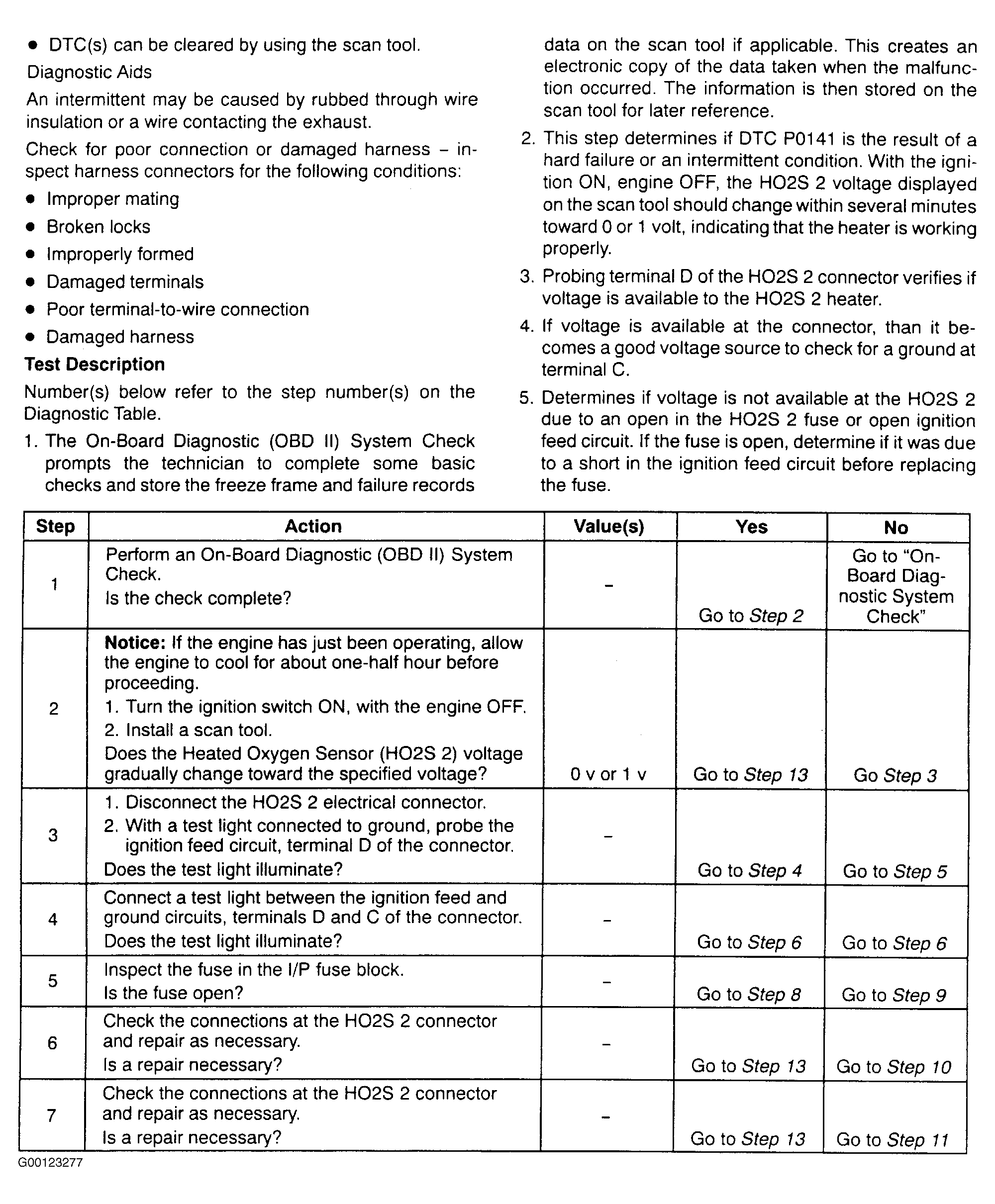

Fig 2: DTC P0141: O2 Bank 1 Sensor 2 Heater (2 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

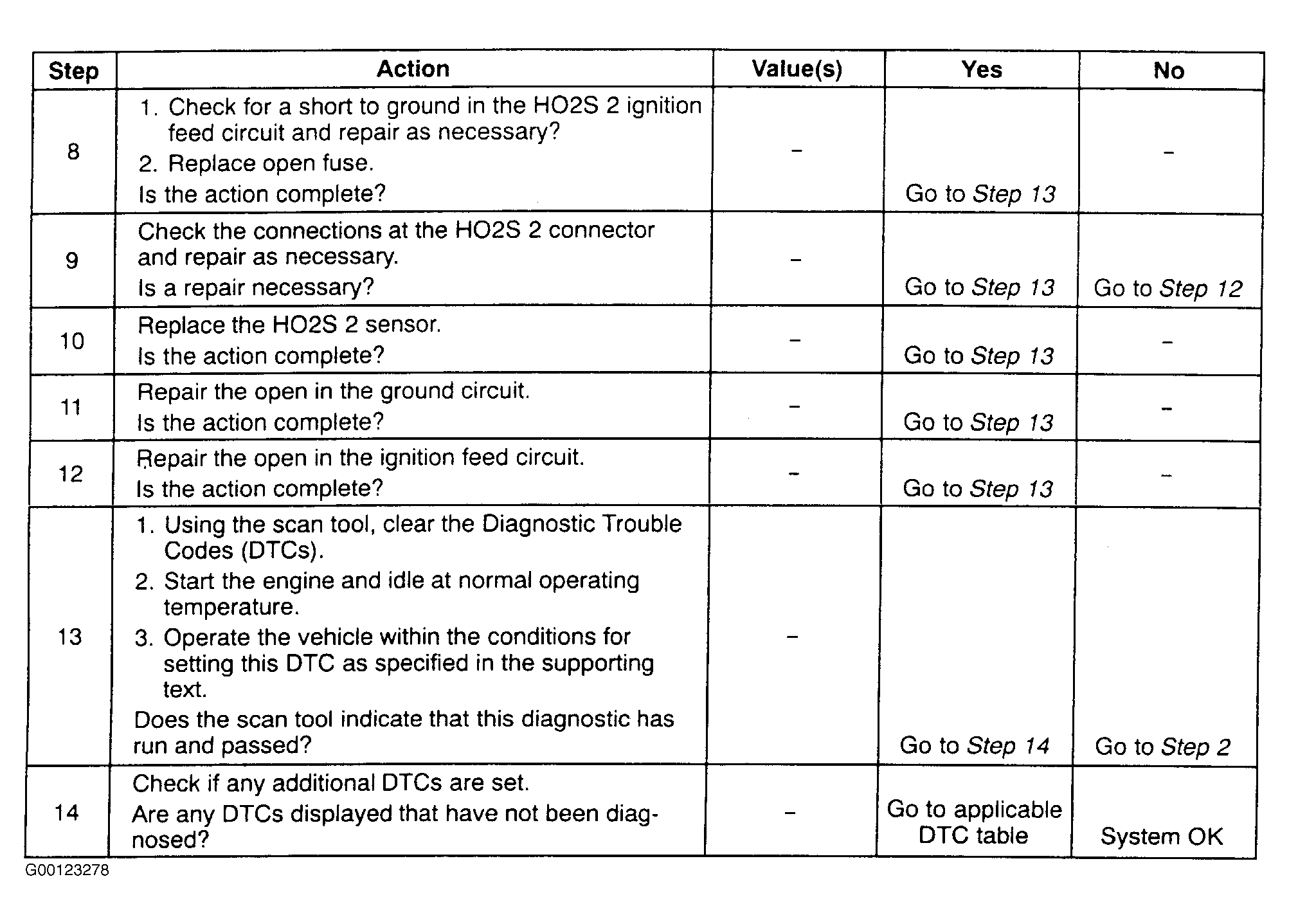

Fig 3: DTC P0141: O2 Bank 1 Sensor 2 Heater (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
