Misfire Data Display

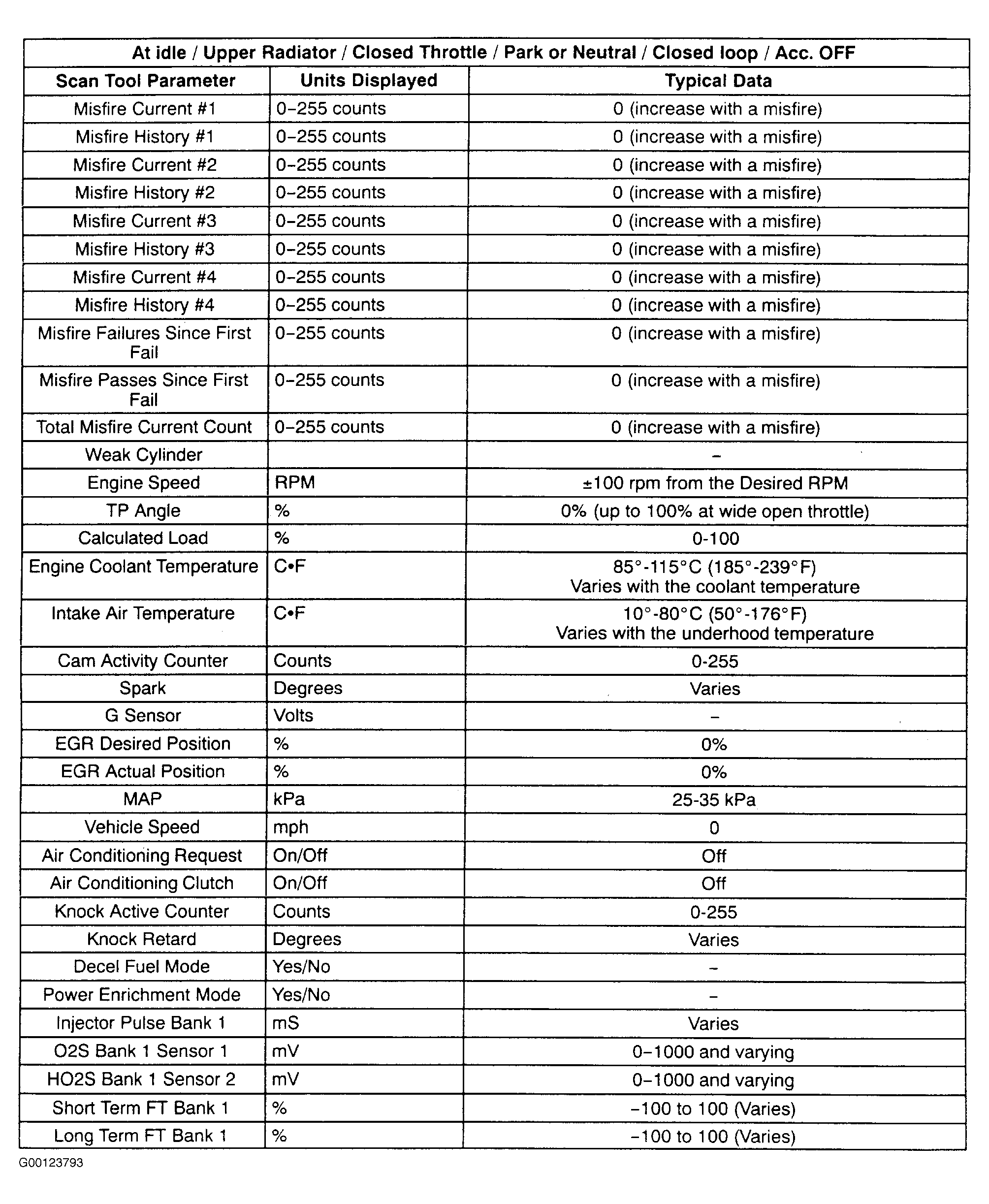

Fig 1: Misfire Data Display Table
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
