Ignition 1 Relay Circuit Check

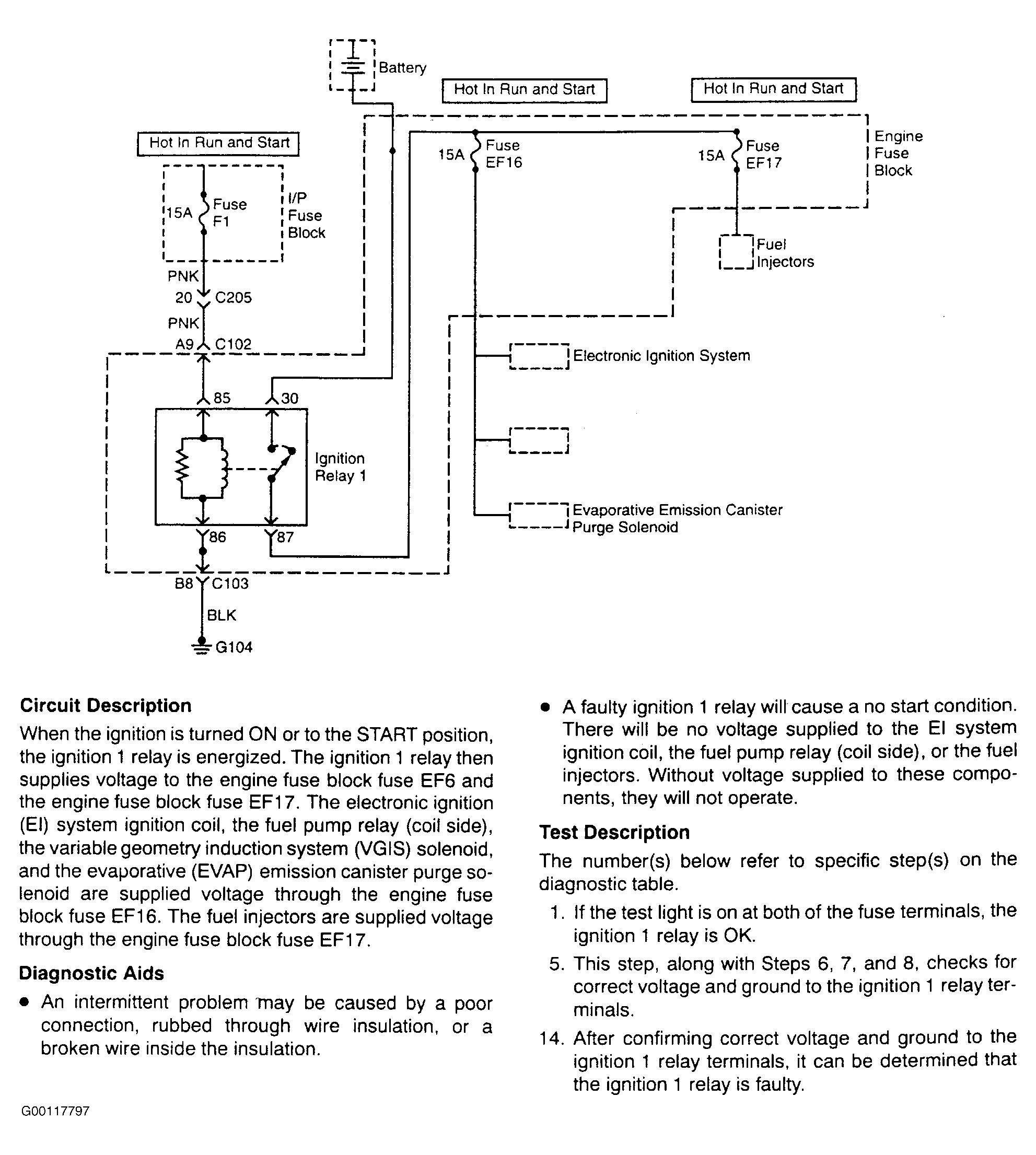

Fig 1: Ignition 1 Relay Circuit Check (1 Of 2)
G00117797Courtesy of DAEWOO MOTOR AMERICA, INC.
Fig 2: Ignition 1 Relay Circuit Check (2 Of 2)
G00047576Courtesy of DAEWOO MOTOR AMERICA, INC.
