Park/Neutral Position Switch

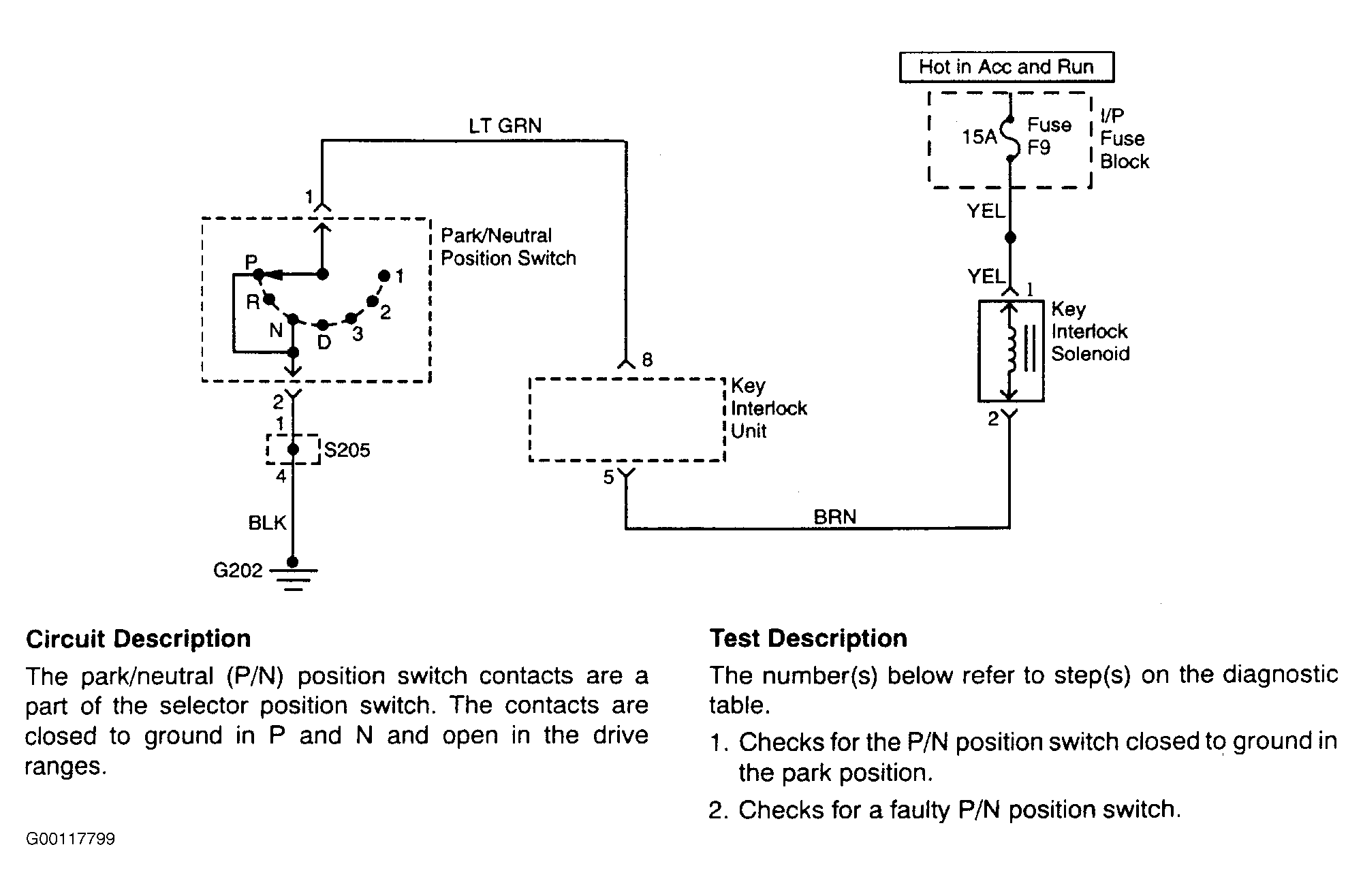

Fig 1: Park/Neutral Position Switch (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Fig 2: Park/Neutral Position Switch (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
