ABS 5.3 Modulator Assembly

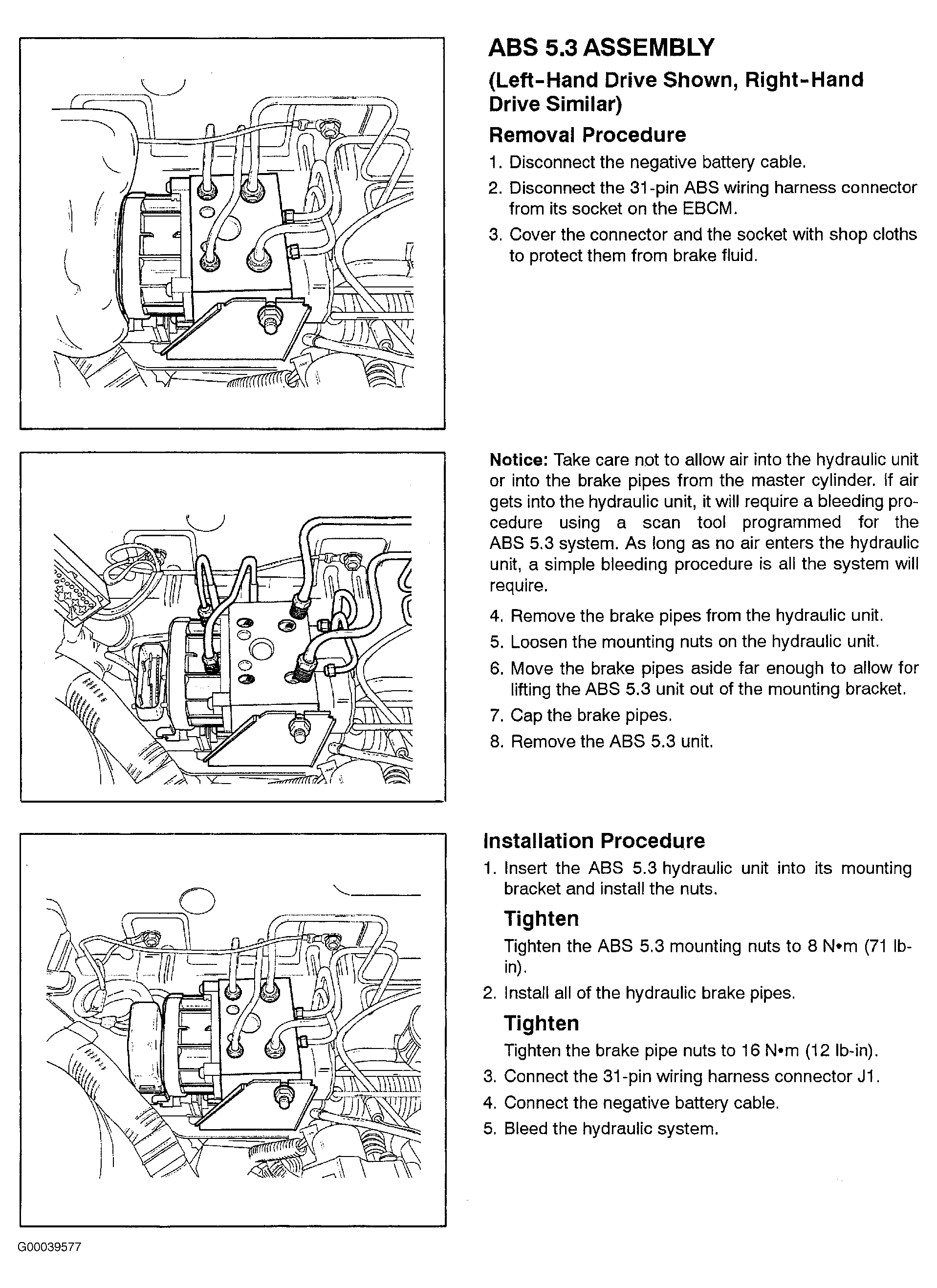

Fig 1: ABS Assembly
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
