Electrical Specifications

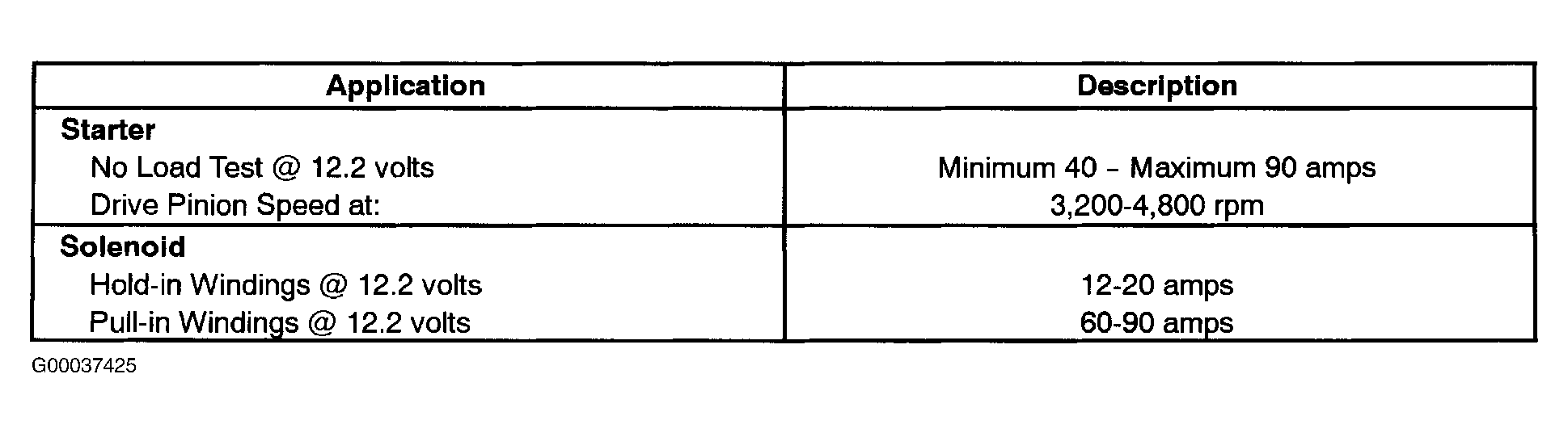

Fig 1: Starter Specifications
Courtesy of DAEWOO MOTORS AMERICA, INC.
Courtesy of DAEWOO MOTORS AMERICA, INC.
