DTC P1781: TCM Mil Request Control Circuit Fault
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC P1781: TCM Mil Request Control Circuit Fault

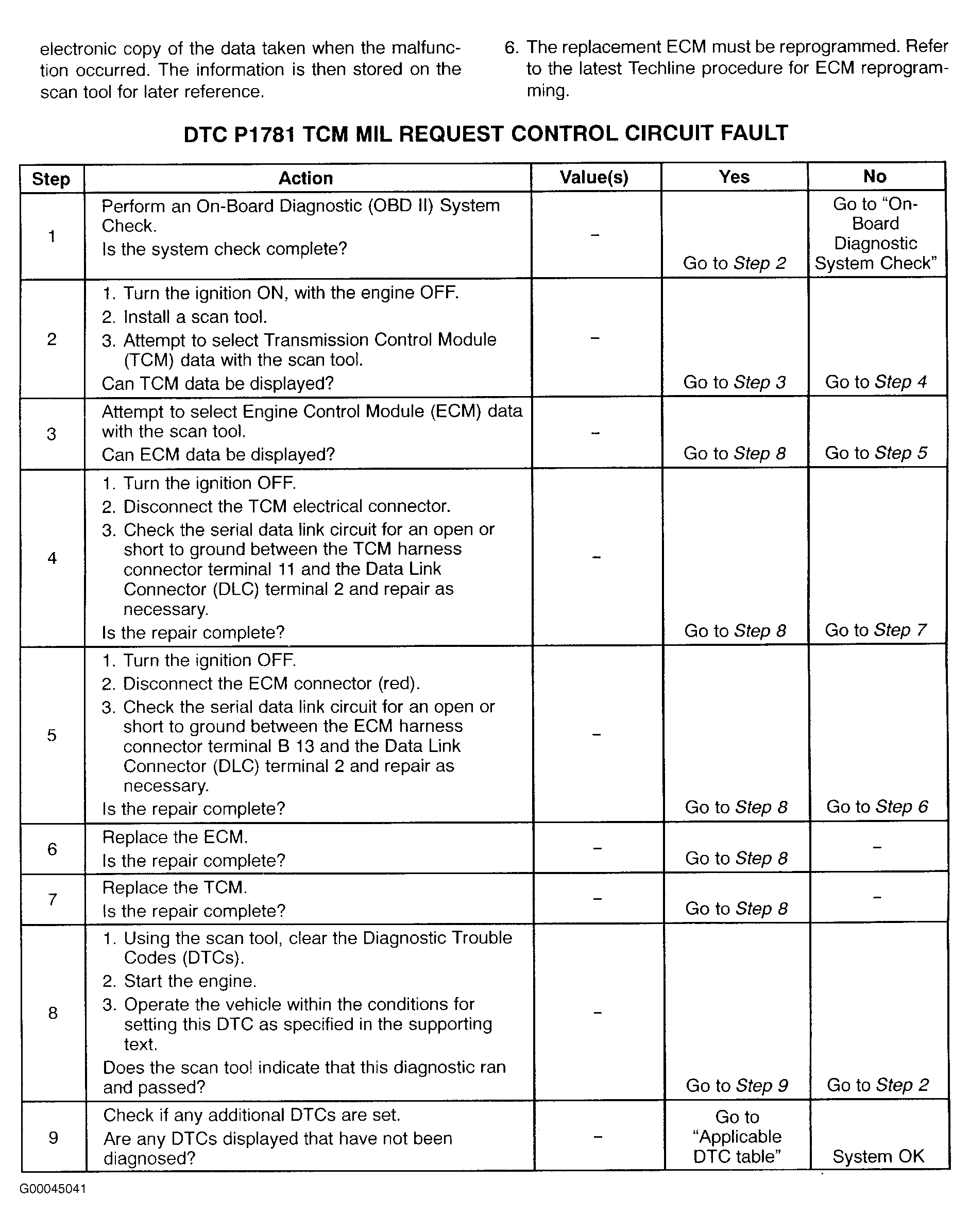

Fig 1: DTC P1781: TCM MIL Request Control Circuit Fault (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

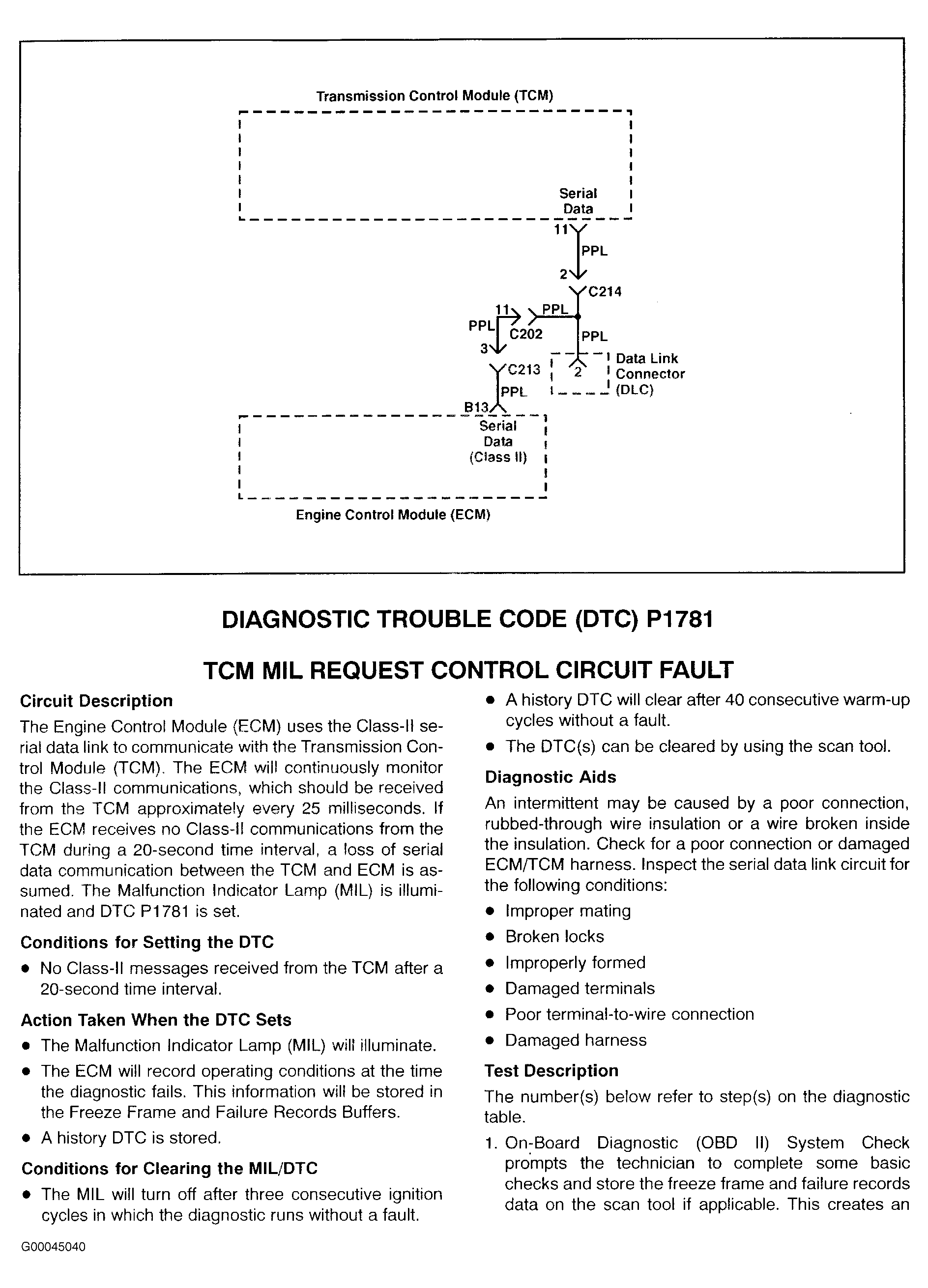

Fig 2: DTC P1781: TCM MIL Request Control Circuit Fault (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
