Control Cable

The various shift control cable positions must match at the shift control lever in the vehicle and at the selector lever on the transaxle to provide proper transaxle shifting. Place the shift control lever in the Park position and check the selector lever connection to verify that it is in forward most position. If it is not, the following adjustment must be performed:

1. Place the shift control lever in the Park position.
2. Remove the trim panel from the floor console.
3. Loosen the pinch bolt nut on the shift control lever. See Fig 1 .
4. Move the transaxle shift lever forward toward the front of the vehicle.
5. Verify that the shift control lever is in the Park position, then tighten the shift control cable adjuster pinch bolt and nut to specification. See TORQUE SPECIFICATIONS  .
6. Install the floor console trim panel.

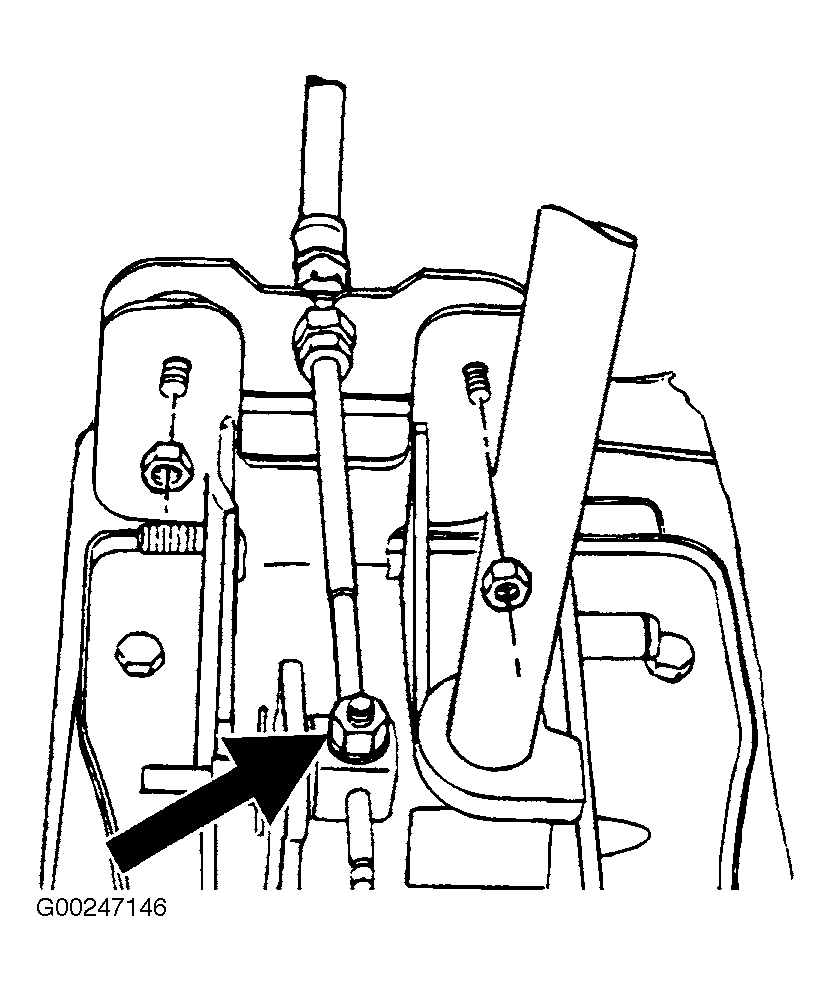

Fig 1: Locating Shift Control Lever Pinch Bolt

Courtesy of DAEWOO MOTOR AMERICA, INC.
