Component Connector Identification Charts

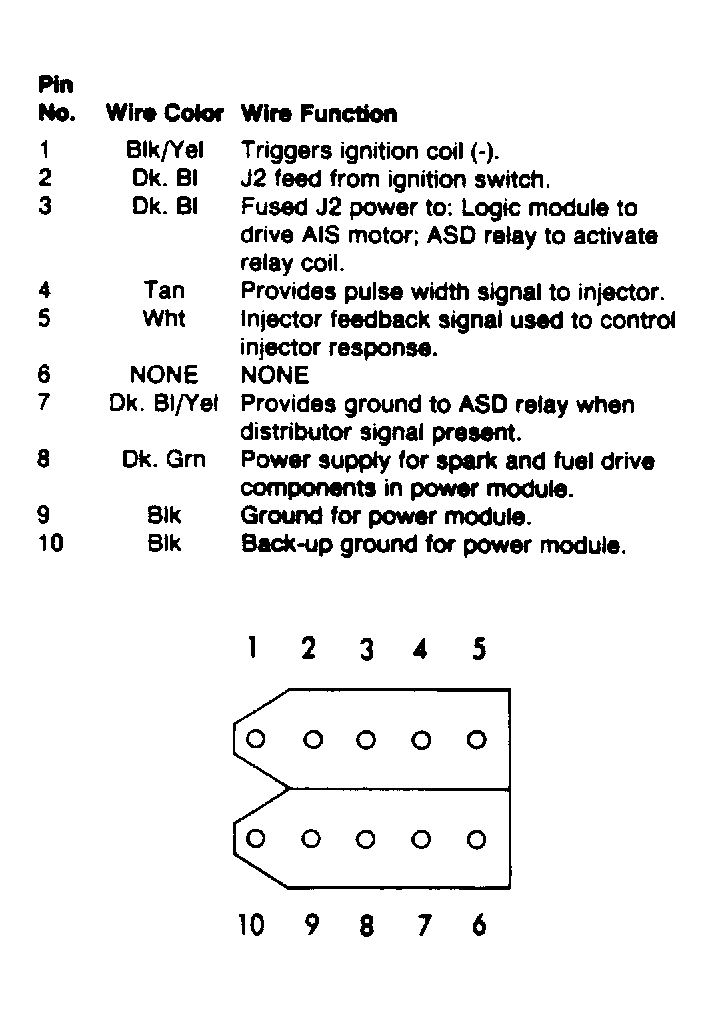

Fig 1: Power Module Pins - 10-Pin Connector

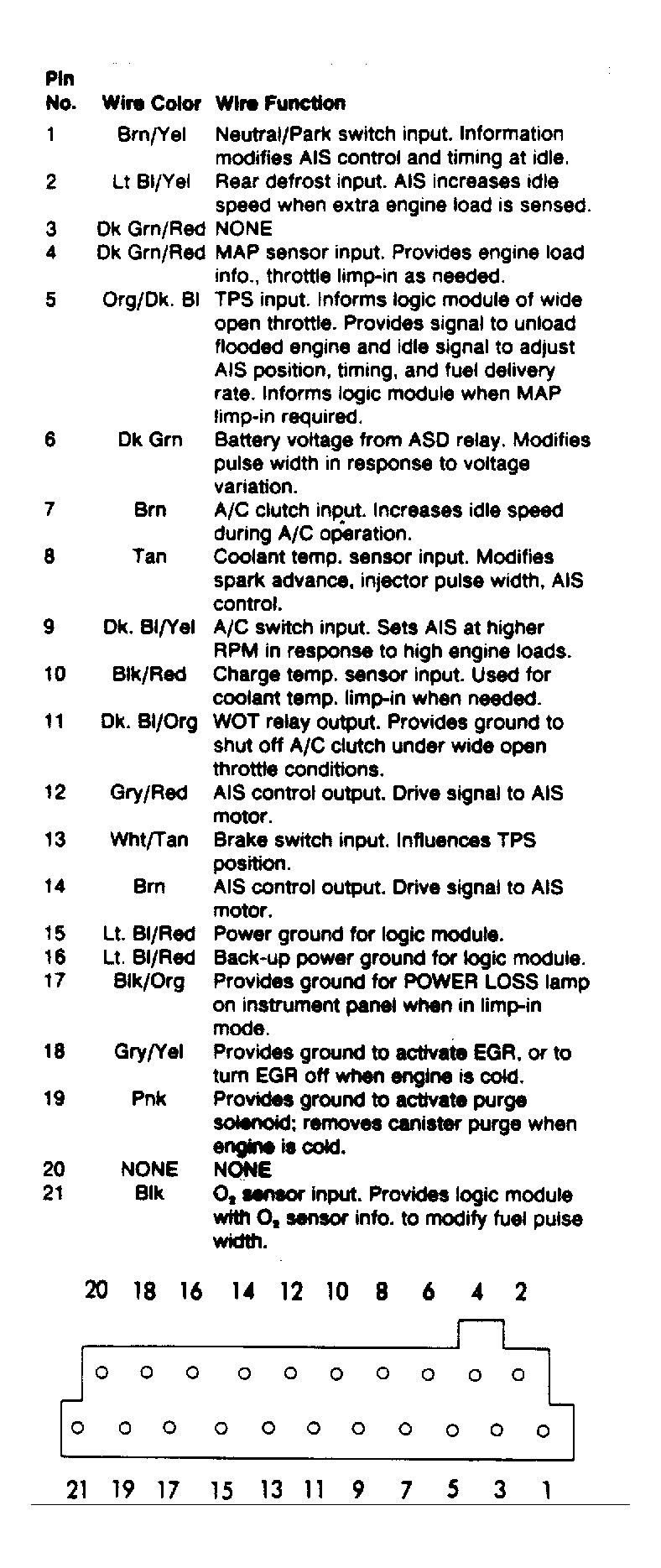

Fig 2: Logic Module Pins - Connector 1

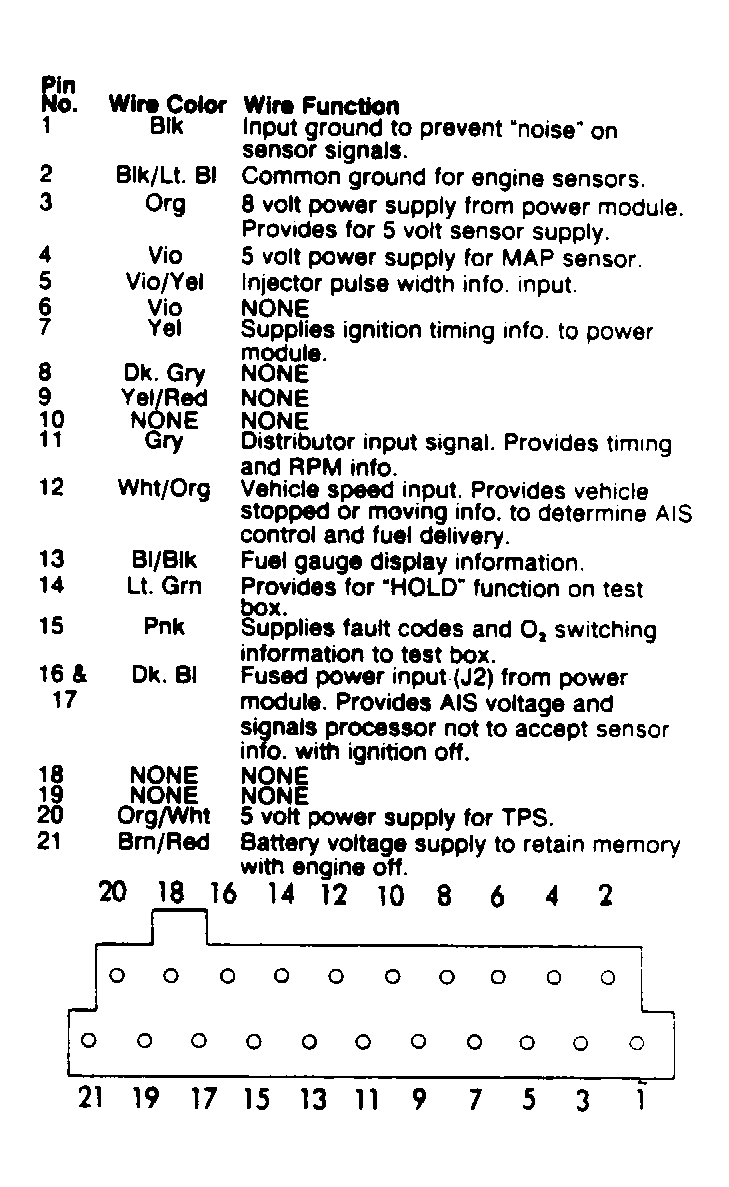

Fig 3: Logic Module Pins - Connector 2

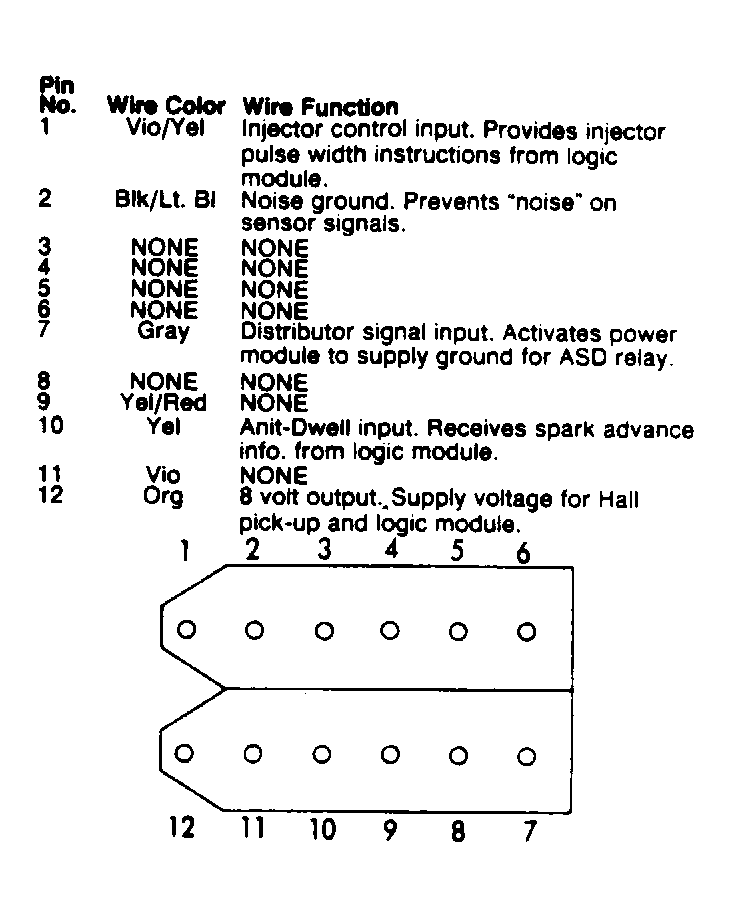

Fig 4: Power Module Pins - 12-Pin Connector

Fig 5: EGR/Purge Solenoid Connector Terminals

Fig 6: Wide Open Throttle A/C Relay Connector Terminal

Fig 7: Speed Sensor Connector Terminals

Fig 8: Coolant Temperature Sensor Connector Terminals

Fig 9: Throttle Position/AIS Motor Connector Terminals

Fig 10: Map Sensor Connector Terminals

Fig 11: Charge Temperature Sensor Connector Terminals

Fig 12: ASD Relay Connector Terminals

Fig 13: Distributor Connector Terminals
