SP2 - Checking For Fault Code 34

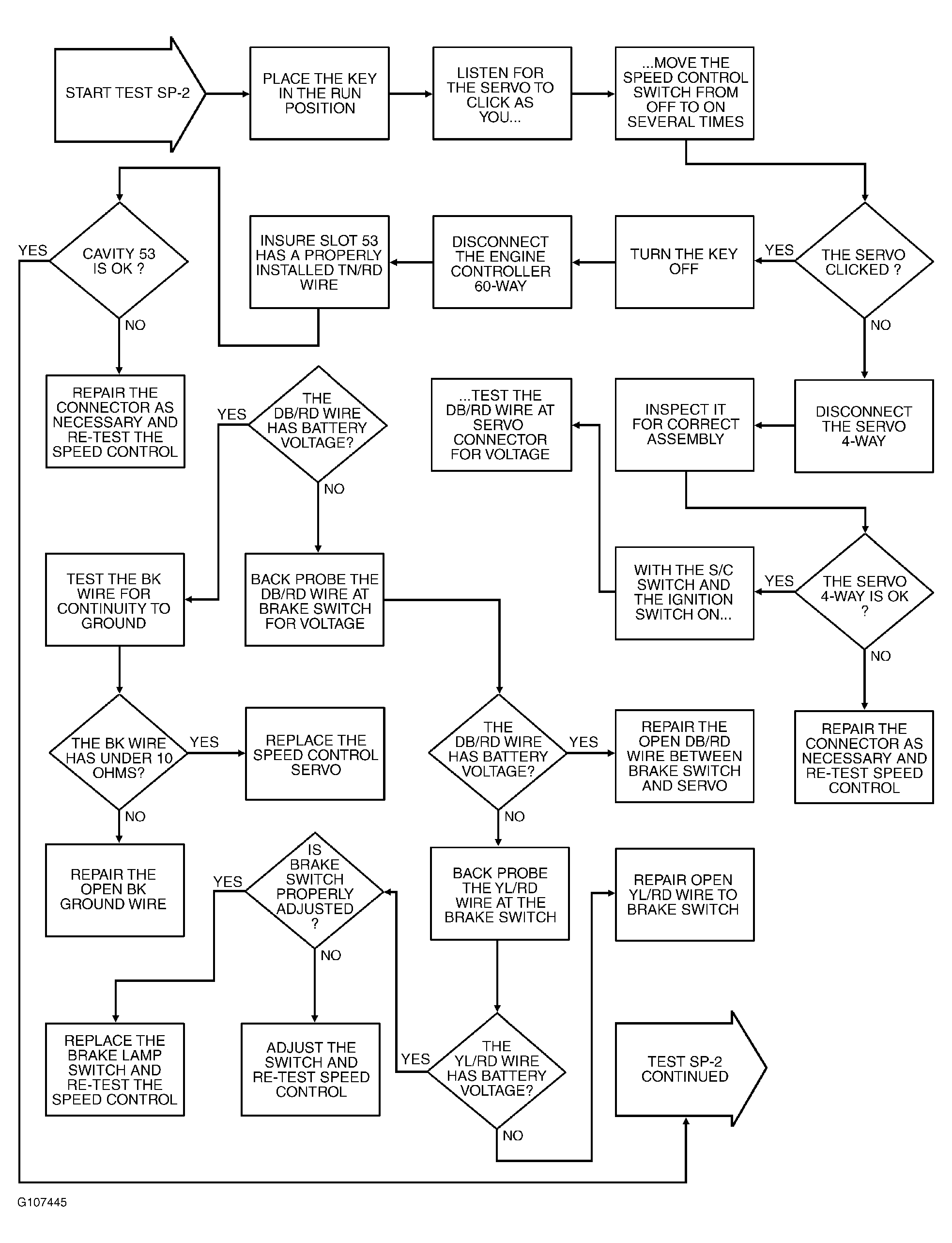

Fig 1: SP2 (1 of 3) - Checking For Fault Code 34
G107445

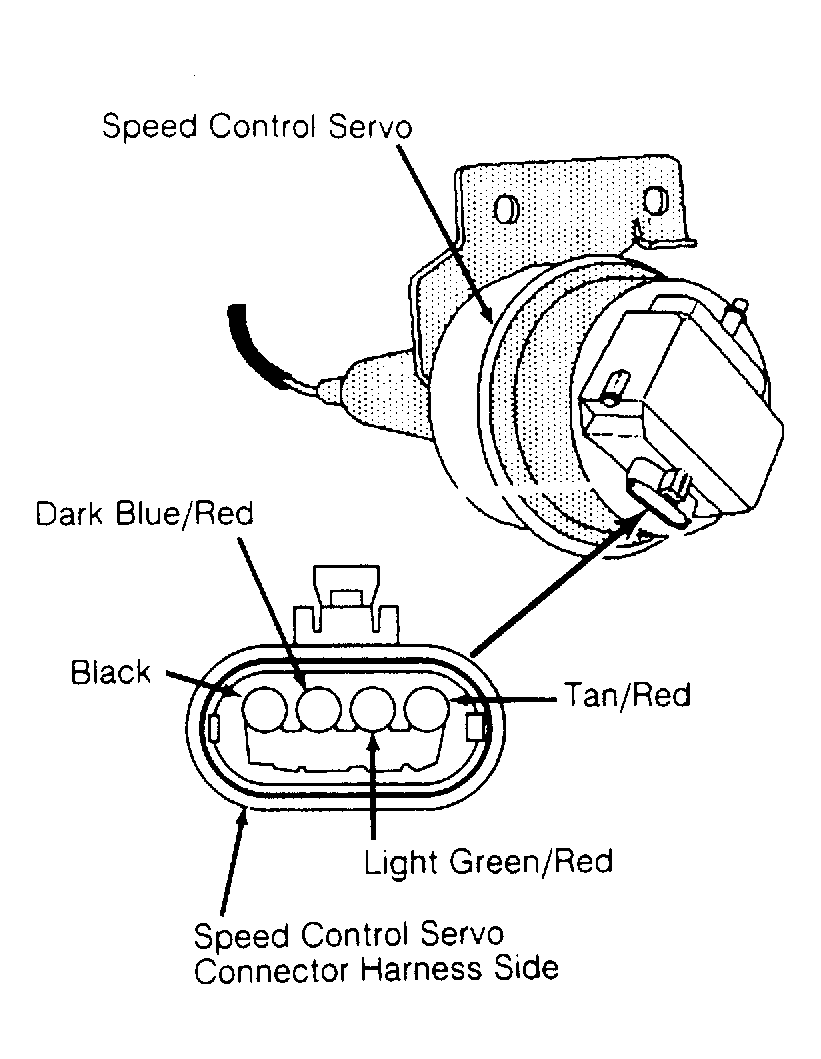

Fig 2: SP2 (2 of 3) - View Of Speed Control Connector
G107446

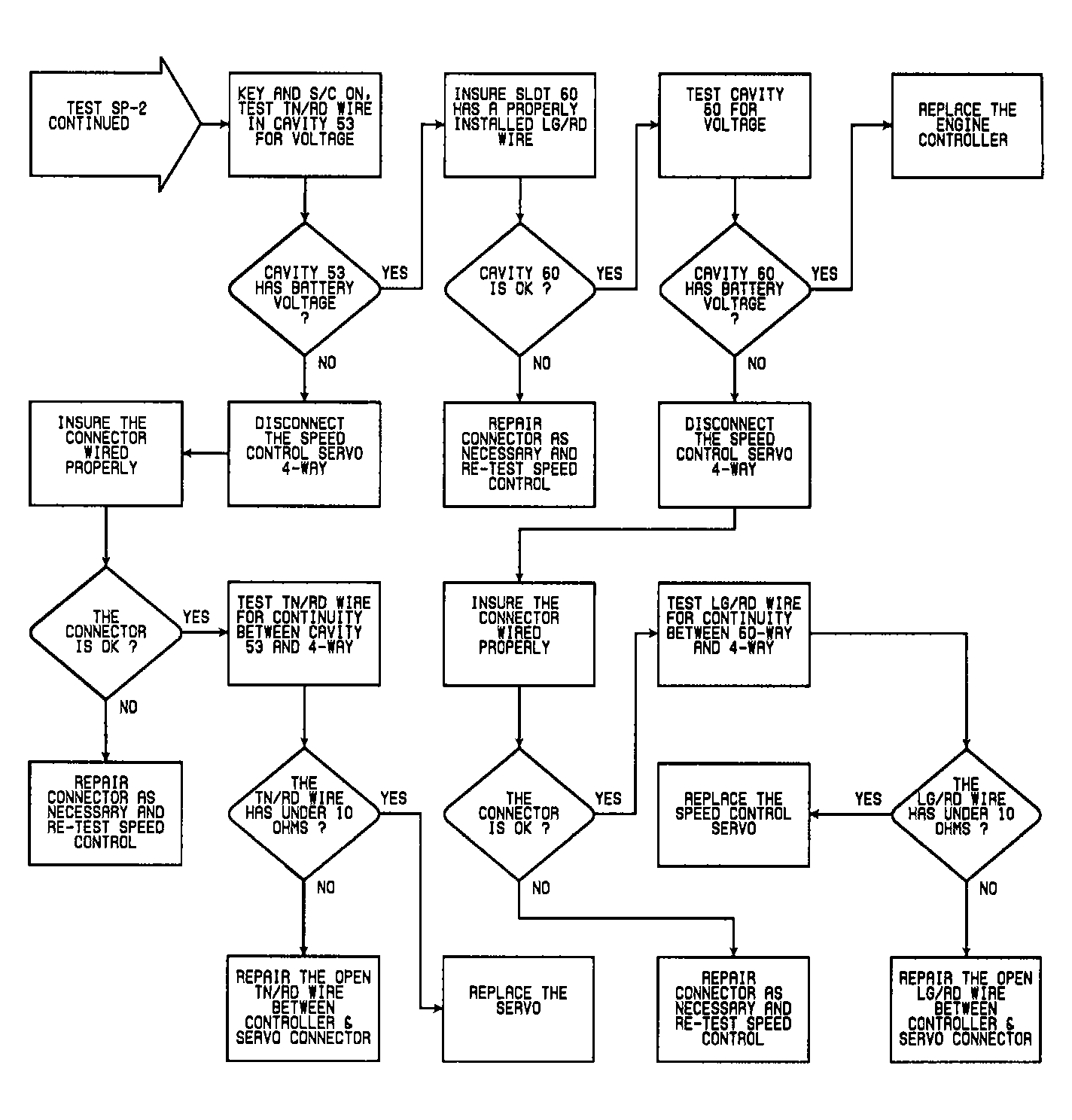

Fig 3: SP2 (3 of 3) - Checking For Fault Code 34 (Cont.)
G107447
