SP4 - Testing Brake Switch Circuit

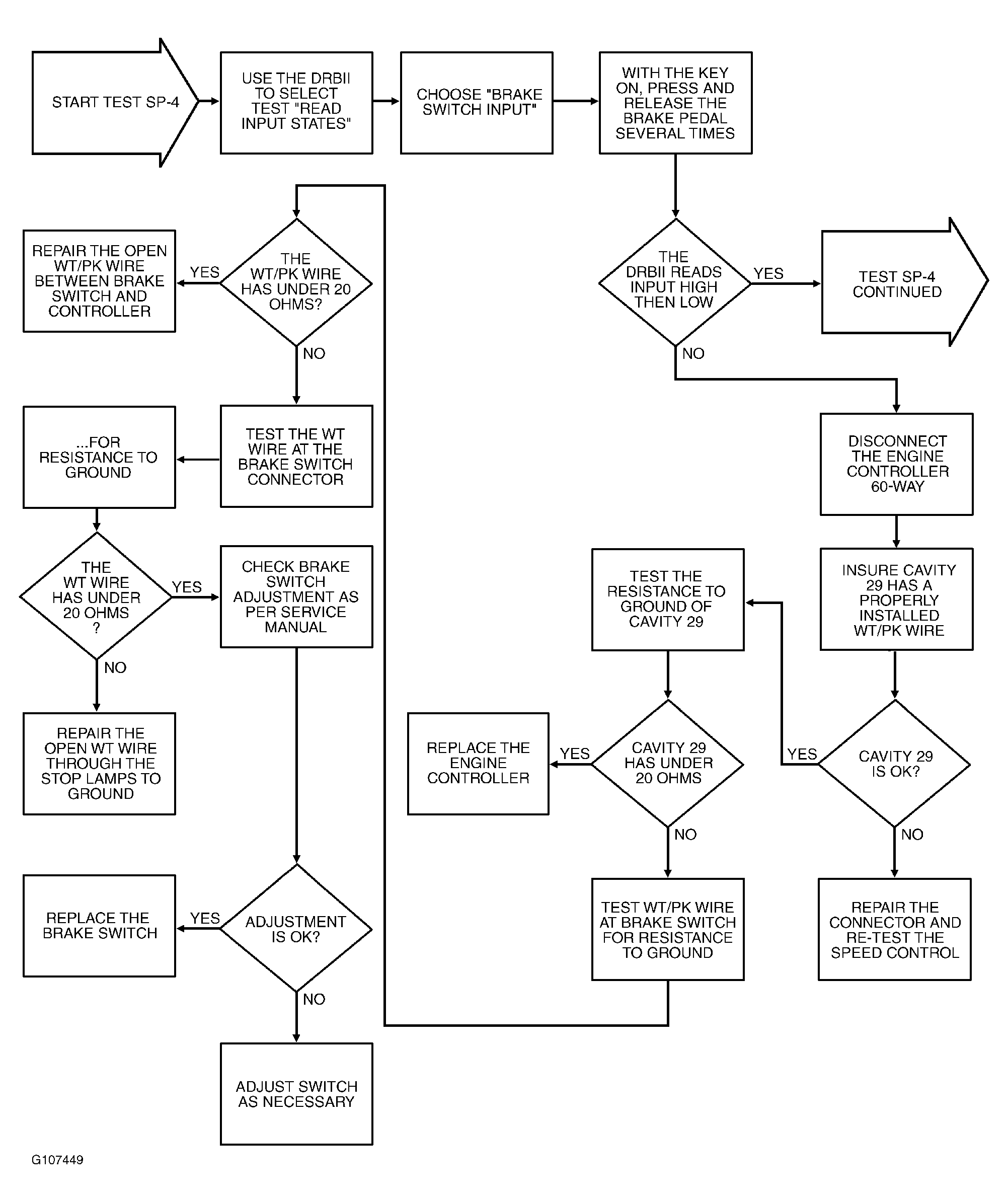

Fig 1: SP4 (1 of 4) - Testing Brake Switch Circuit
G107449

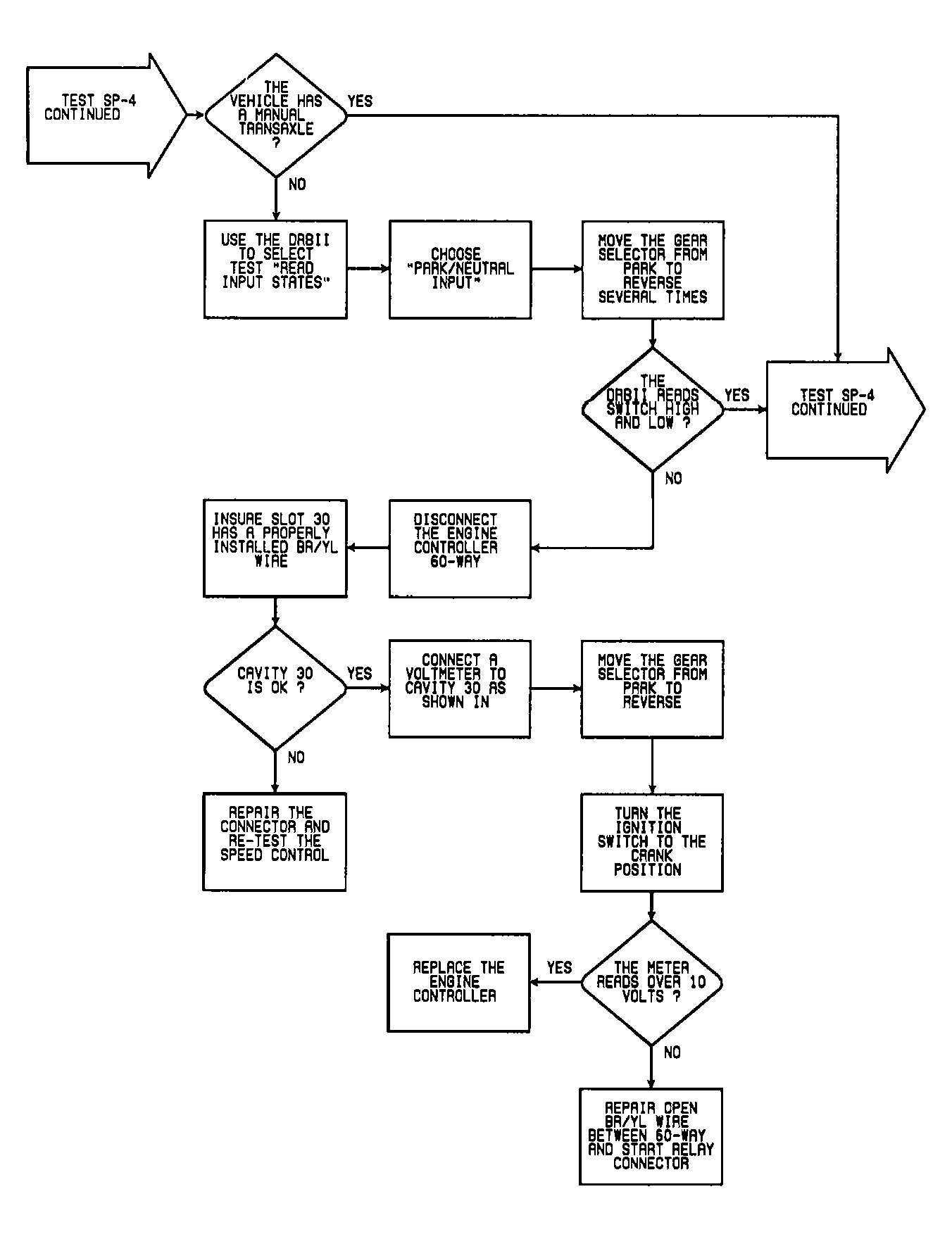

Fig 2: SP4 (2 of 4) - Testing Park/Neutral Input
G107450
Fig 3: SP4 (3 of 4) - Testing Brake Switch Circuit
G107451

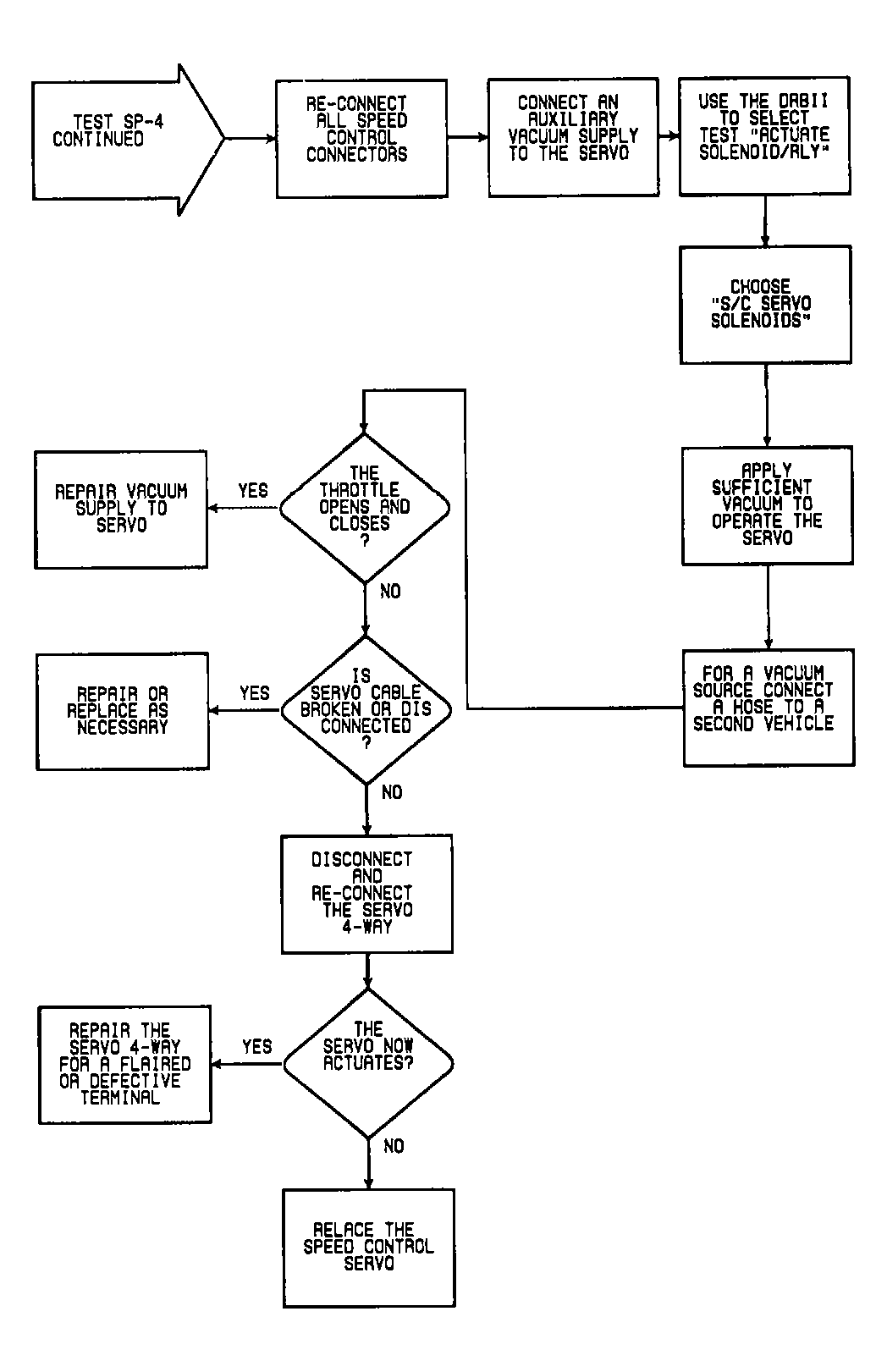

Fig 4: SP4 (4 of 4) - Testing Servo Actuator
G107452
