Dodge and Ram
>>
1989
>>
Caravan Base, 2.5 K, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
2.5L Turbo CEC Testing
>>
Speed Control Test Information
>>
SP6 - Testing "Resume" Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
SP6 - Testing "Resume" Switch

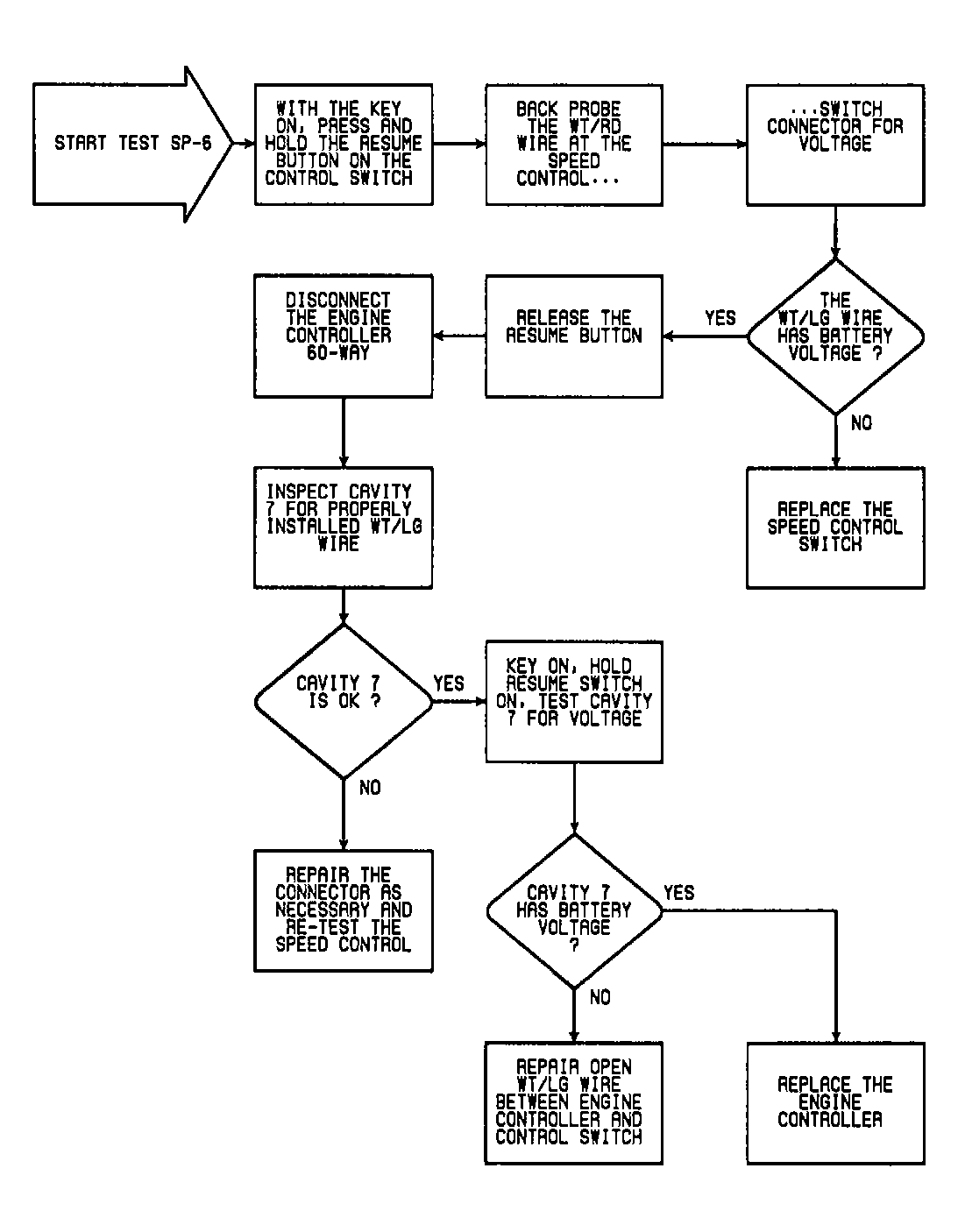

Fig 1: SP6 - Testing "RESUME" Switch
