2.5L Turbo Tests W/Codes: Operation: Schematic

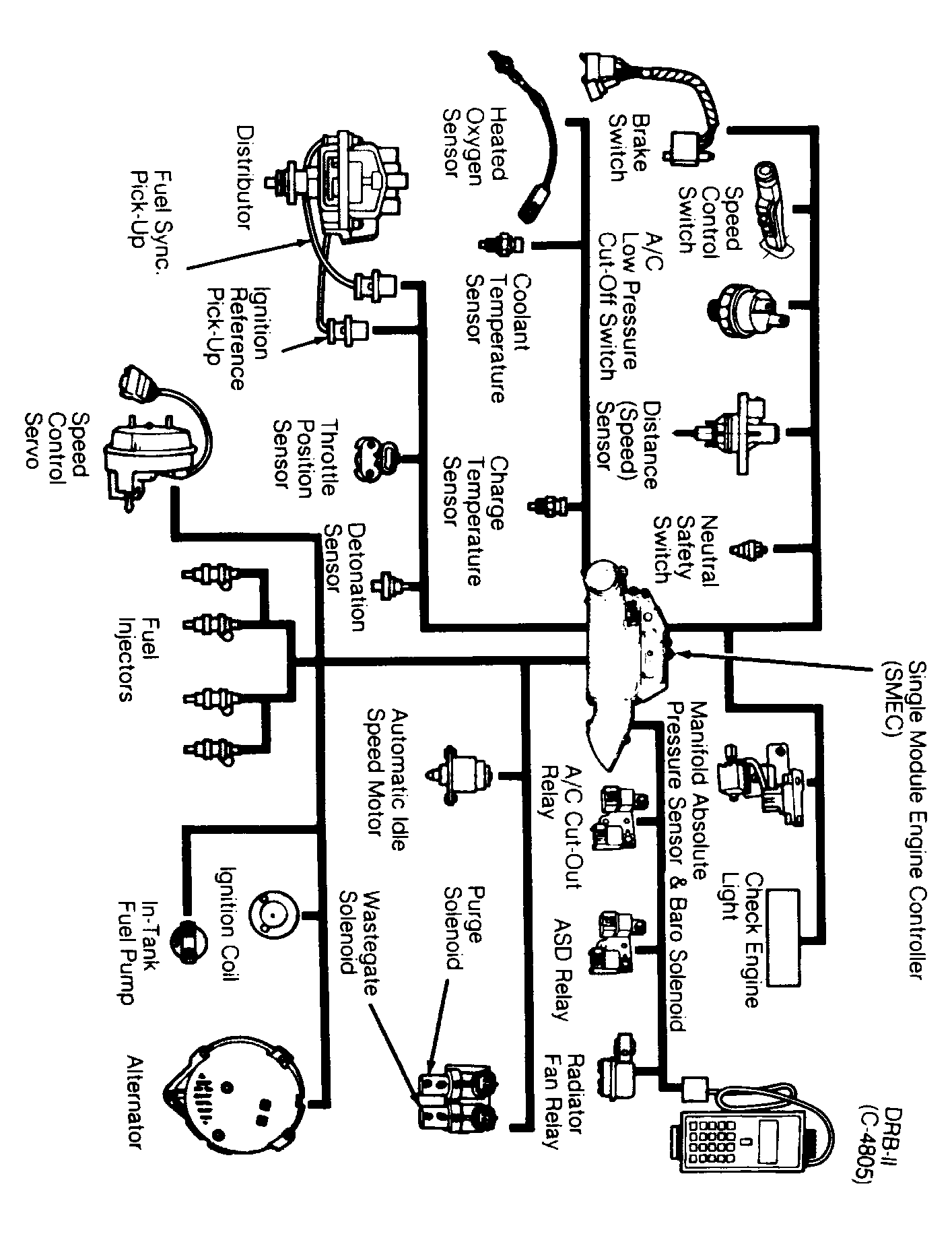

Fig 1: Schematic of SMEC, Input Sensors & Output Devices (MPFI Turbo I)
G107322Courtesy of CHRYSLER MOTORS.
