Test 71A - Testing Engine Controller For No Response

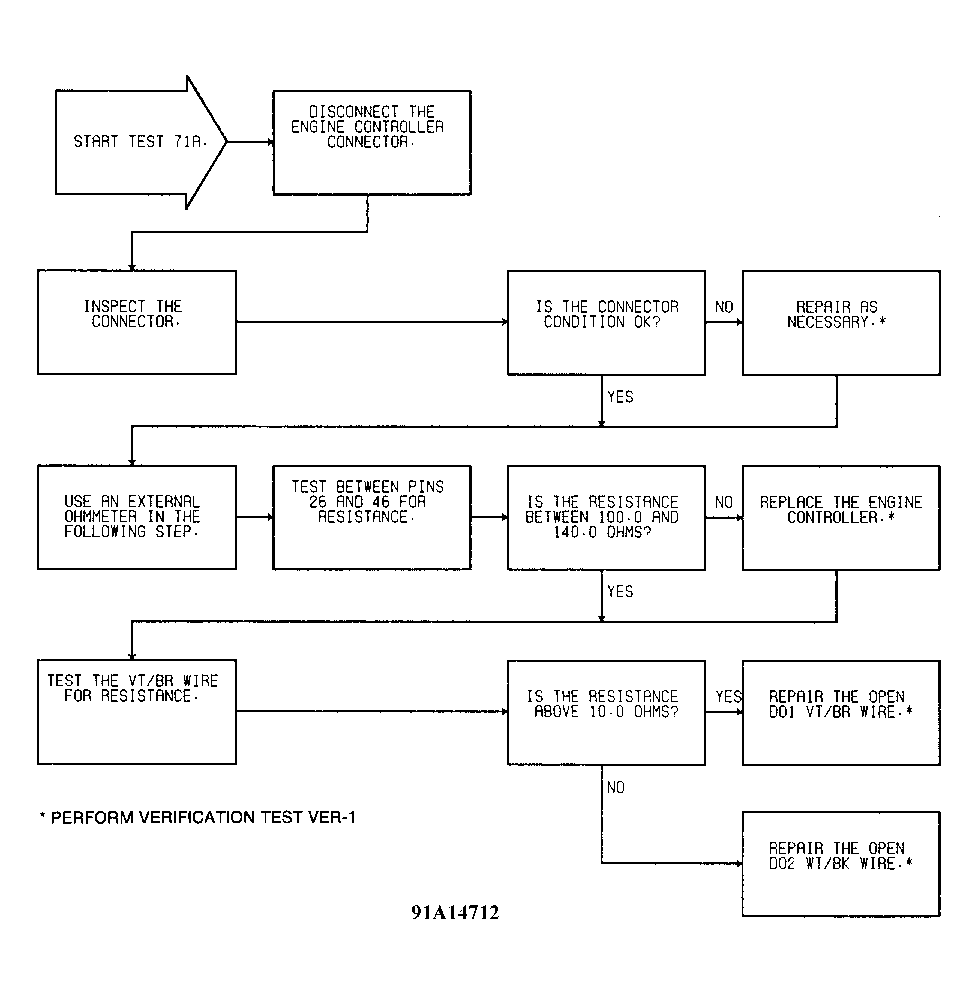

Fig 1: Test 71A - Testing Engine Controller For No Response

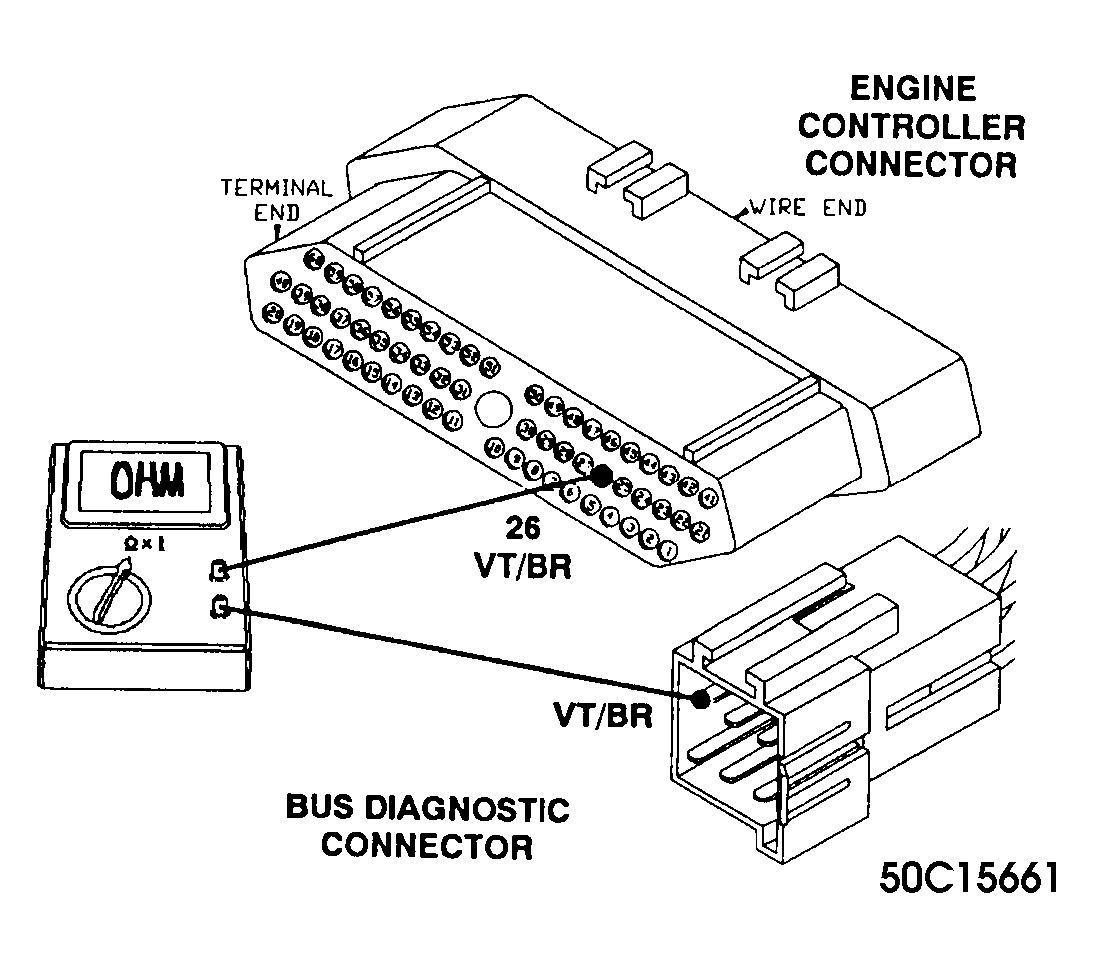

Fig 2: Test 71A - Engine Controller Connector (Testing VT/BR)
