Single Board Engine Controller (SBEC)

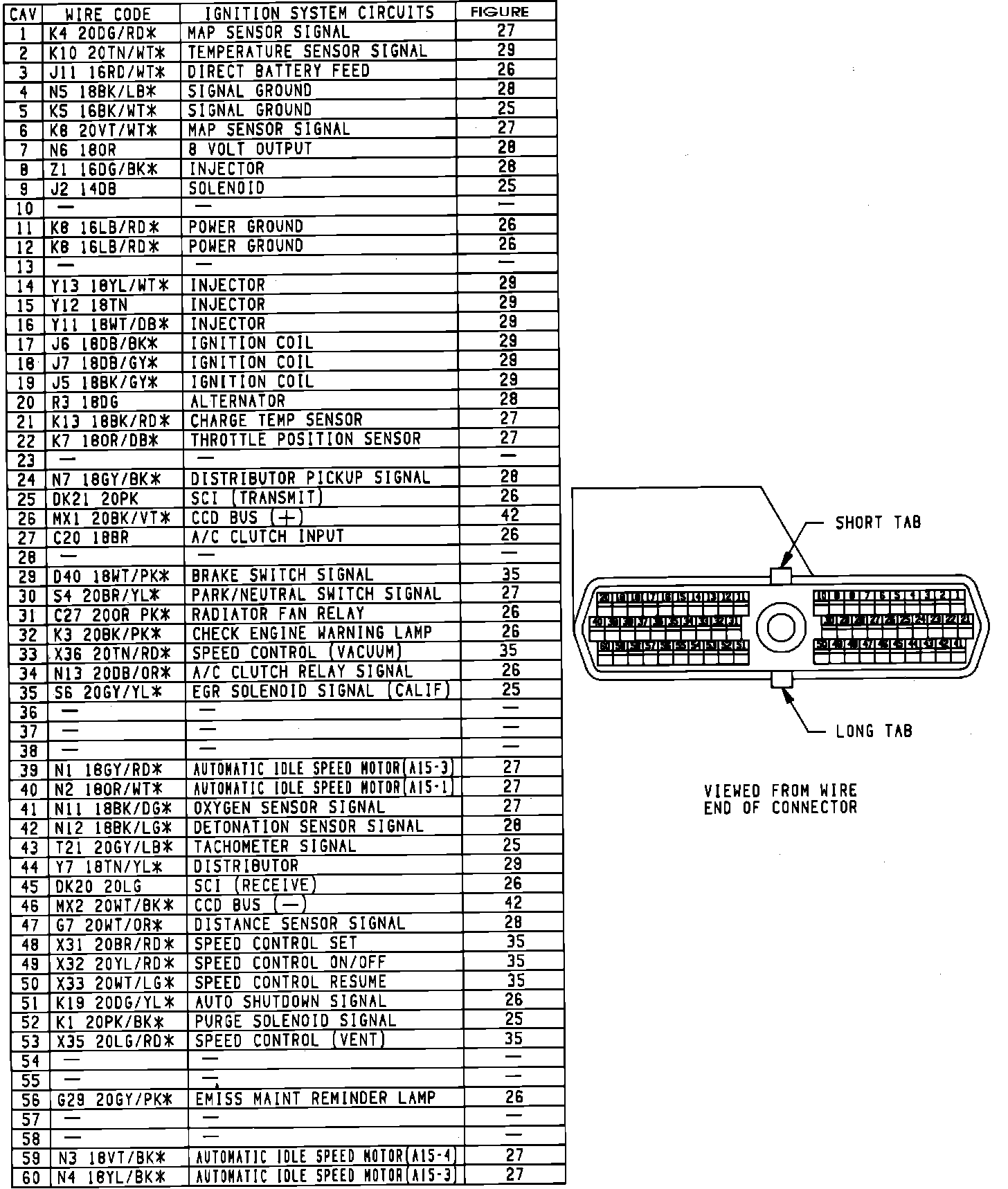

60-Way Connector Pinout Identification:

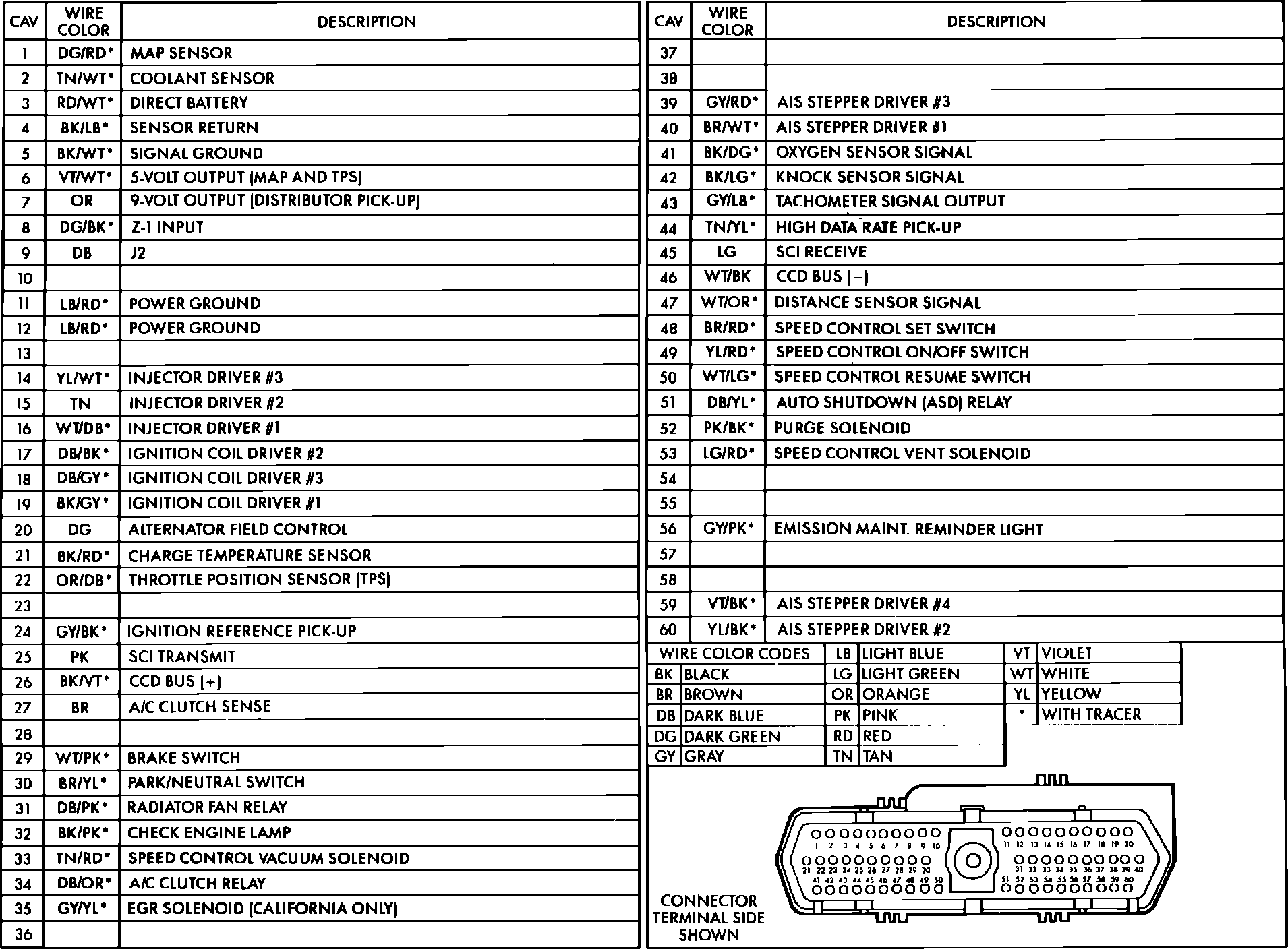

Single Board Engine Controller Connector:
