4 Speed A/T

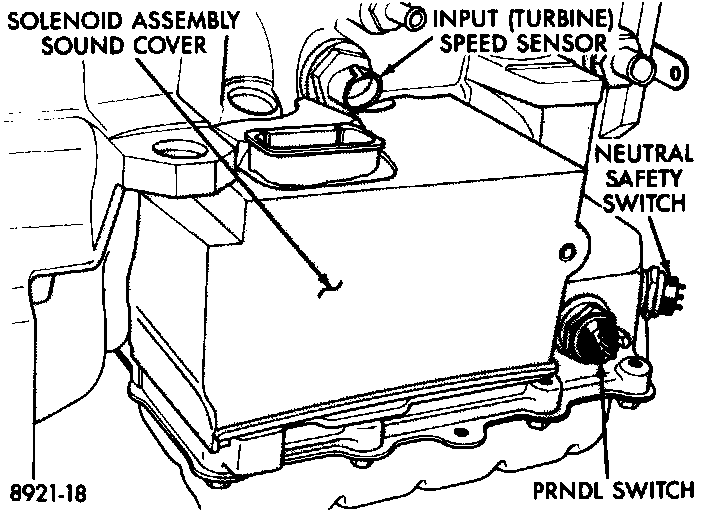

Sound Cover Installed:

PRNDL Switch:

This applies to the 4 speed electronic automatic transaxle.

The torque for the PRNDL switch is 34 Nm (25 ft. lbs.).
The thread size is M22 X 2.5

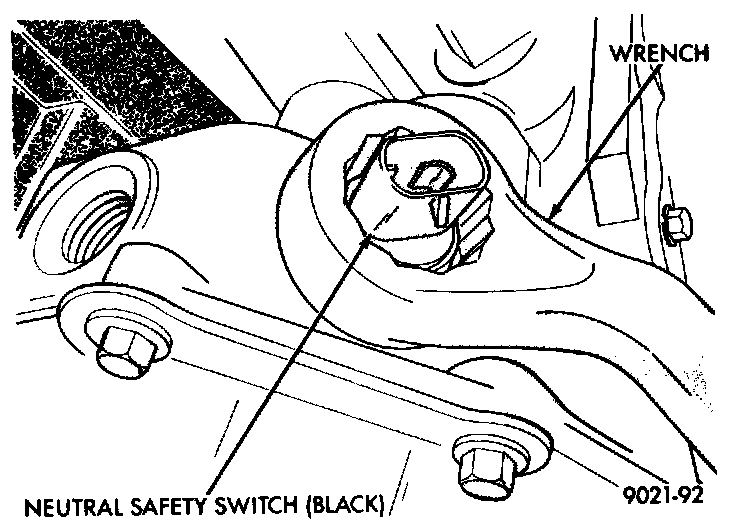

Neutral Safety Switch:

The torque for the Neutral Safety Switch is 34 Nm (25 ft. lbs.).
The thread size is 3/4 inch X 16

Caution: Switch Seal washer must be seated properly before tightening switch. Failure to do so may result in leakage of transmission fluid.
