Engine Controls - Tests W/Codes - Body Control Computer
>>
Trouble Shooting Charts
>>
Test 36B - Checking For Key In Lamp Circuit Short
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Test 36B - Checking For Key In Lamp Circuit Short

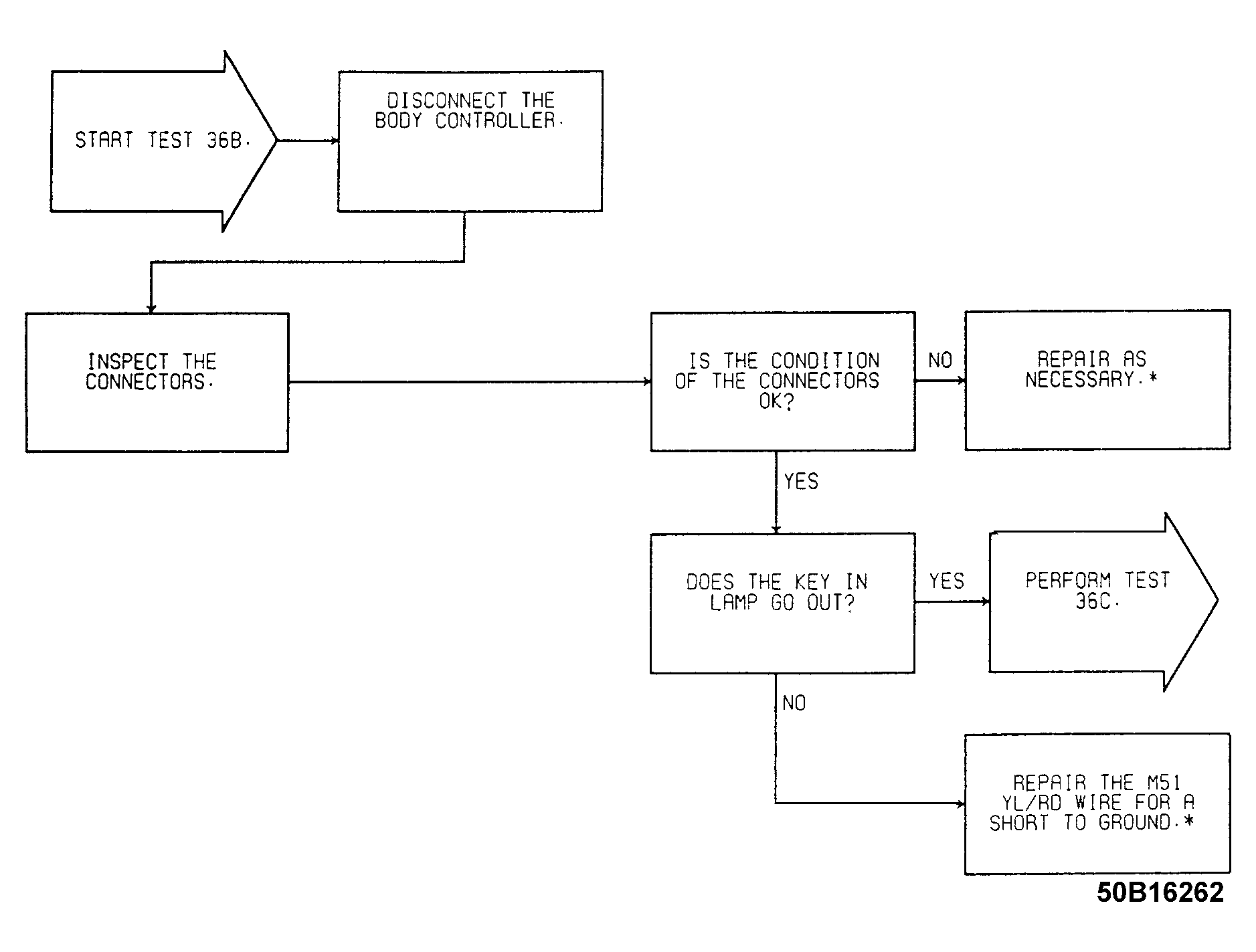

Fig 1: Test 36B Flow Chart - Checking For Key In Lamp Circuit Short
