Test 70C - Testing M01 Circuit

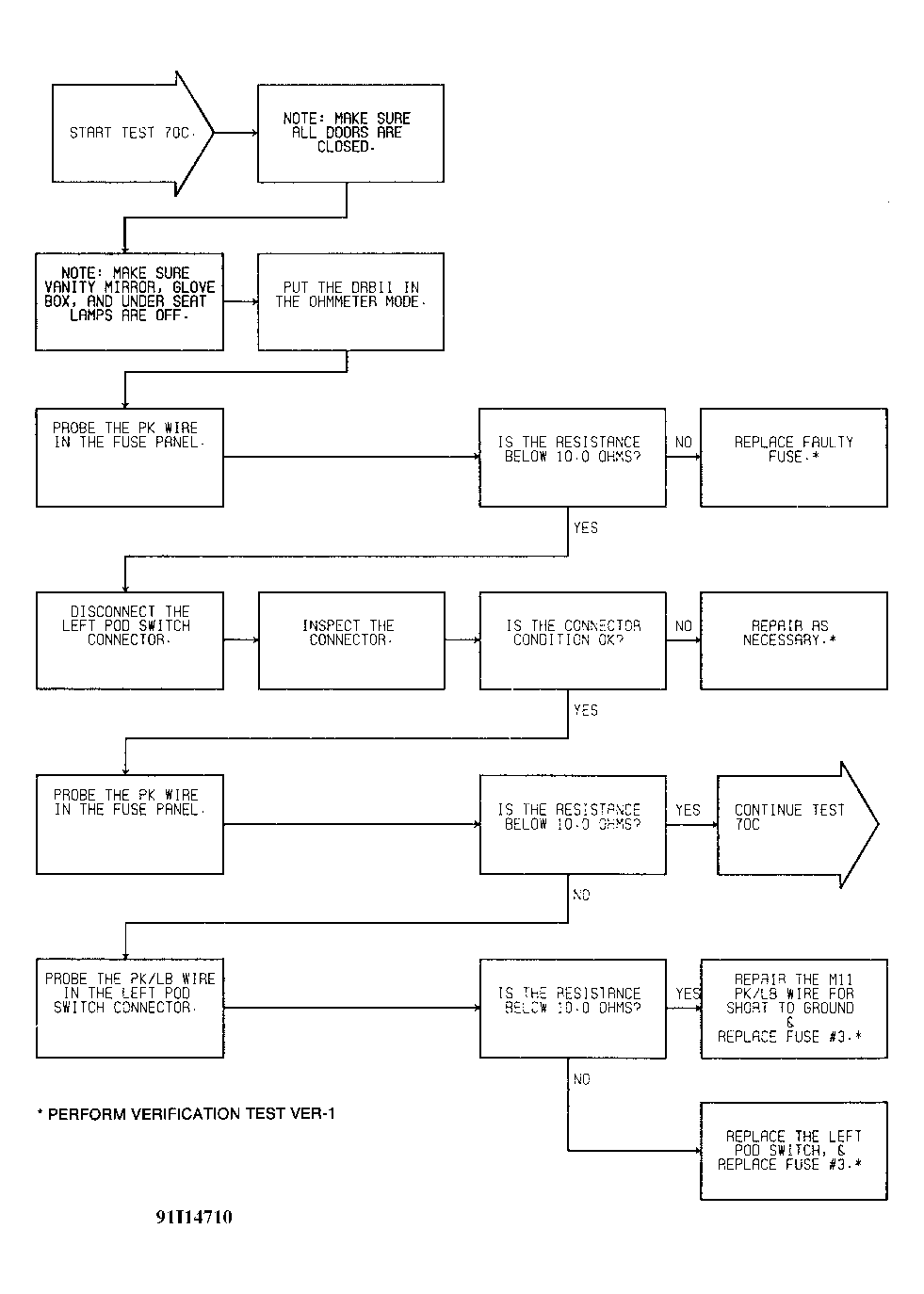

Fig 1: Test 70C (1 of 2) - Testing M01 Circuits

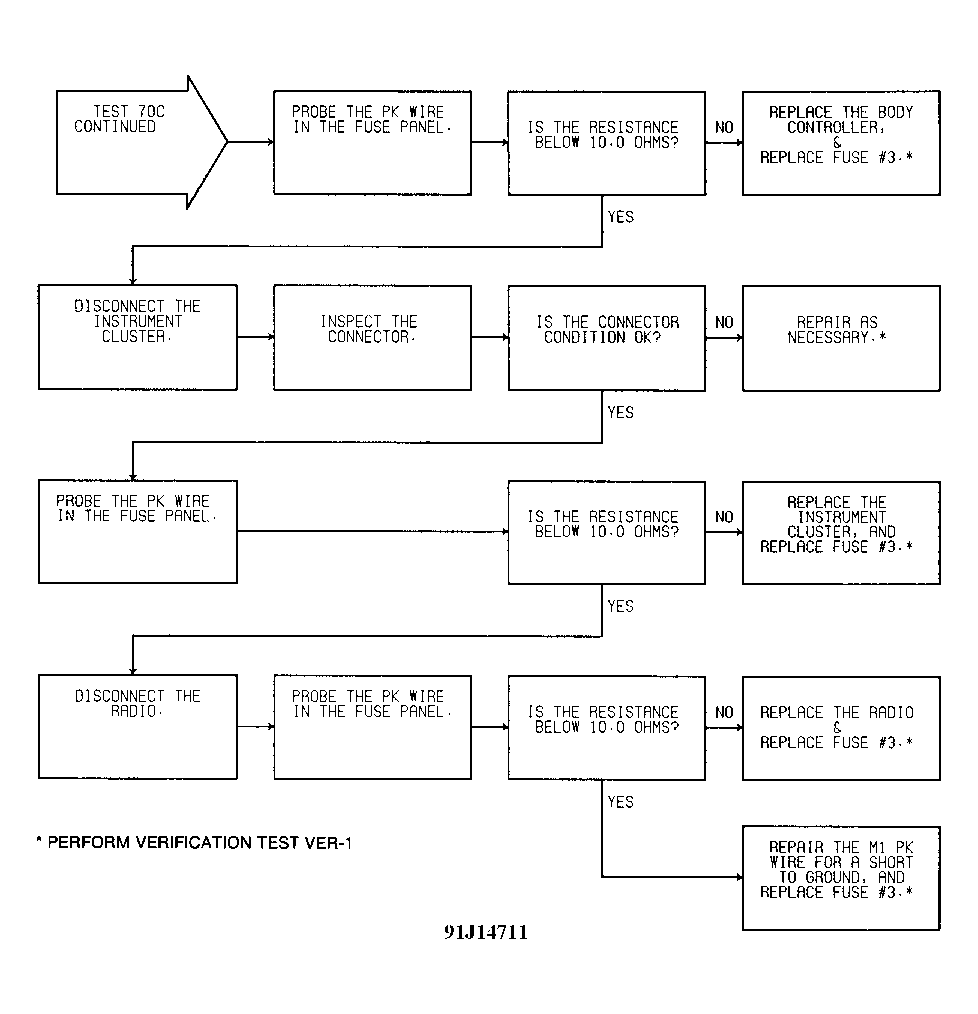

Fig 2: Test 70C (2 of 2) - Testing M01 Circuits
