Dr-16: No Fault Code Sensor Tests

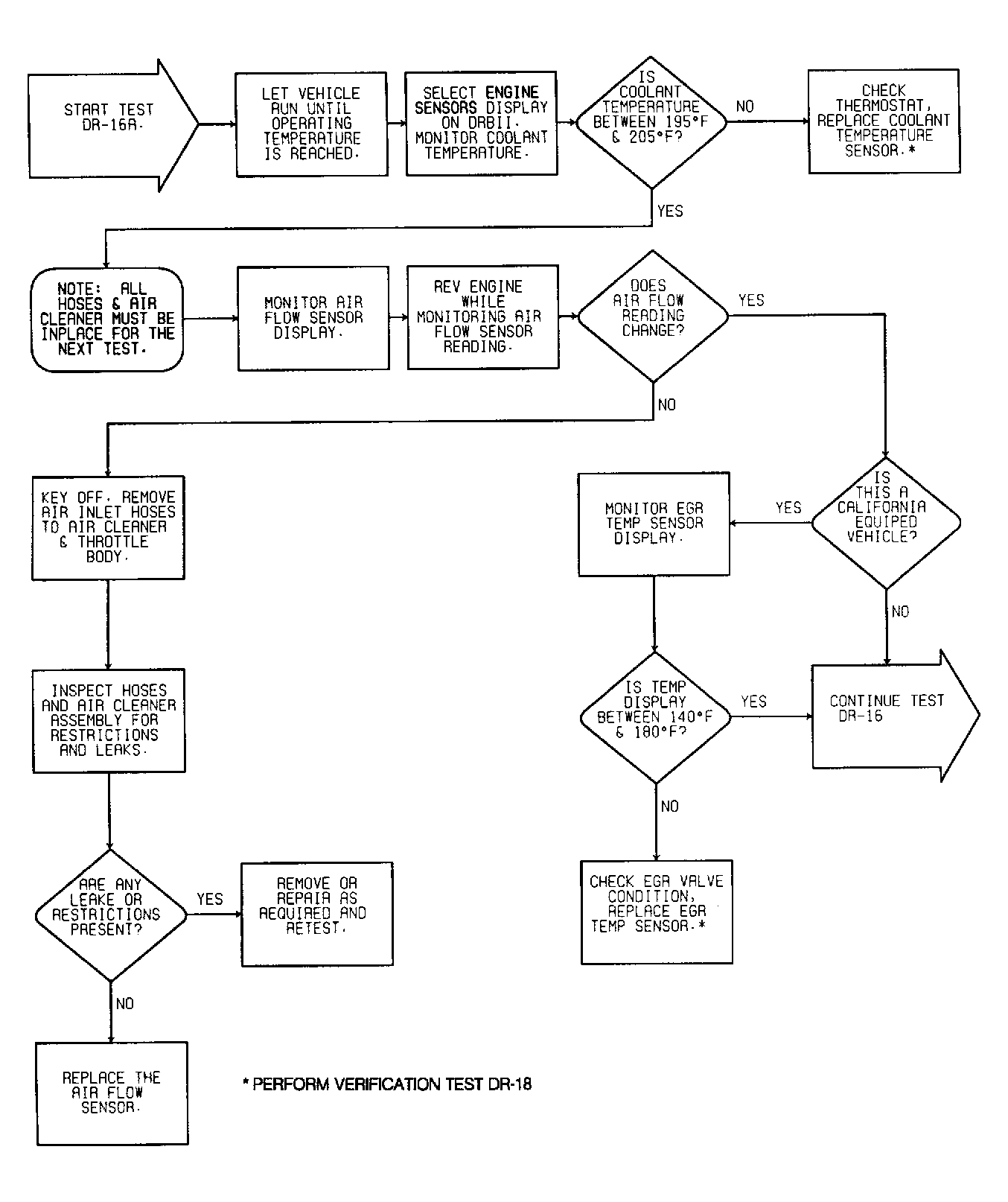

Fig 1: Test DR-16 Flow Chart (1 Of 5) No Fault Code Sensor Tests

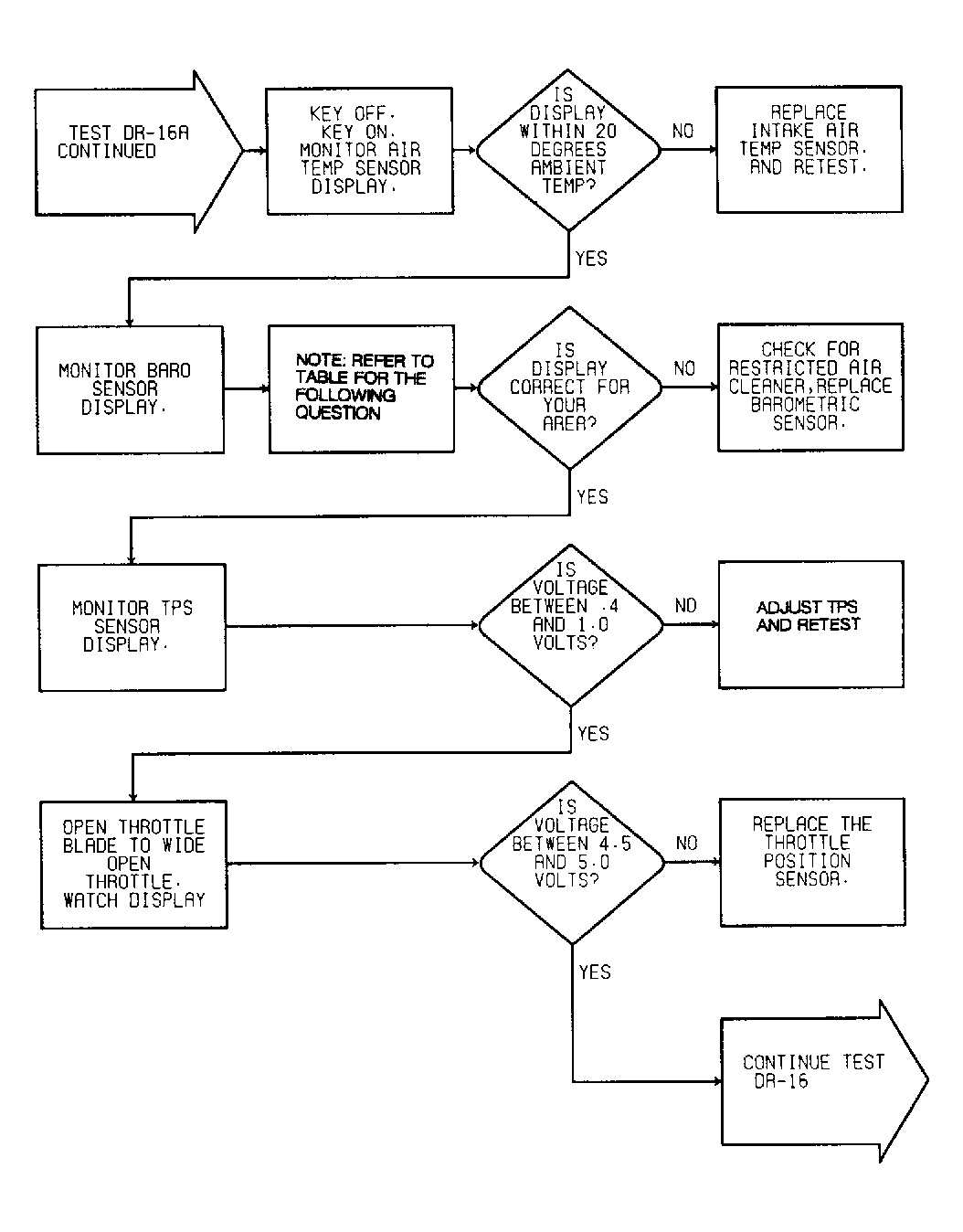

Fig 2: Test DR-16 Flow Chart (2 Of 5) No Fault Code Sensor Tests

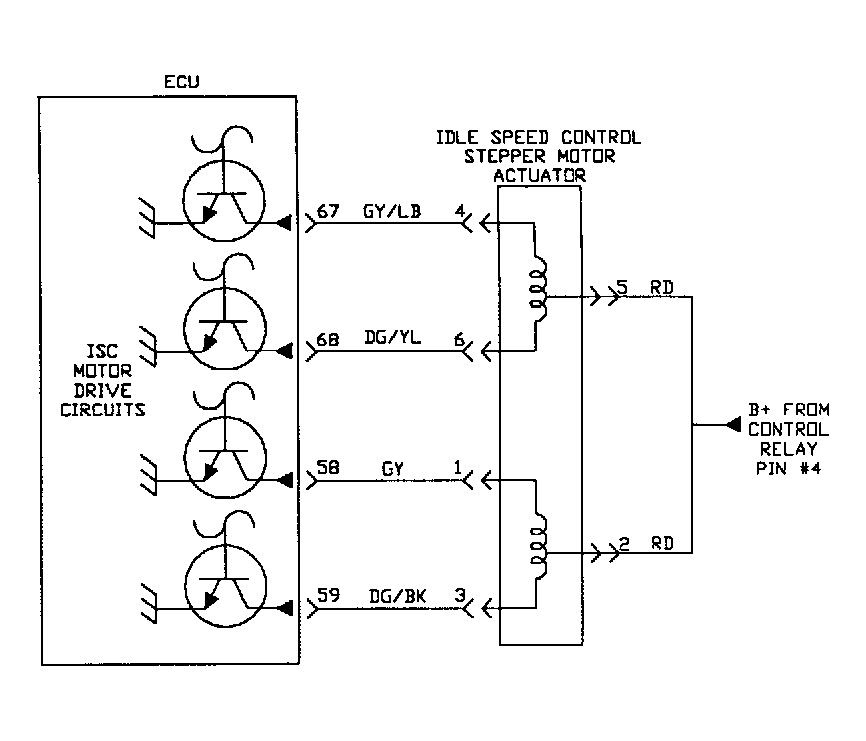

Fig 3: Test DR-16 Schematic (1 Of 2) No Fault Code Sensor Tests

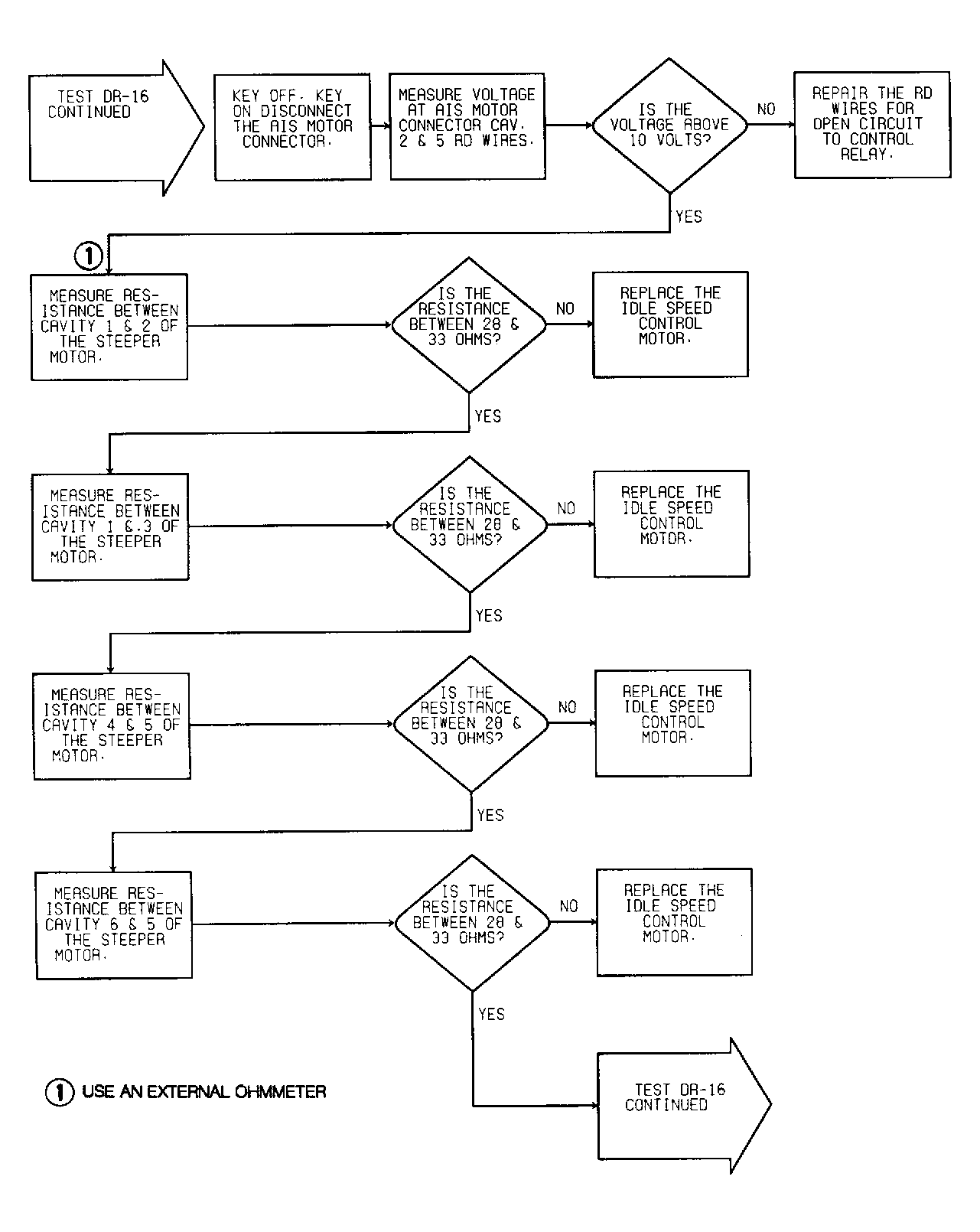

Fig 4: Test DR-16 Flow Chart (3 Of 5) No Fault Code Sensor Tests

Fig 5: Test DR-16 Schematic (2 Of 2) No Fault Code Sensor Tests

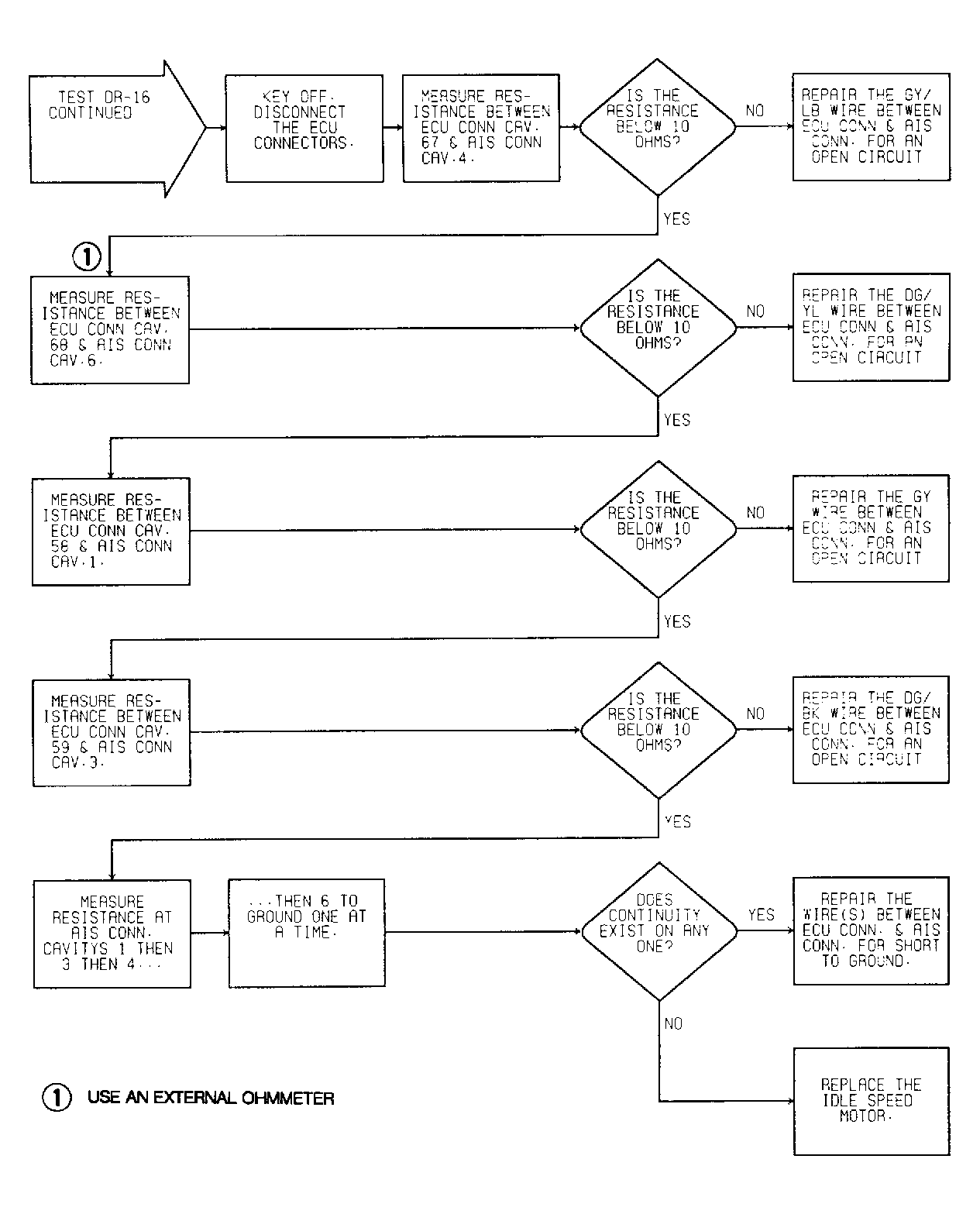

Fig 6: Test DR-16 Flow Chart (4 Of 5) No Fault Code Sensor Tests

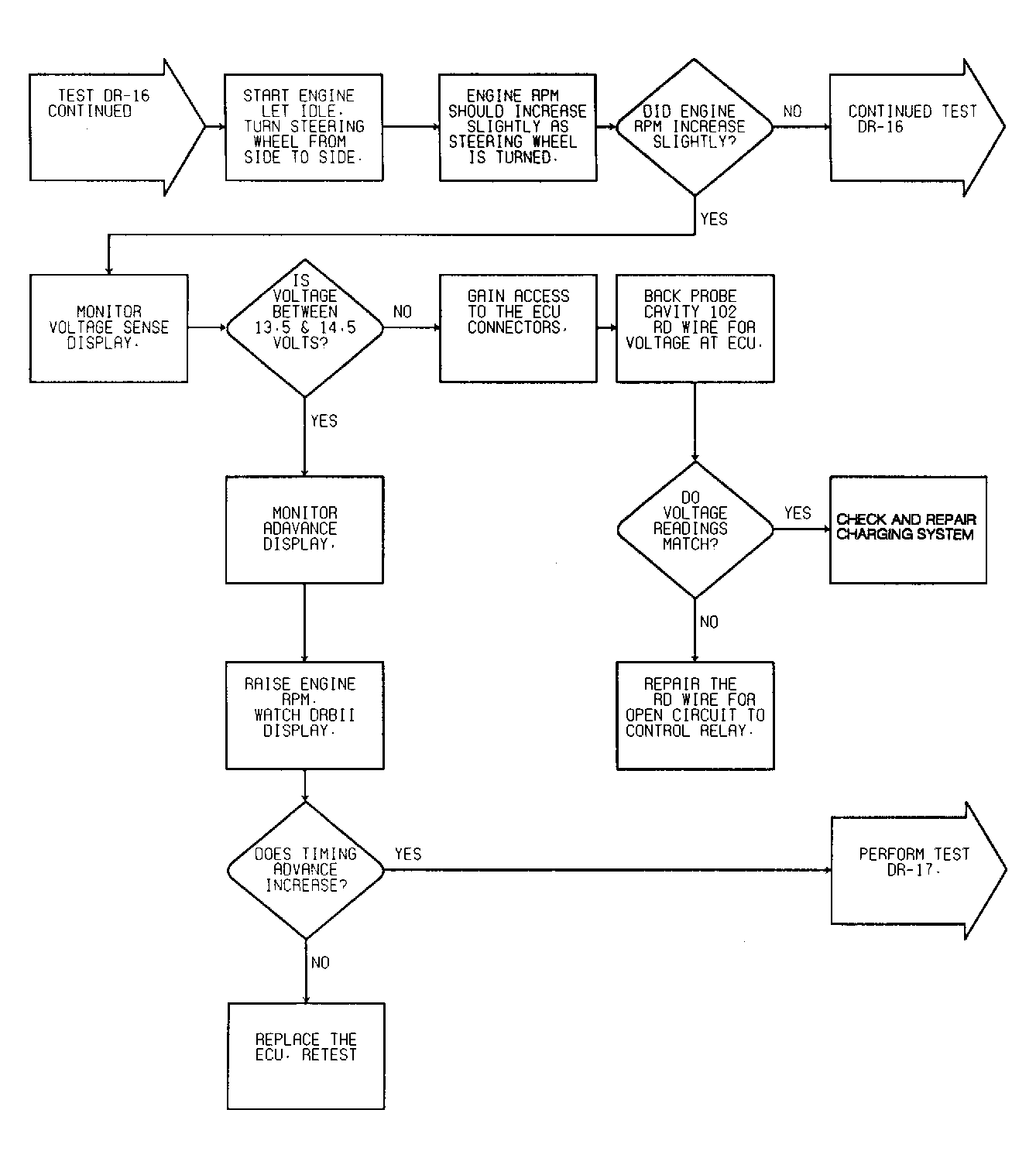

Fig 7: Test DR-16 Flow Chart (5 Of 5) No Fault Code Sensor Tests
