Connector Identification: Relays

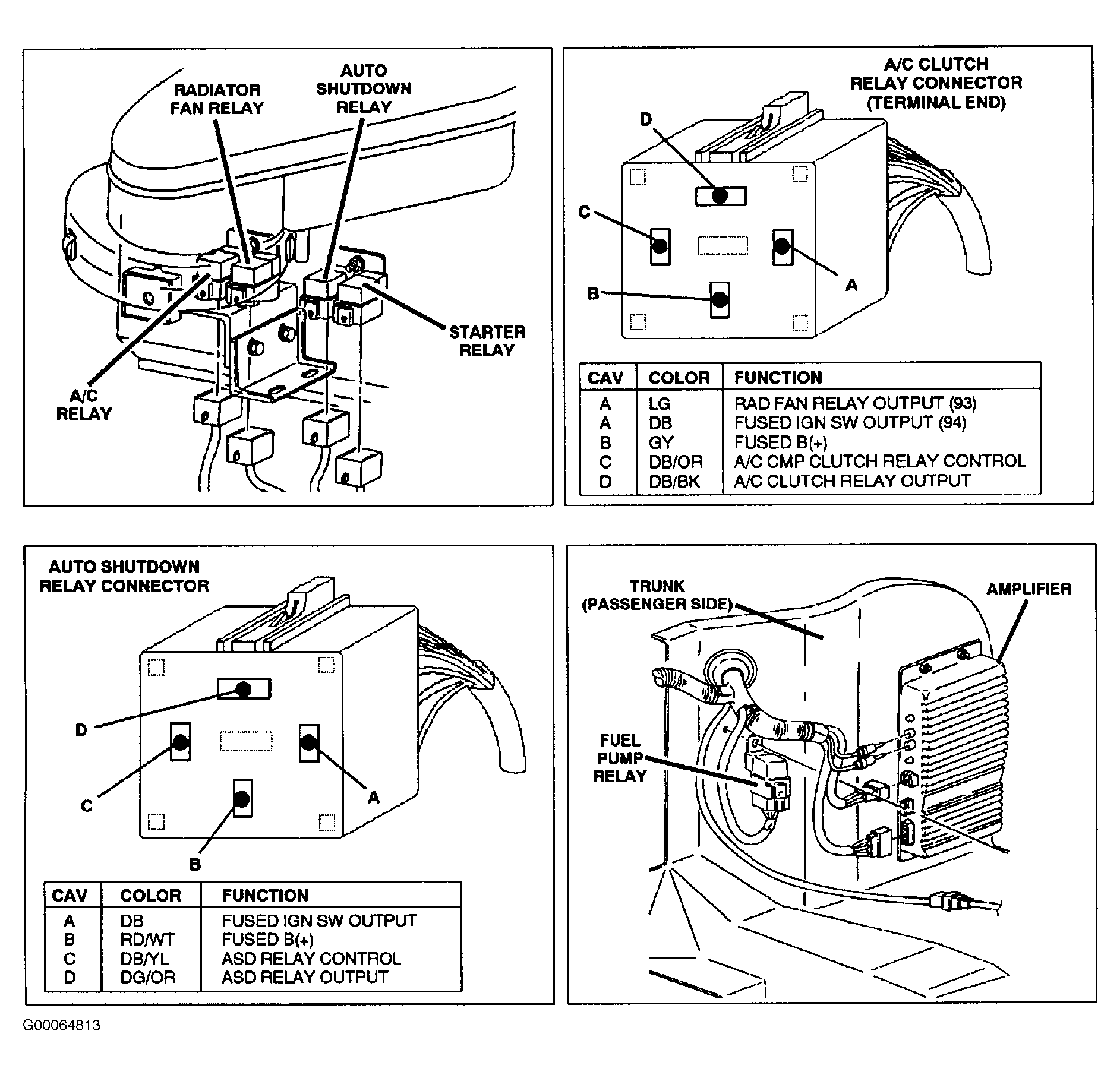

Fig 1: Relays (1 Of 2)
G00064813Courtesy of DAIMLERCHRYSLER CORPORATION

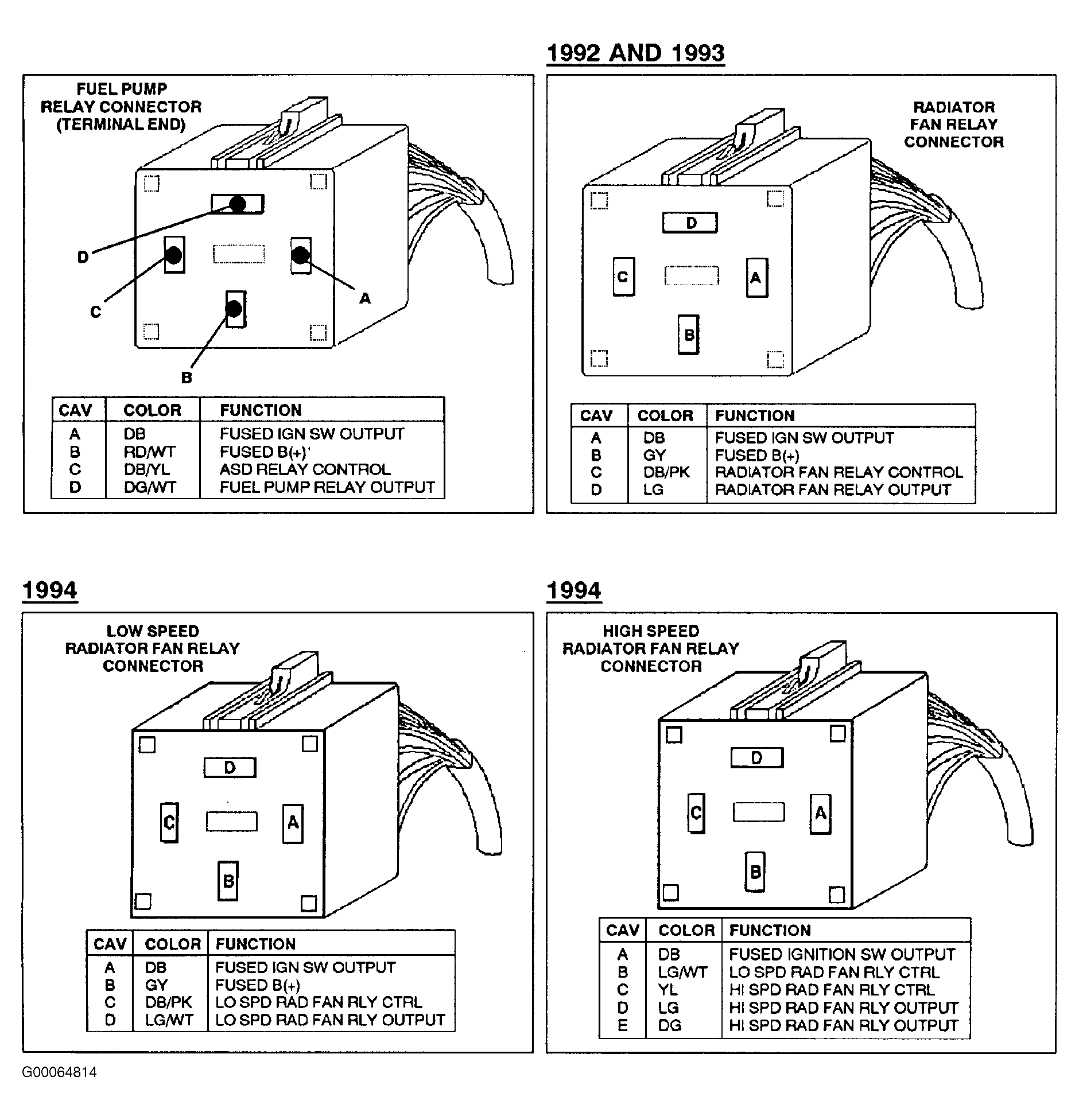

Fig 2: Relays (2 Of 2)
G00064814Courtesy of DAIMLERCHRYSLER CORPORATION
