NTC-5A: Checking TP Sensor Calibration

Fig 1: NTC-5A: Checking TP Sensor Calibration (1 Of 2)
G00065008Courtesy of DAIMLERCHRYSLER CORPORATION

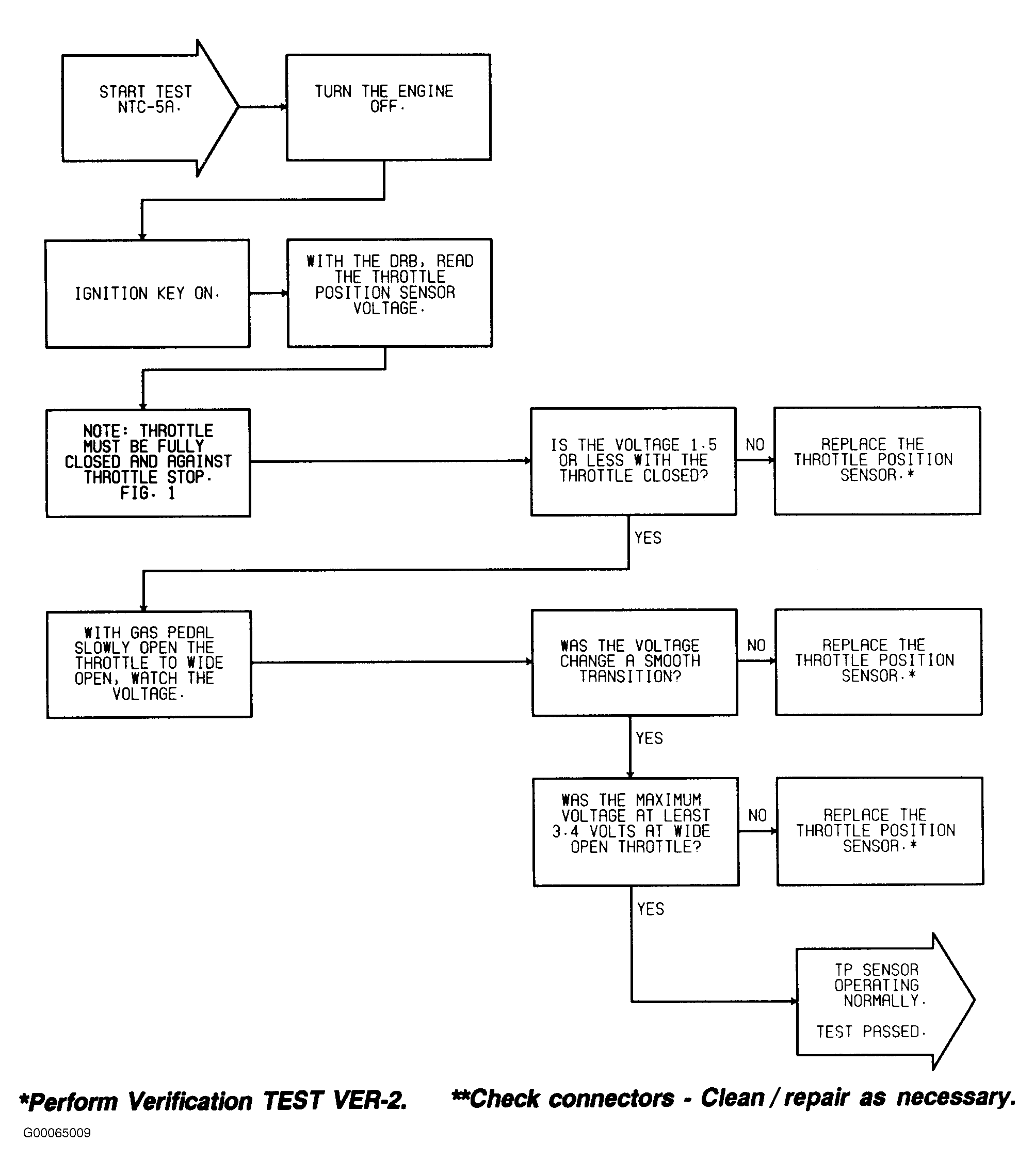

Fig 2: NTC-5A: Checking TP Sensor Calibration (2 Of 2)
G00065009Courtesy of DAIMLERCHRYSLER CORPORATION
