Cruise Control Switch: Testing and Inspection

1. Disconnect the blade type four wire electrical connector from base of steering column.
2. Using a continuity tester, or an ohmmeter, check for continuity at connector wires. Do not use a test light.

Fig. 108 Speed Control Continuity Chart:

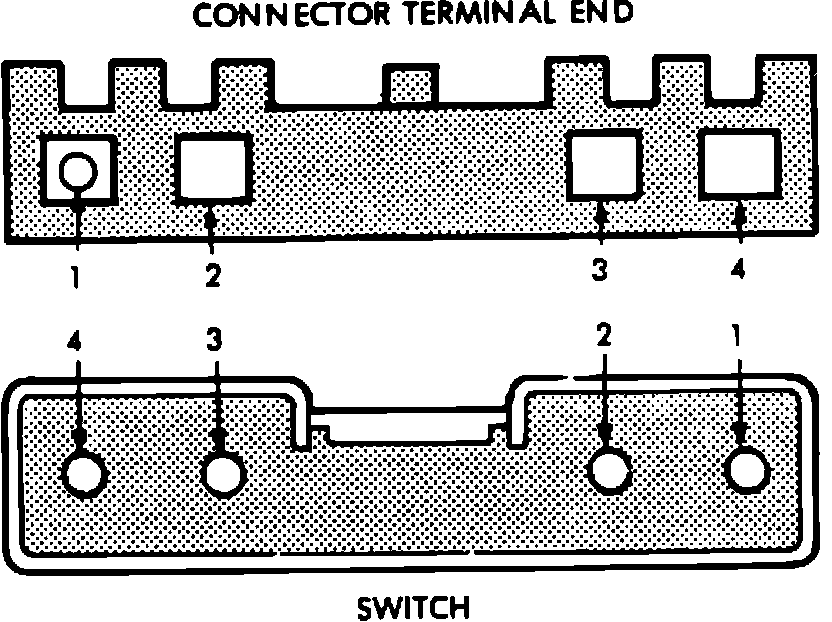

Fig. 8 Speed Control Connector Terminal Identification:

3. Results should be obtained according to the chart. If these results are not obtained, replace switch.
