Dodge and Ram
>>
1994
>>
Caravan V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trip Computer
>>
Overhead Console Connector
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

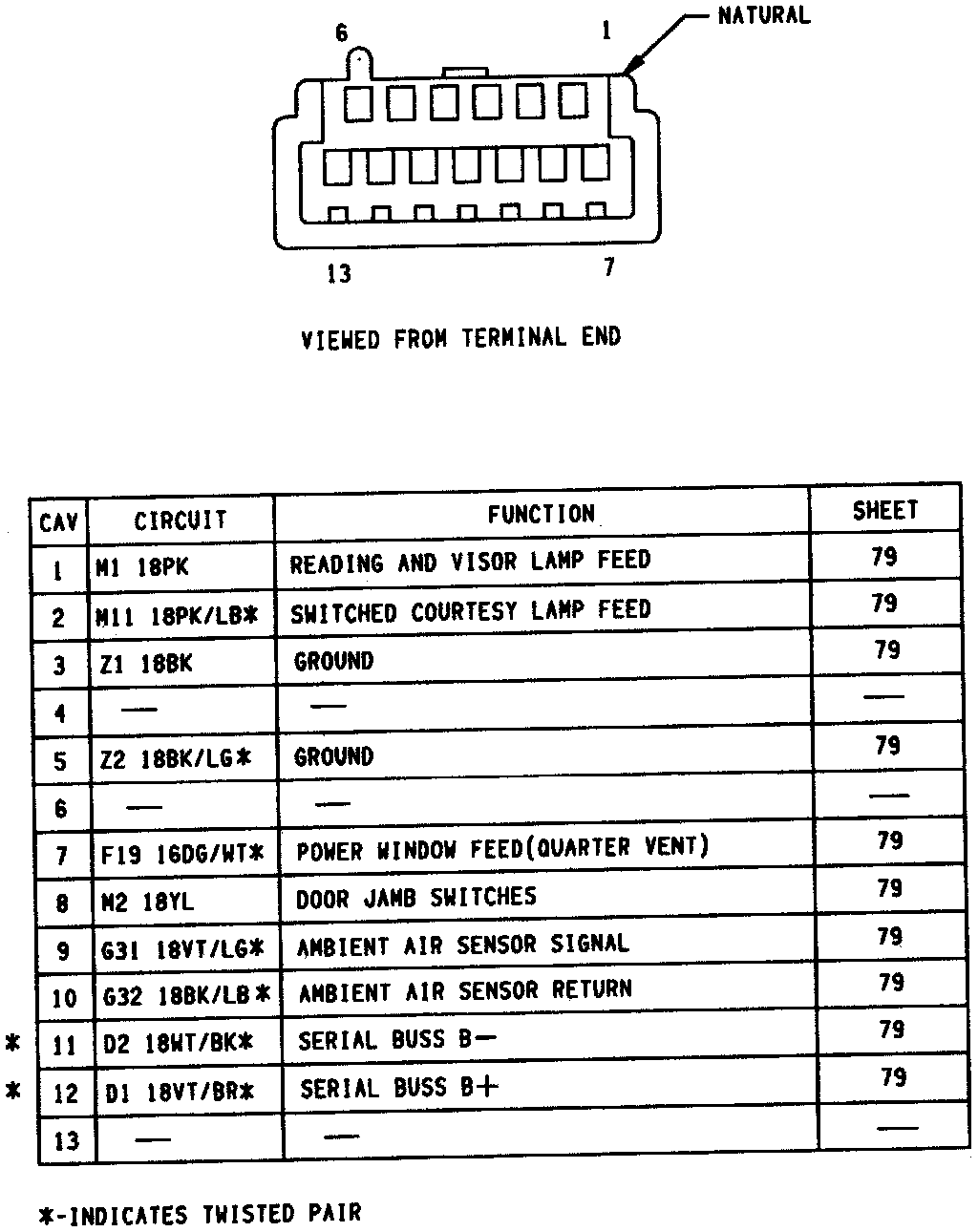

Overhead Console Connector
Overhead Console Connector:
