Manifold Pressure/Vacuum Sensor: Service and Repair

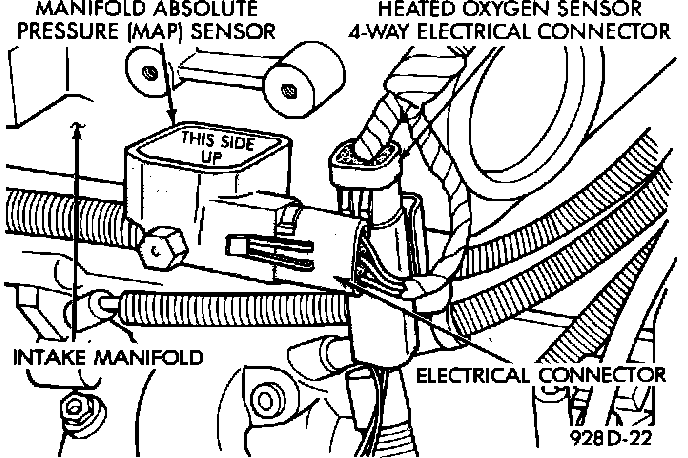

MAP" Sensor:

Removal

1. Disconnect vacuum hose and electrical connector from sensor.
2. Remove sensor mounting screws and remove sensor.

Installation

1. Install sensor and tighten screws.
2. Connect vacuum hose and electrical connector from sensor.
