Throttle Position Sensor: Service and Repair

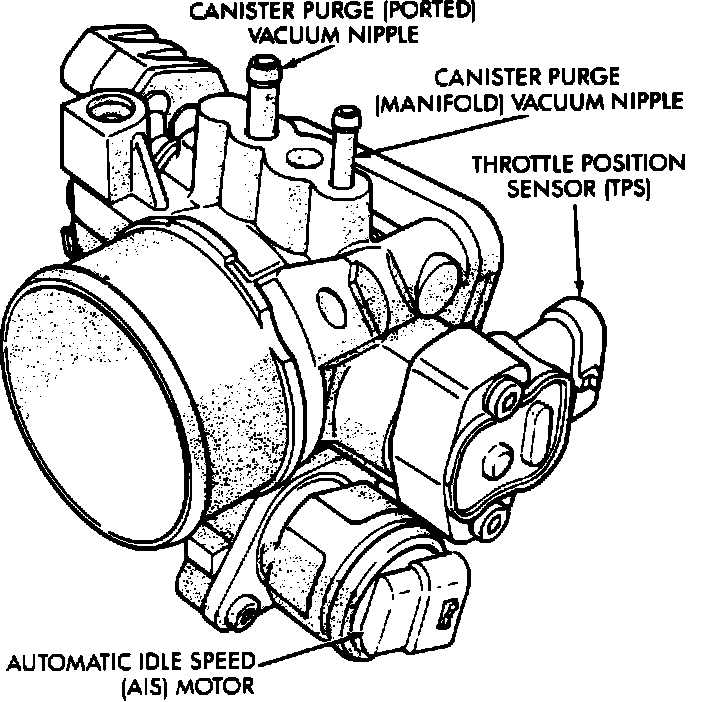

Throttle Position Sensor (TPS)/Automatic Idle Speed (AIS) Motor:

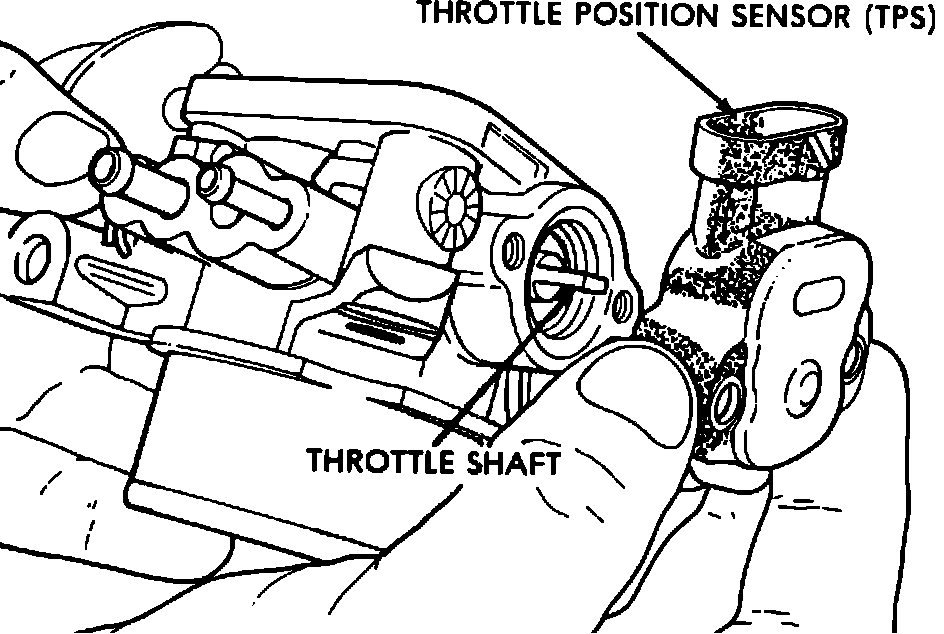

Throttle Position Sensor Removed:

Removal

1. Disconnect the negative battery cable.
2. Disconnect the Throttle Position Sensor (TPS) wiring connector.
3. Remove the mounting screws (2), and remove the TPS from the throttle shaft.

Installation

1. Install the new TPS on the throttle shaft and install screws, torqueing them to 17 in-lbs (2 Nm).
2. Connect the TPS wiring connector.
3. Connect the negative battery cable.
