Engine Sensors

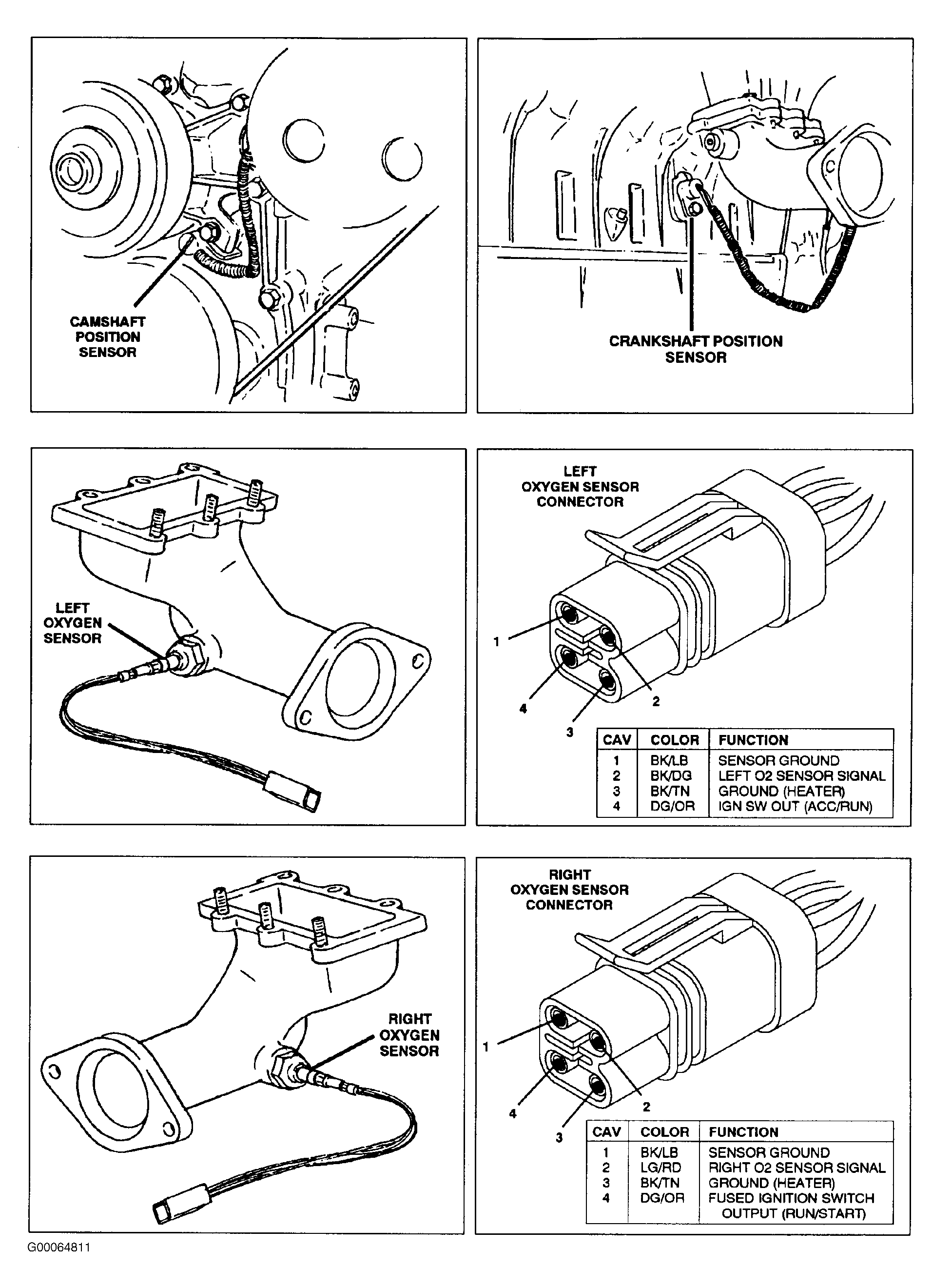

Fig 1: Engine Sensors (1 Of 2)
G00064811Courtesy of DAIMLERCHRYSLER CORPORATION

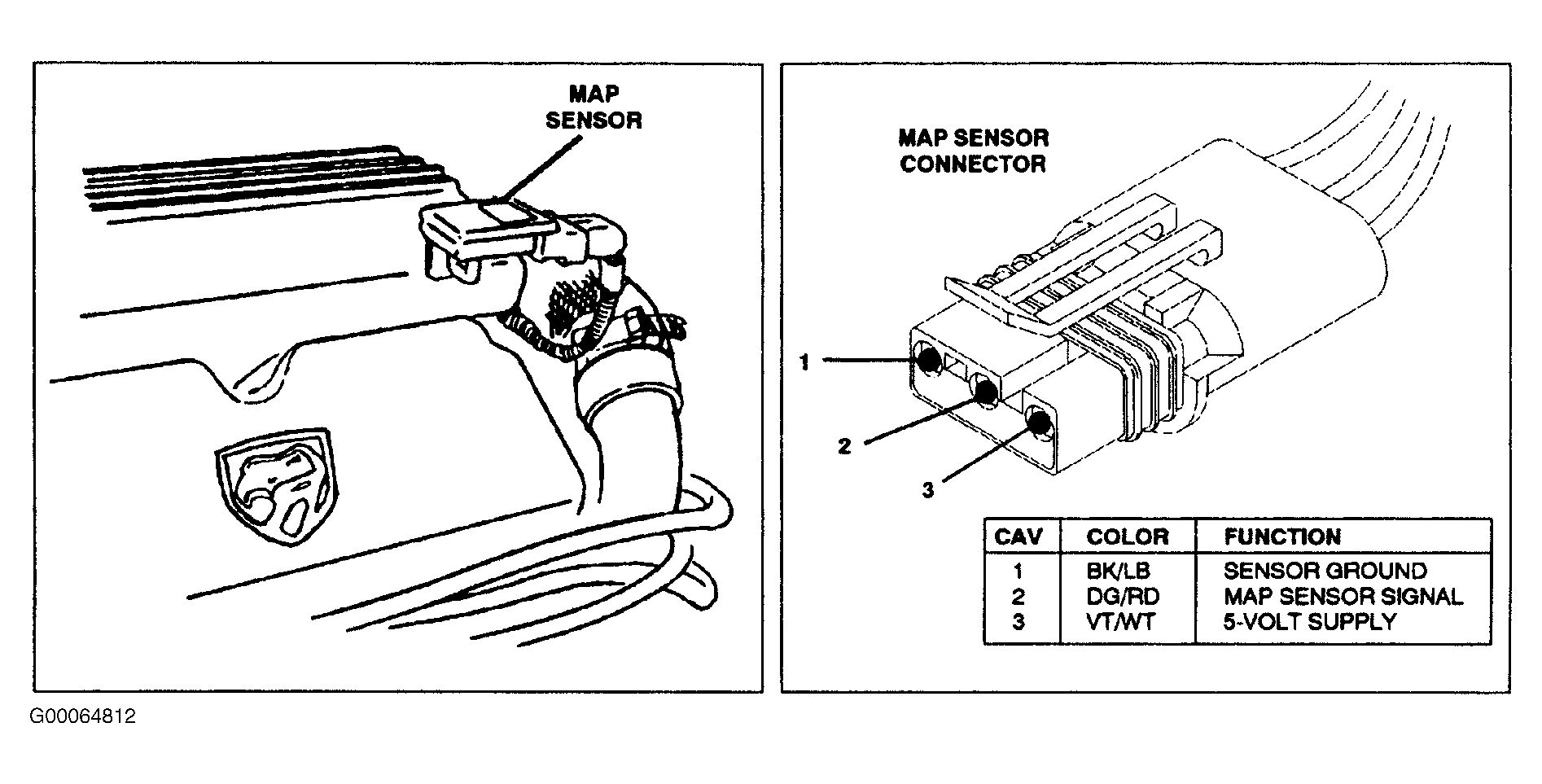

Fig 2: Engine Sensors (2 Of 2)
G00064812Courtesy of DAIMLERCHRYSLER CORPORATION
