Powertrain Control Module

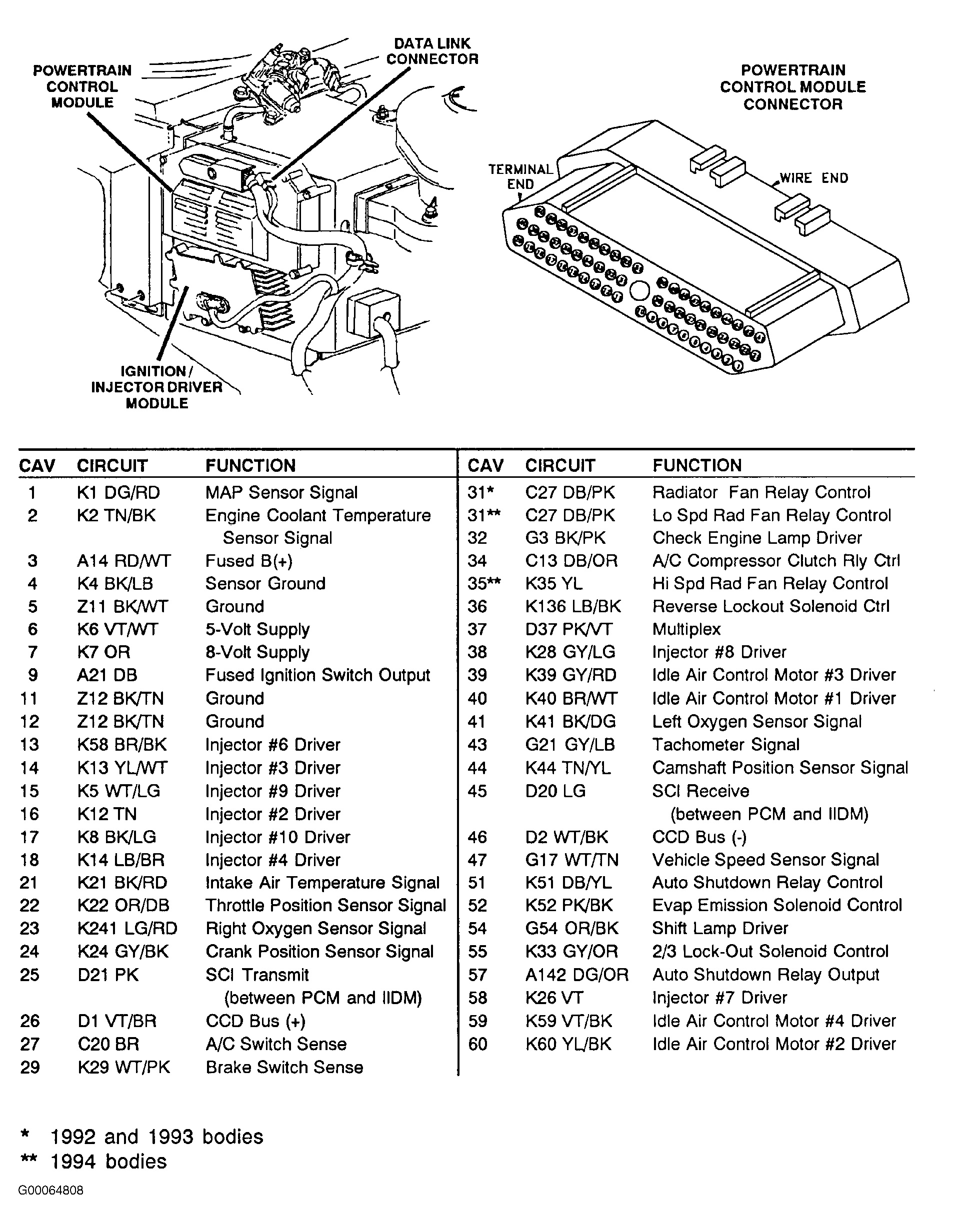

Fig 1: Powertrain Control Module
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
