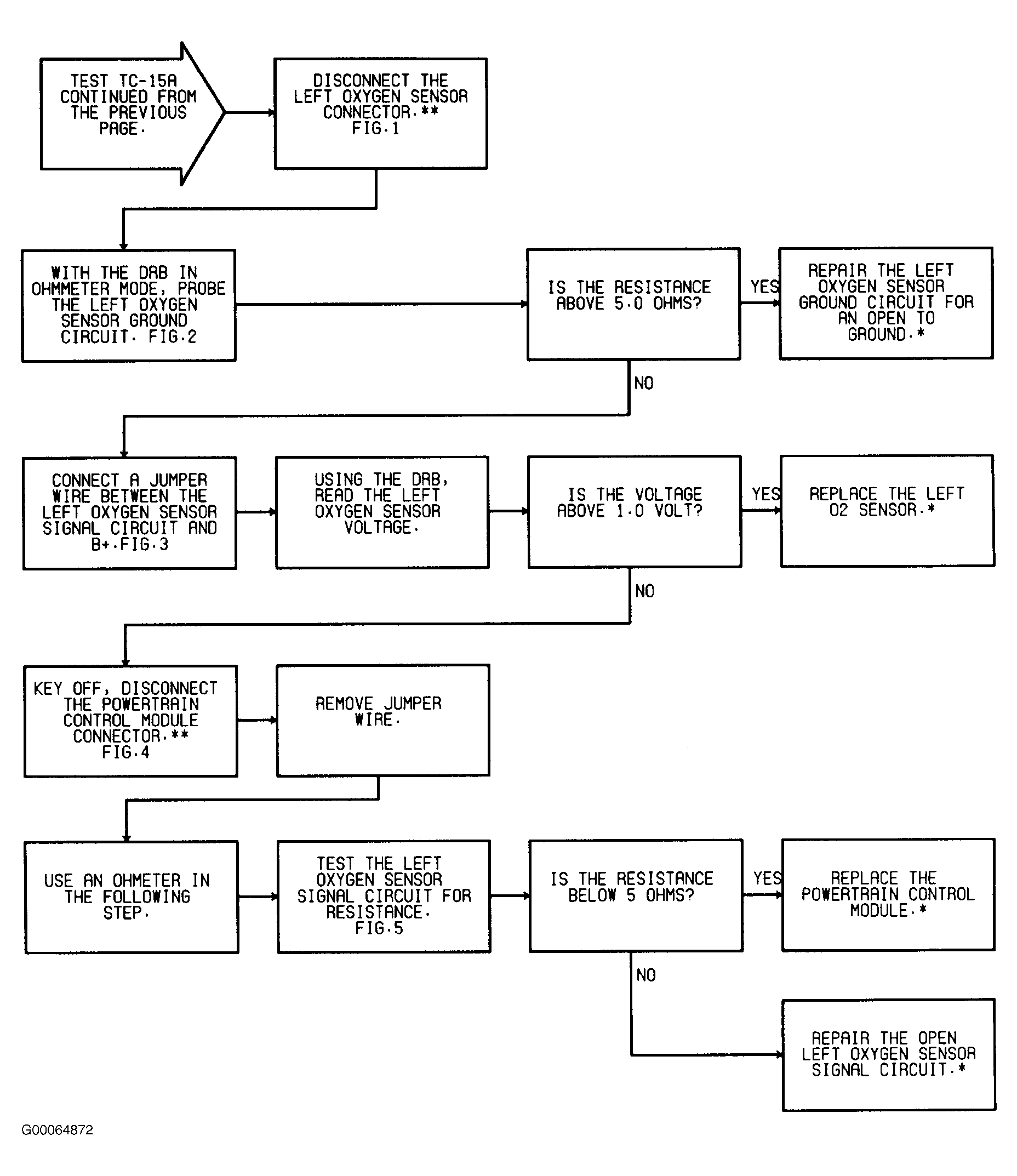

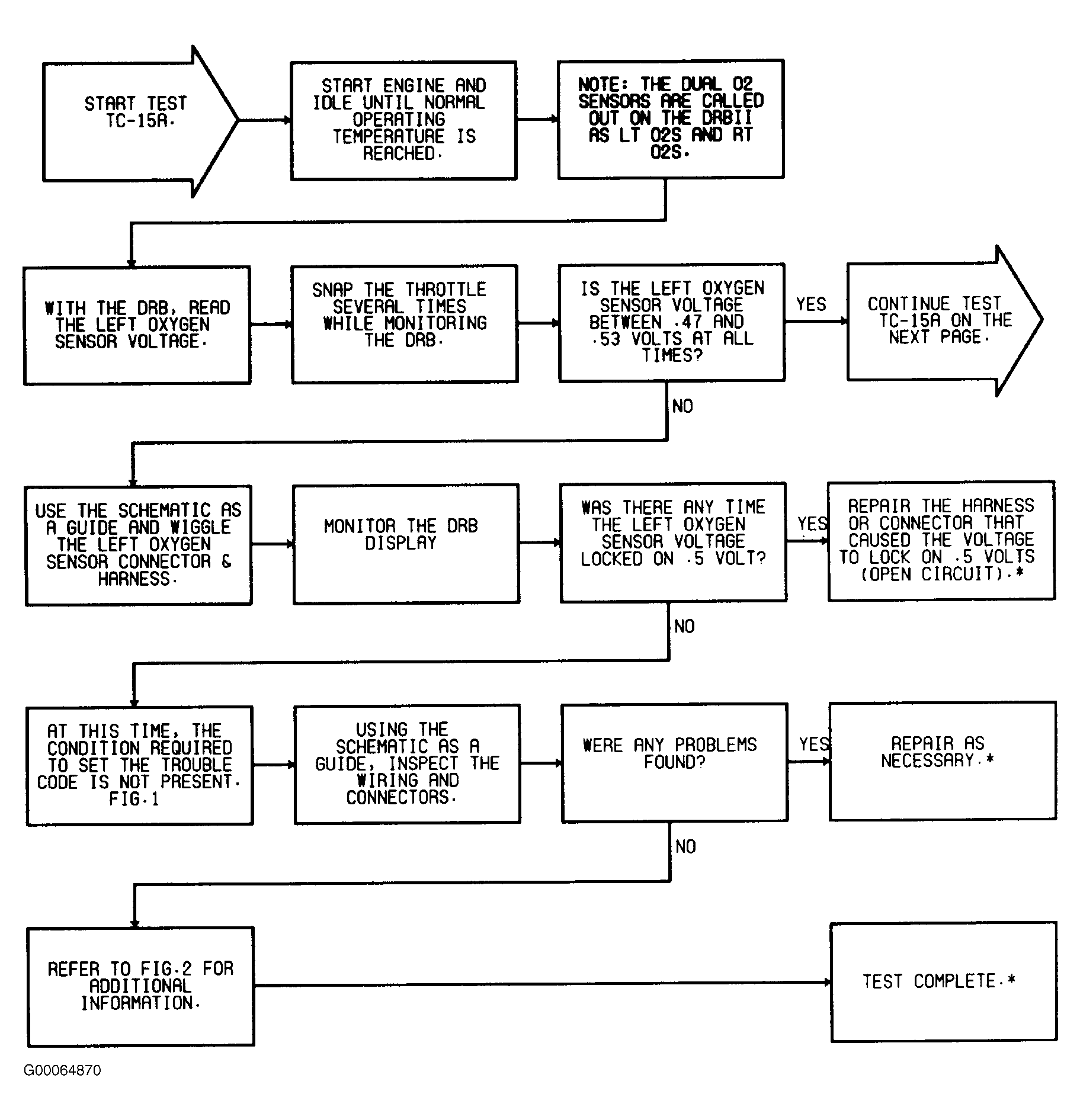

TC-15A: Left O2S At Center

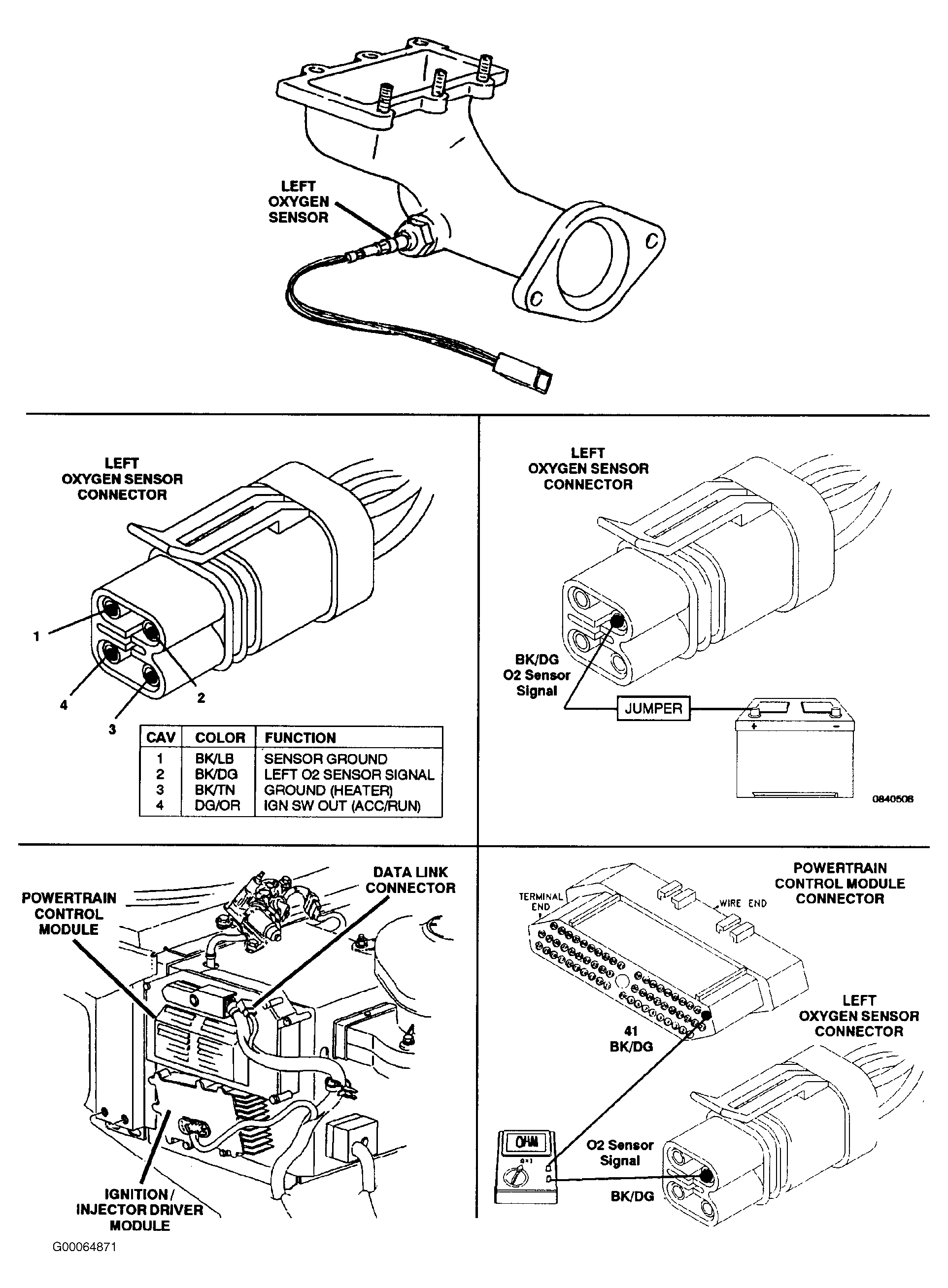

Fig 1: TC-15A: Left O2S At Center (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: TC-15A: Left O2S At Center (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 3: TC-15A: Left O2S At Center (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: TC-15A: Left O2S At Center (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
