NTC-6A: Checking Map Sensor Calibration

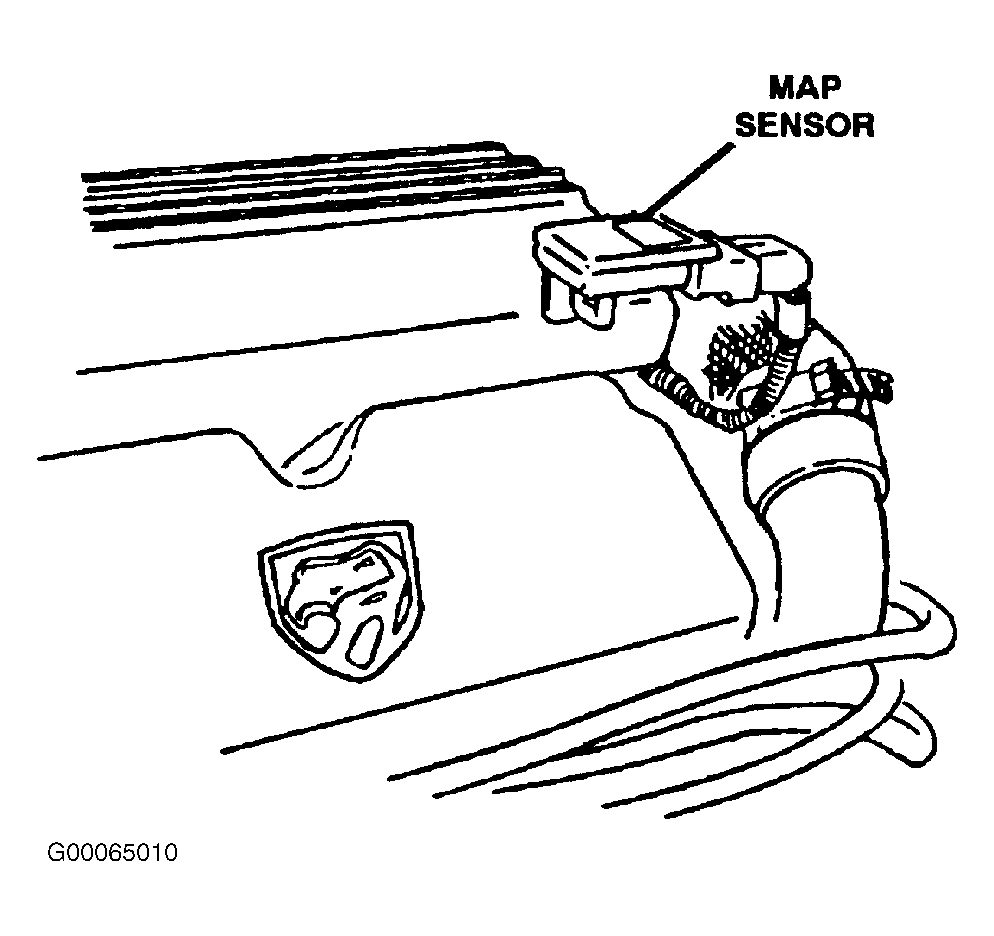

Fig 1: NTC-6A: Checking MAP Sensor Calibration (1 Of 2)
G00065010Courtesy of DAIMLERCHRYSLER CORPORATION

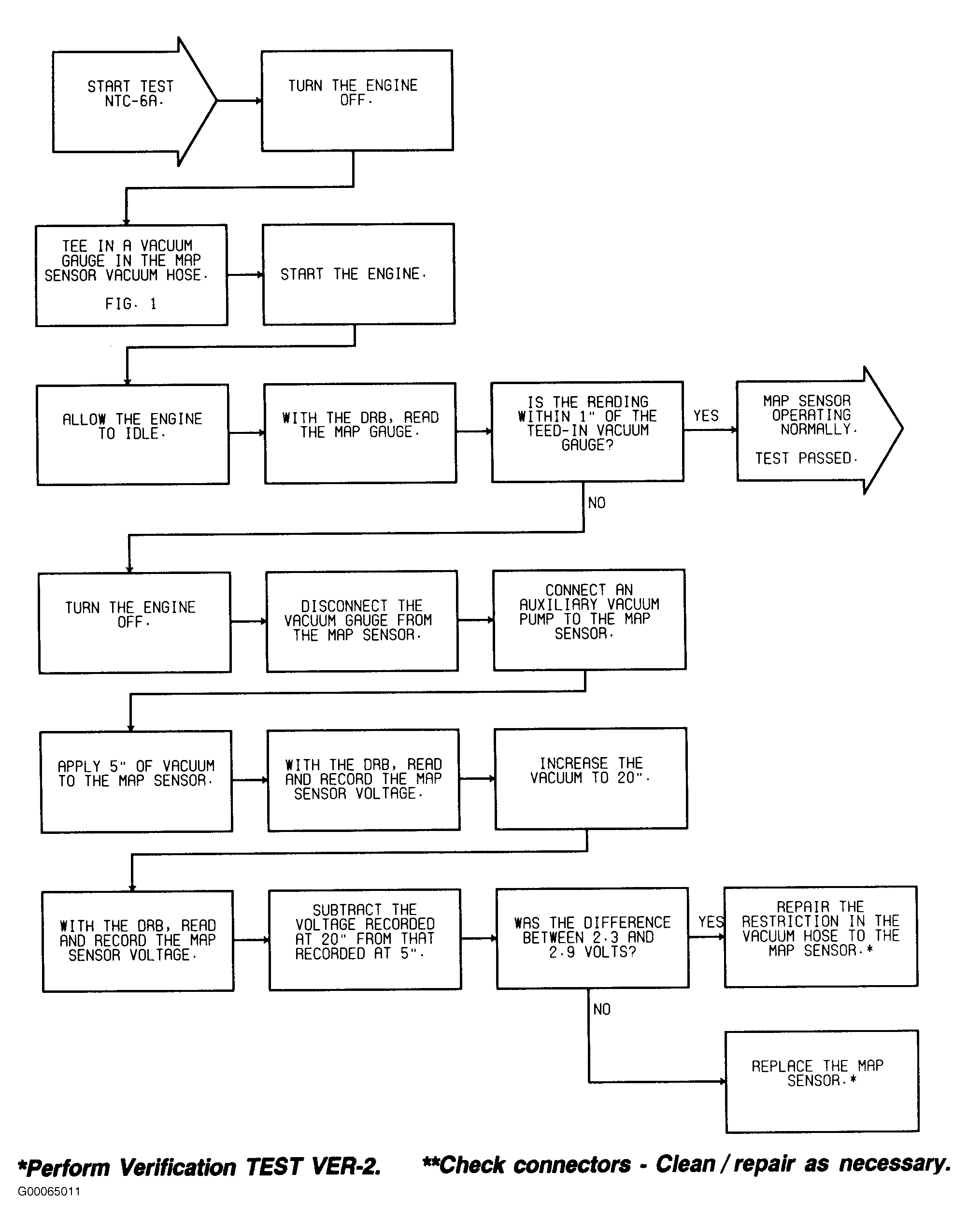

Fig 2: NTC-6A: Checking MAP Sensor Calibration (2 Of 2)
G00065011Courtesy of DAIMLERCHRYSLER CORPORATION
