Wiper Control Module

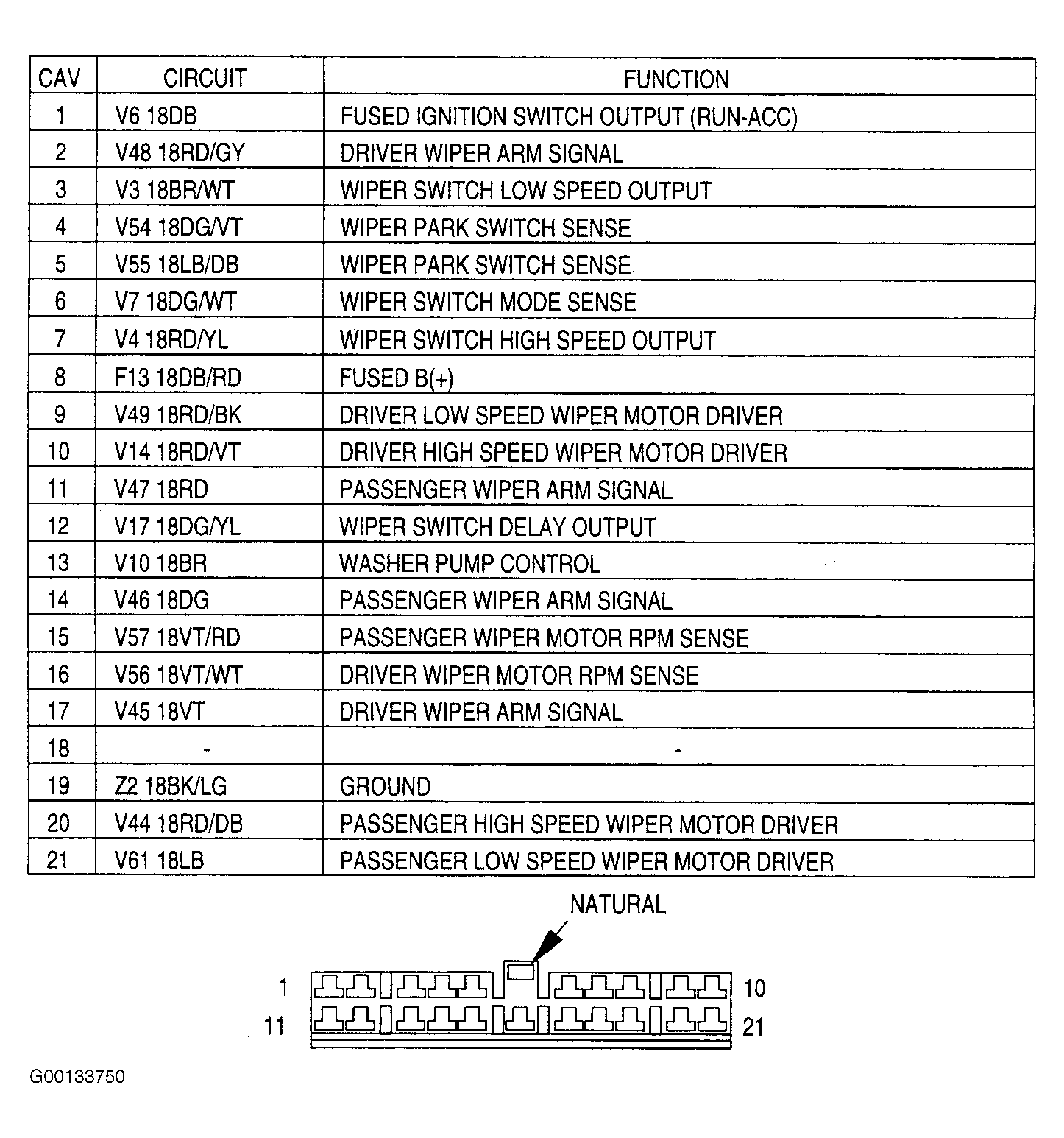

Fig 1: Identifying Wiper Control Module Connector Terminal Identification
G00133750Courtesy of CHRYSLER CORP.
