TC-122A: O2 Sensor 2/1 Slow Response

WARNING: This page is about a different car, the 1997 Dodge Viper and 1996 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

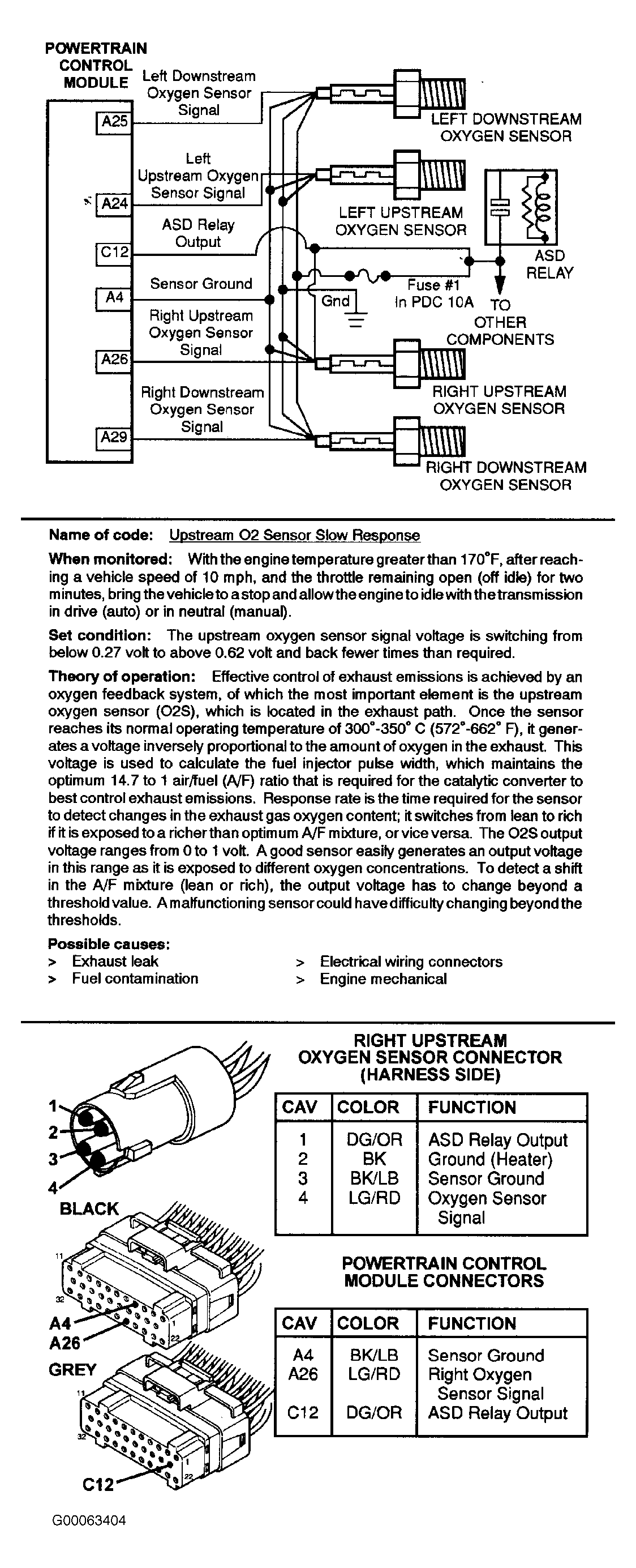

Fig 1: TC-122A: O2 Sensor 2/1 Slow Response (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

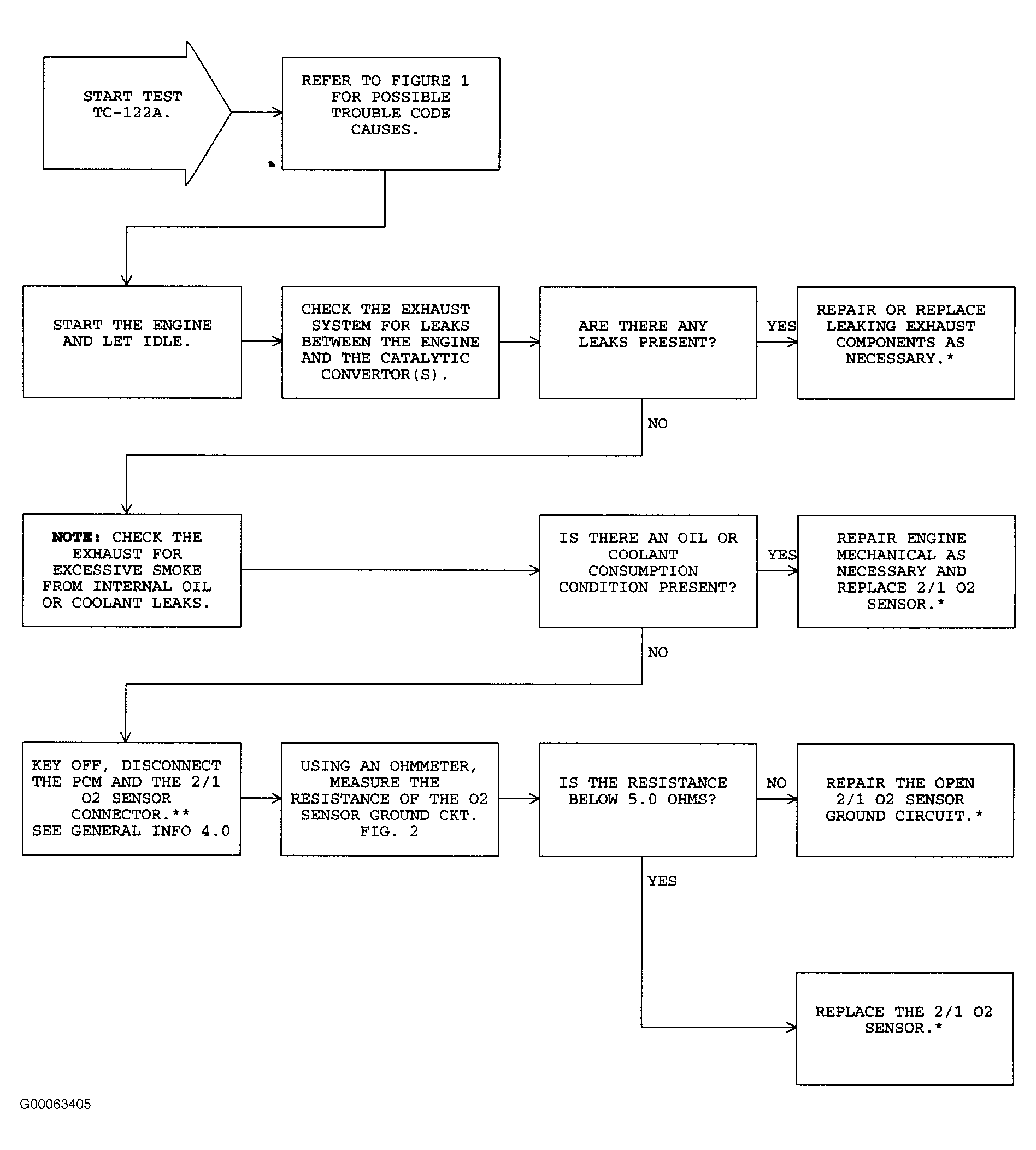

Fig 2: TC-122A: O2 Sensor 2/1 Slow Response (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
