TC-125A: O2 Sensor 2/2 Heater Failure

WARNING: This page is about a different car, the 1997 Dodge Viper and 1996 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

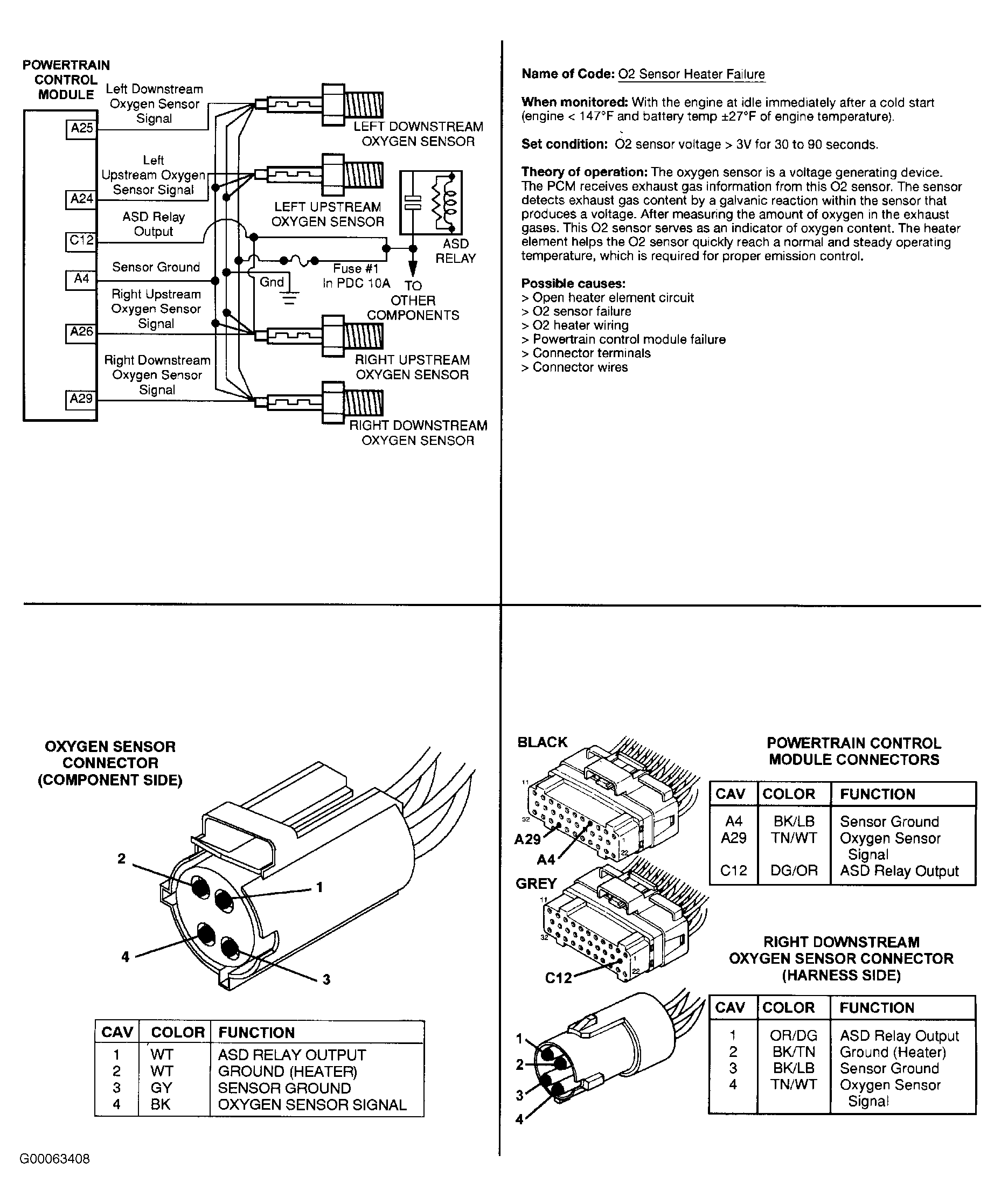

Fig 1: TC-125A: O2 Sensor 2/2 Heater Failure (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: TC-125A: O2 Sensor 2/2 Heater Failure (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
