WARNING: This page is about a different car, the 1997 Dodge Viper and 1996 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

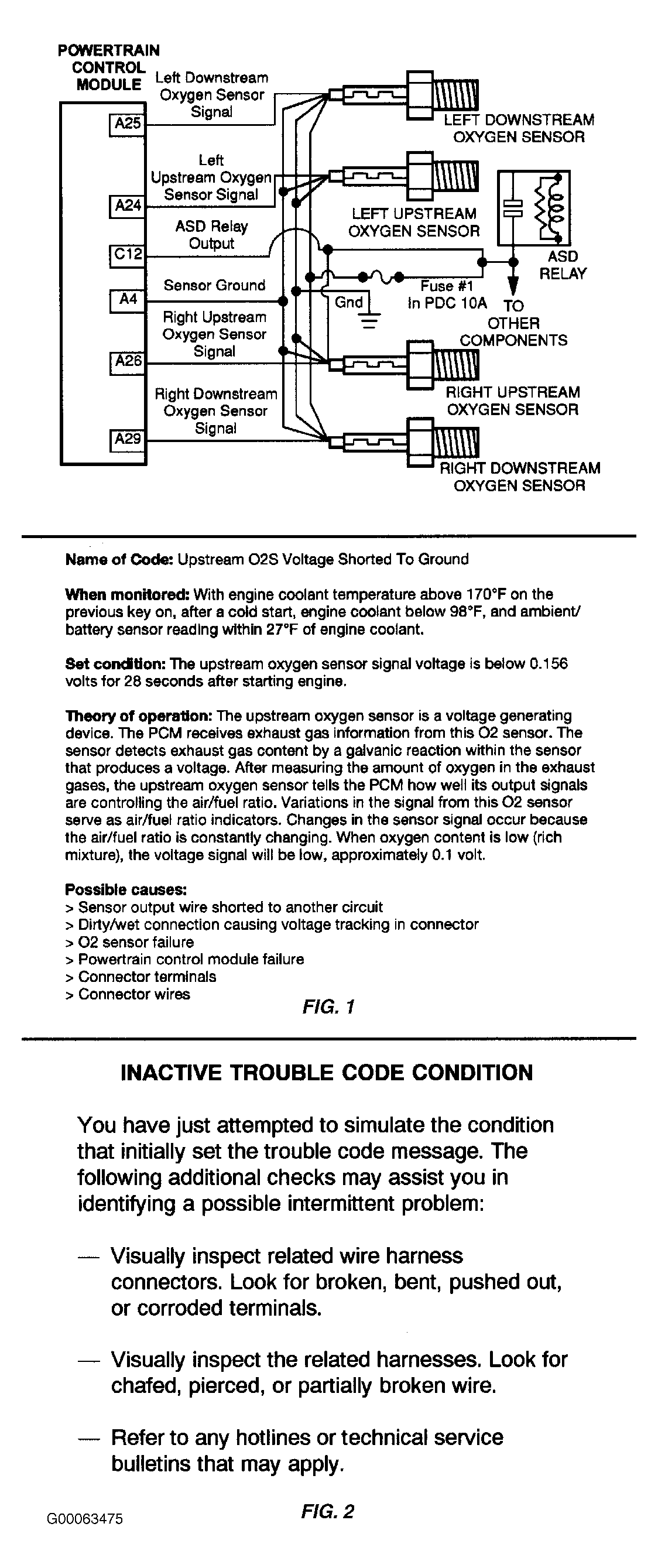

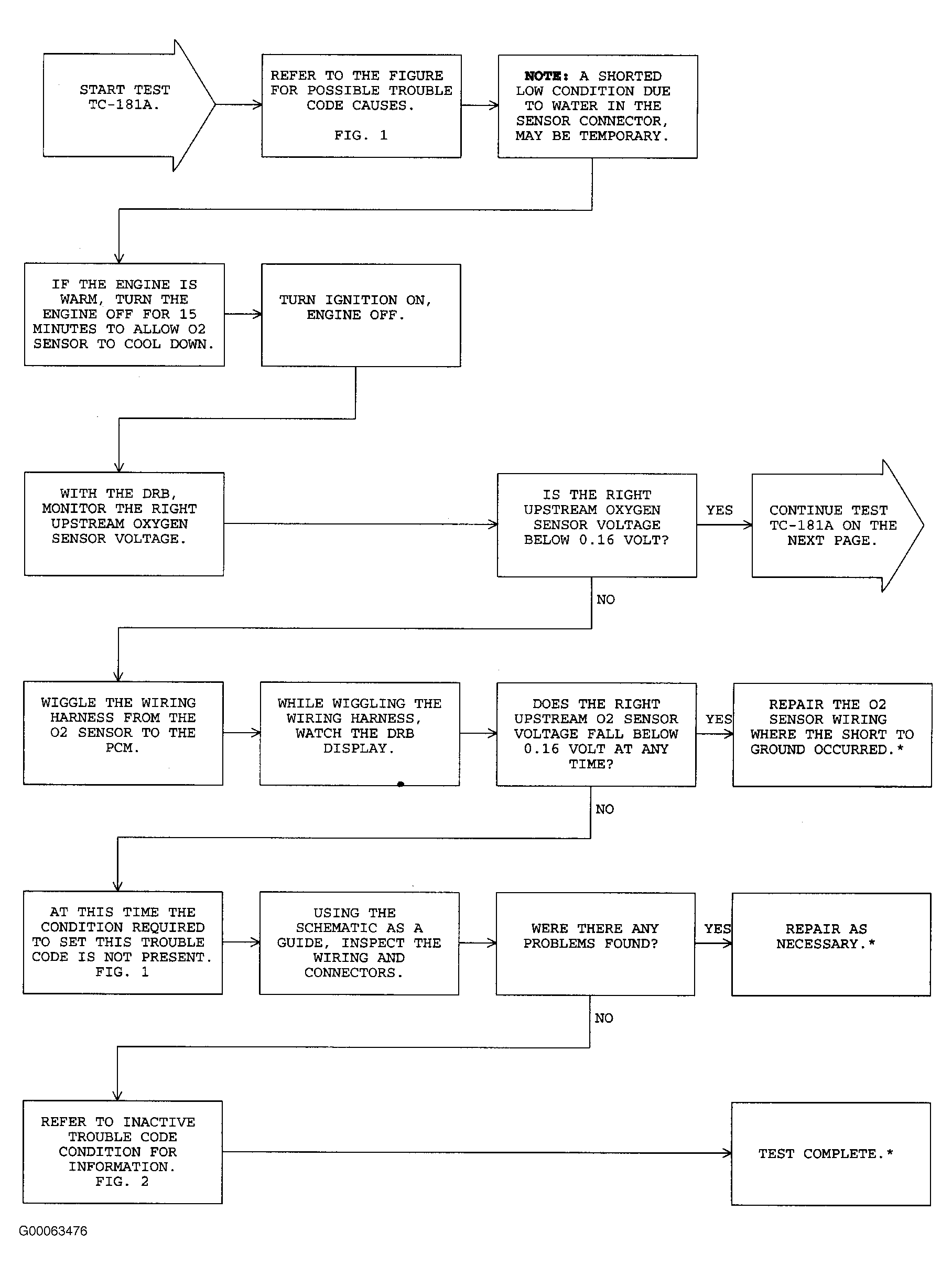

Fig 1: TC-181A: O2 Sensor 2/1 Shorted To Ground (1 Of 4)
Courtesy of DAIMLERCHRYSLER CORPORATION

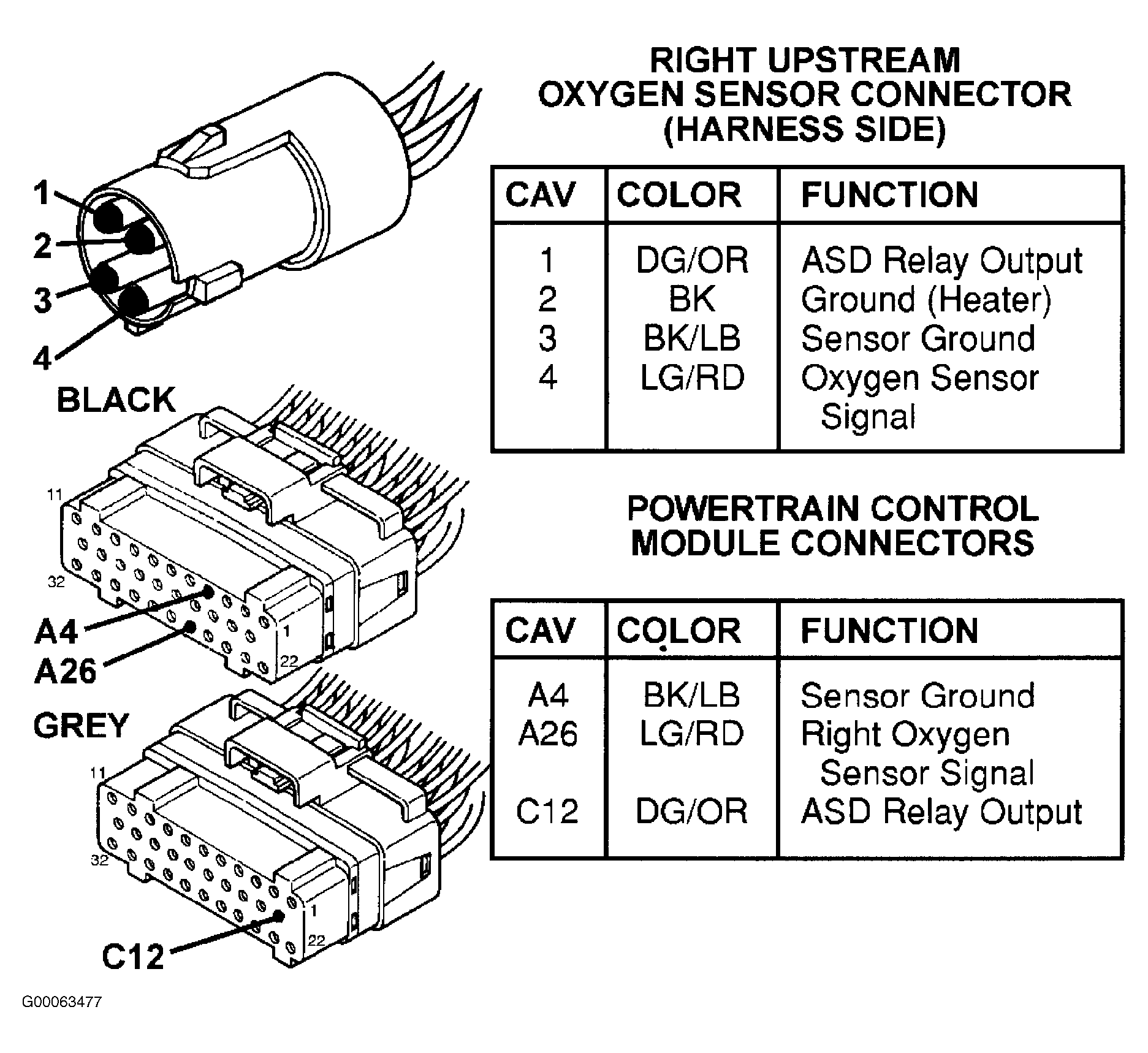

Fig 2: TC-181A: O2 Sensor 2/1 Shorted To Ground (2 Of 4)
Courtesy of DAIMLERCHRYSLER CORPORATION

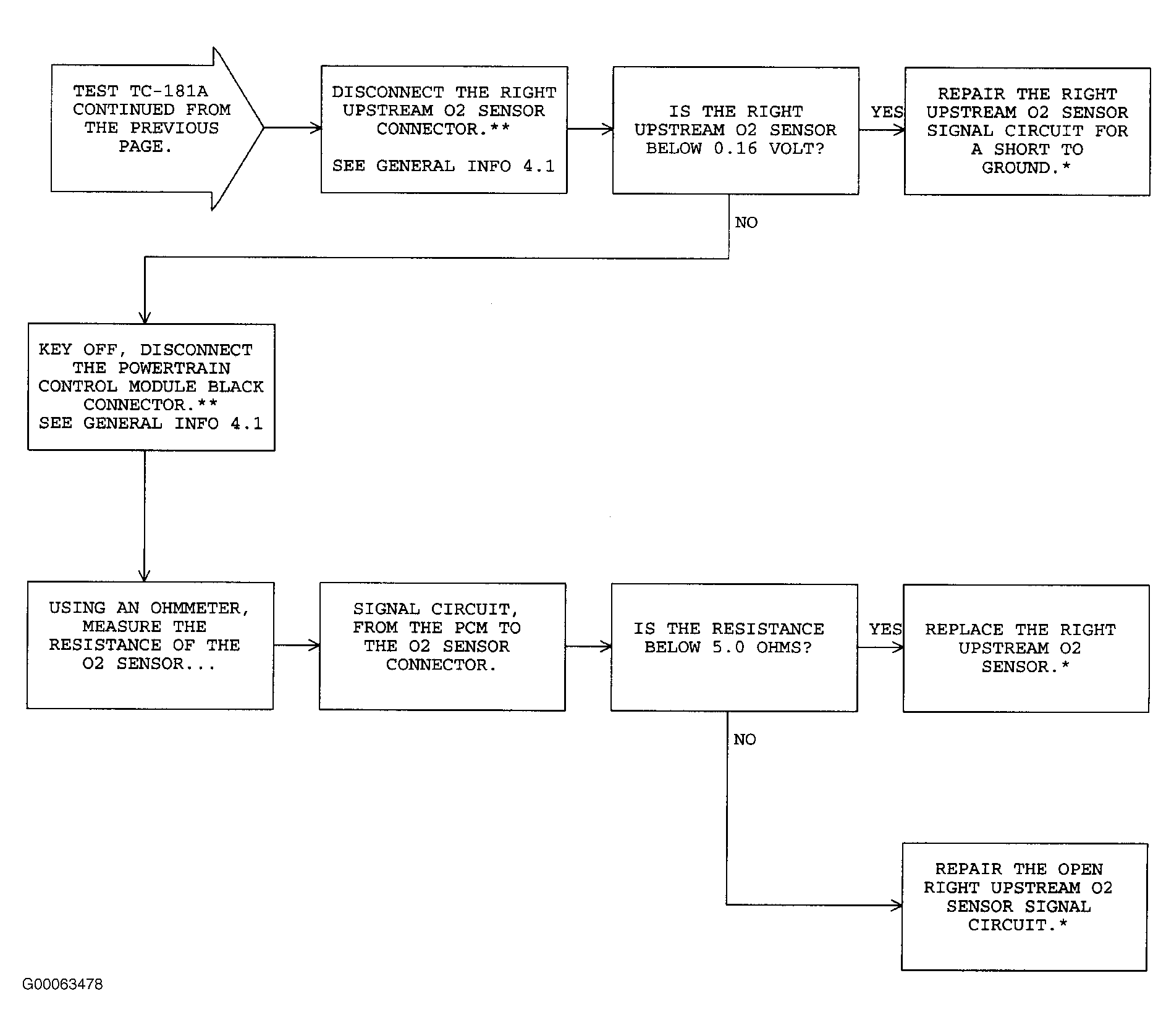

Fig 3: TC-181A: O2 Sensor 2/1 Shorted To Ground (3 Of 4)
Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 4: TC-181A: O2 Sensor 2/1 Shorted To Ground (4 Of 4)
