Transmission Assembly: Assembly

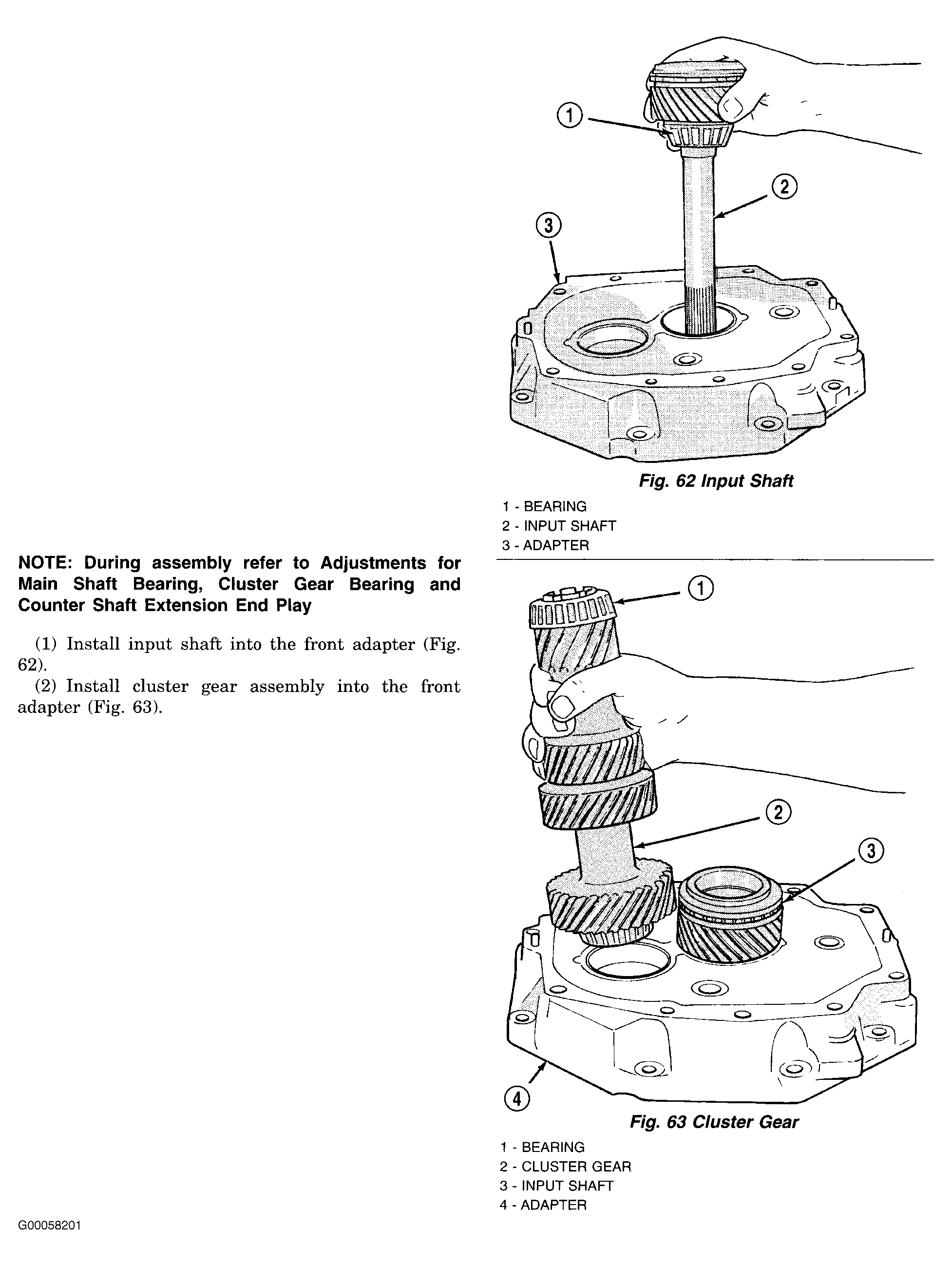

Fig 1: Transmission Assembly - Steps 1-2

G00058201

Courtesy of DAIMLERCHRYSLER CORPORATION

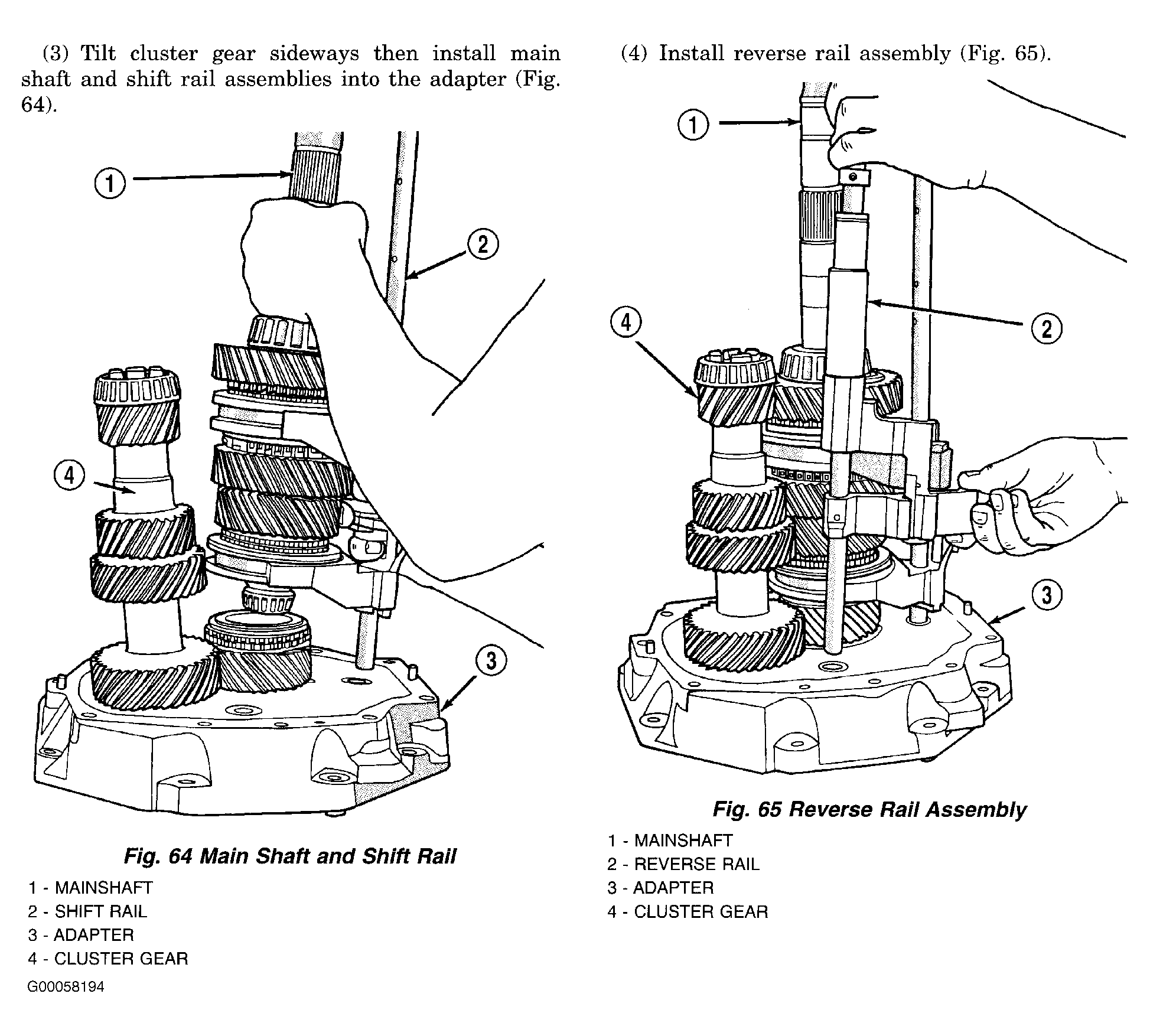

Fig 2: Transmission Assembly - Steps 3-4

G00058194

Courtesy of DAIMLERCHRYSLER CORPORATION

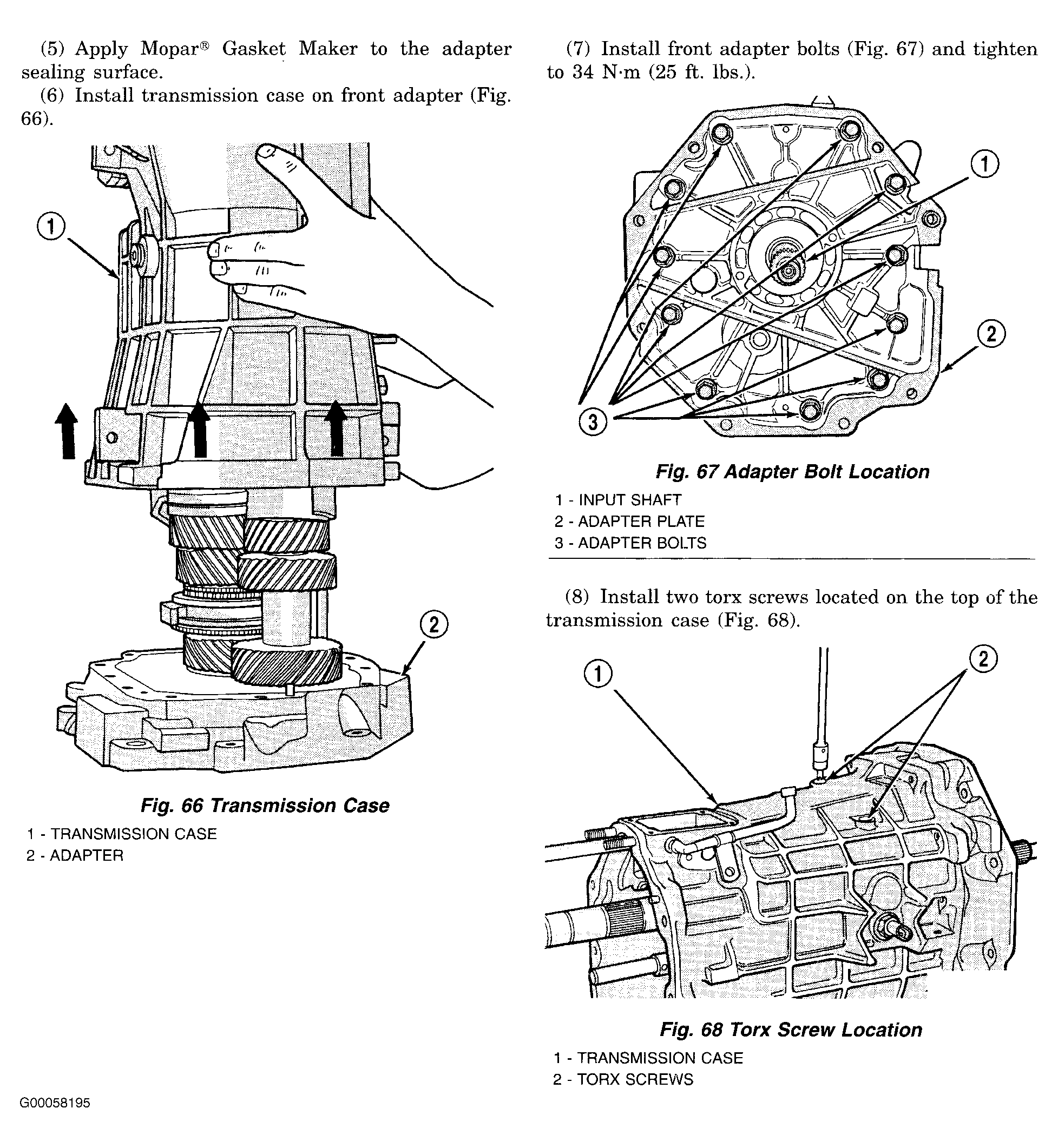

Fig 3: Transmission Assembly - Steps 5-8

G00058195

Courtesy of DAIMLERCHRYSLER CORPORATION

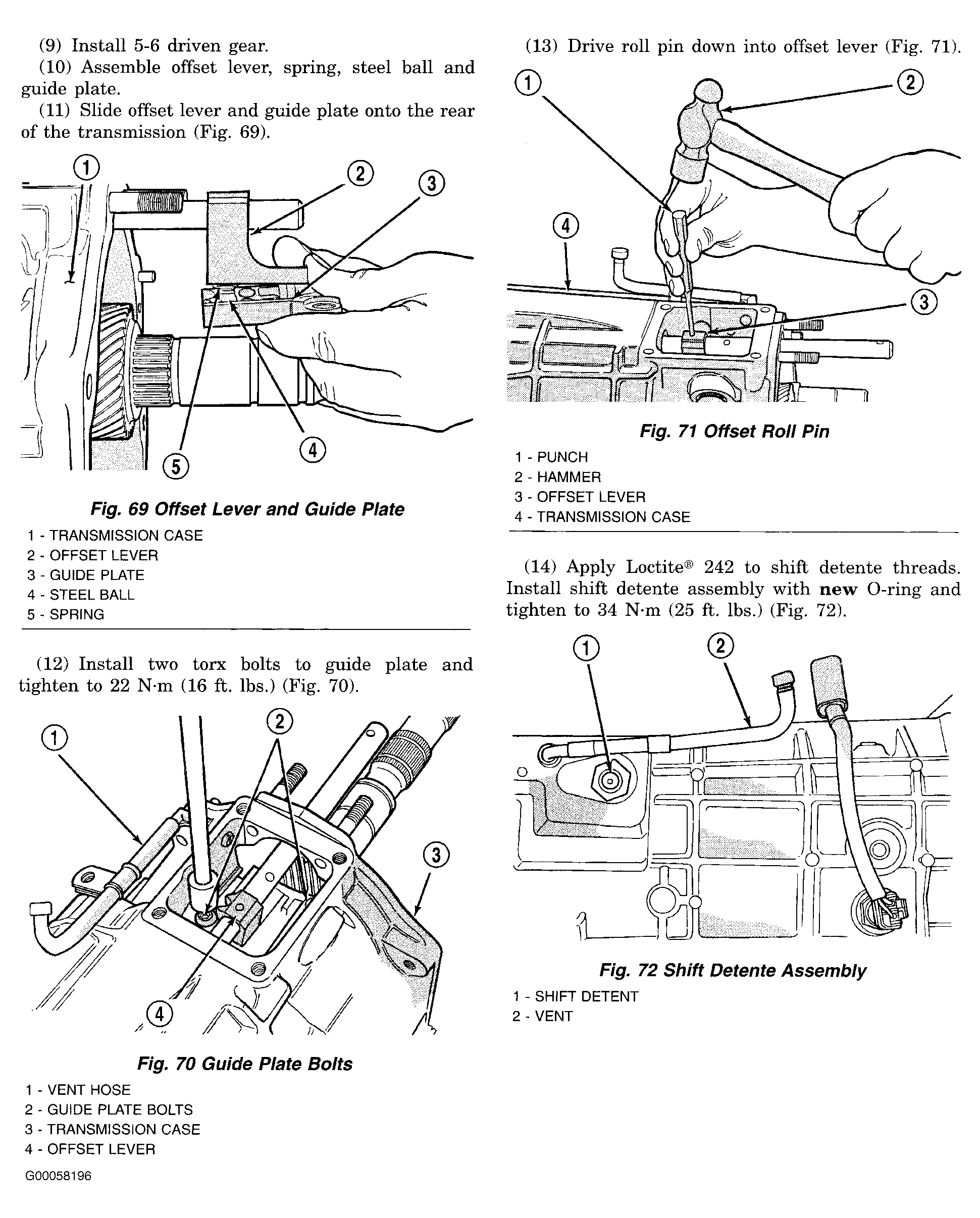

Fig 4: Transmission Assembly - Steps 9-14

G00058196

Courtesy of DAIMLERCHRYSLER CORPORATION

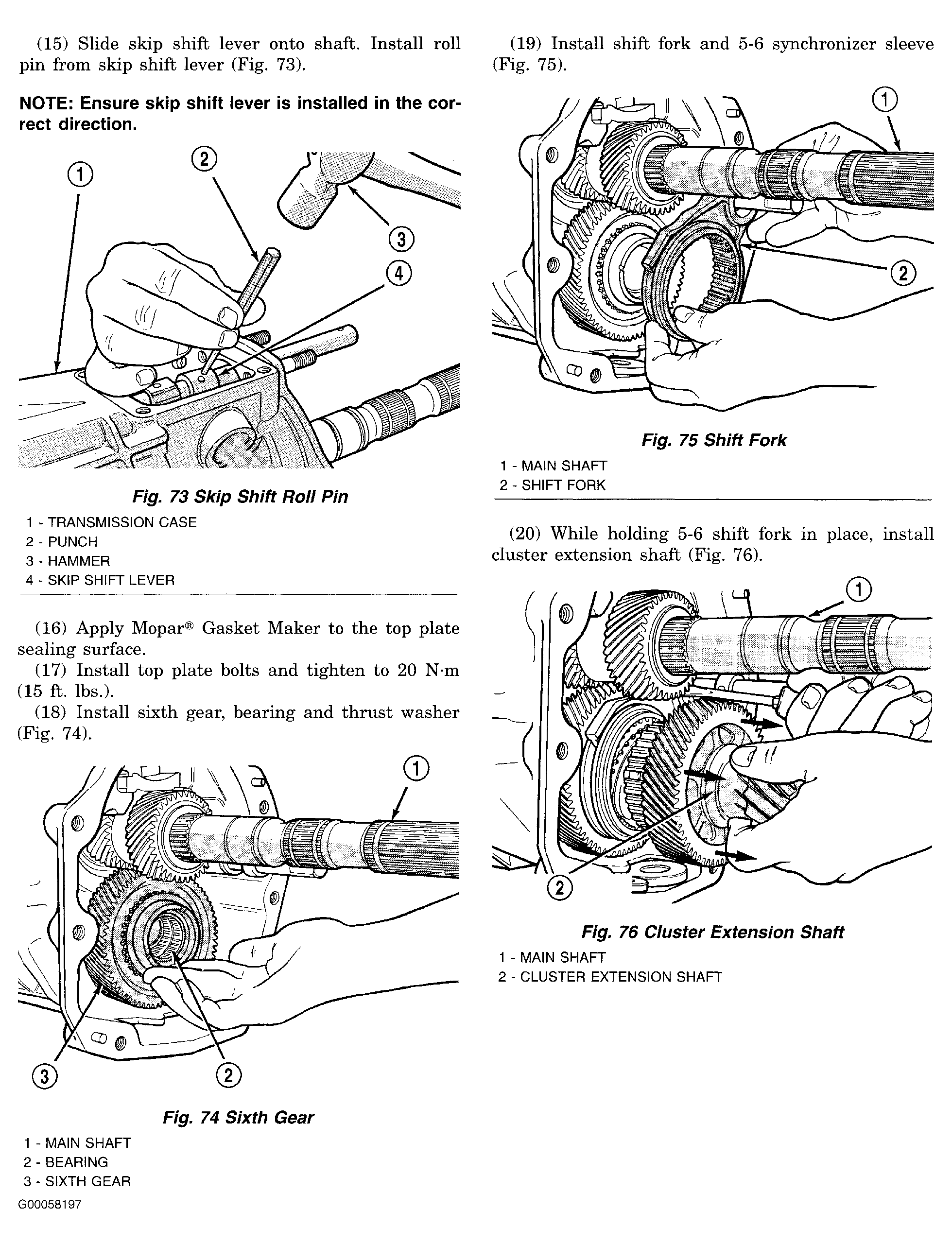

Fig 5: Transmission Assembly - Steps 15-20

G00058197

Courtesy of DAIMLERCHRYSLER CORPORATION

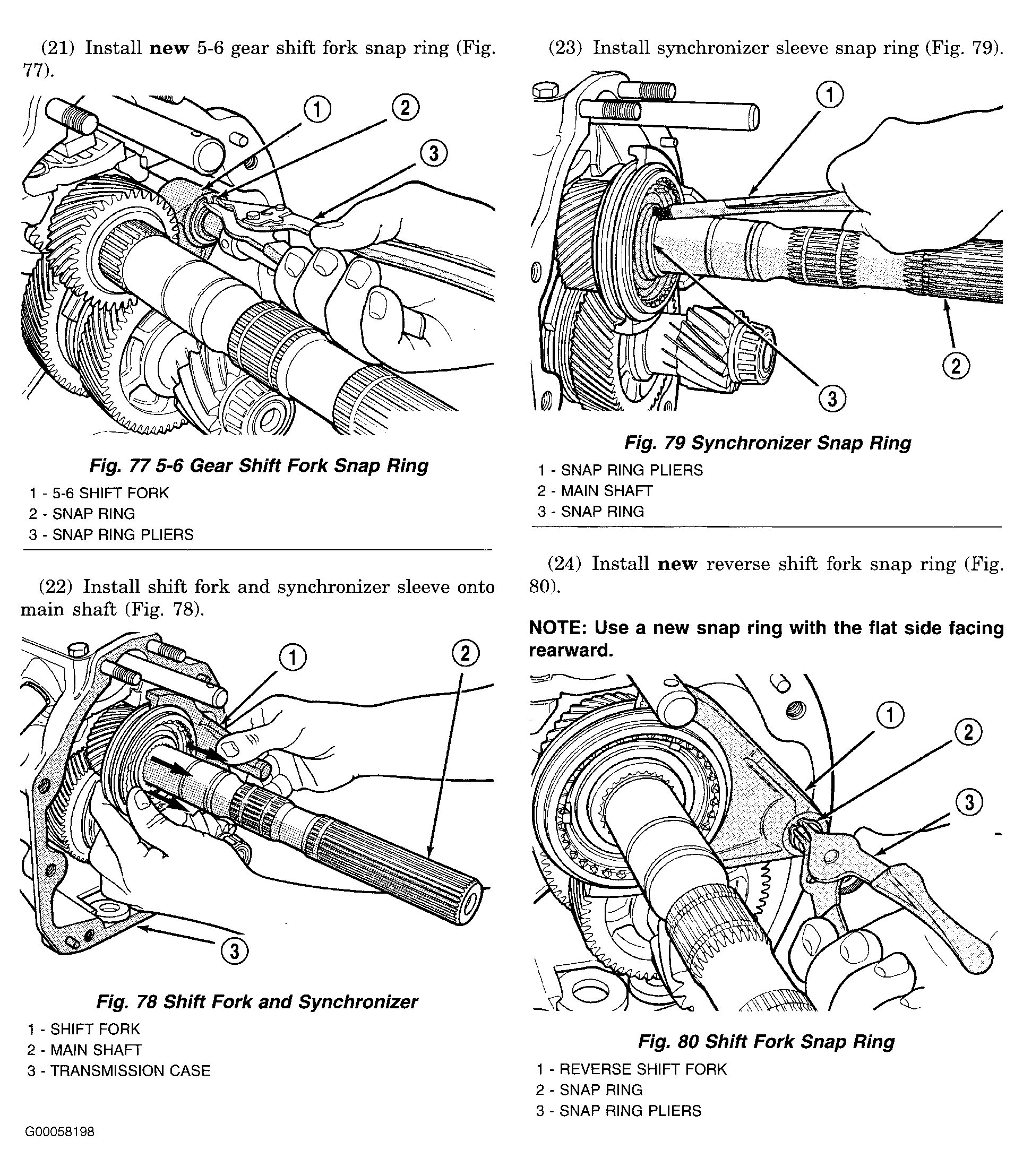

Fig 6: Transmission Assembly - Steps 21-24

G00058198

Courtesy of DAIMLERCHRYSLER CORPORATION

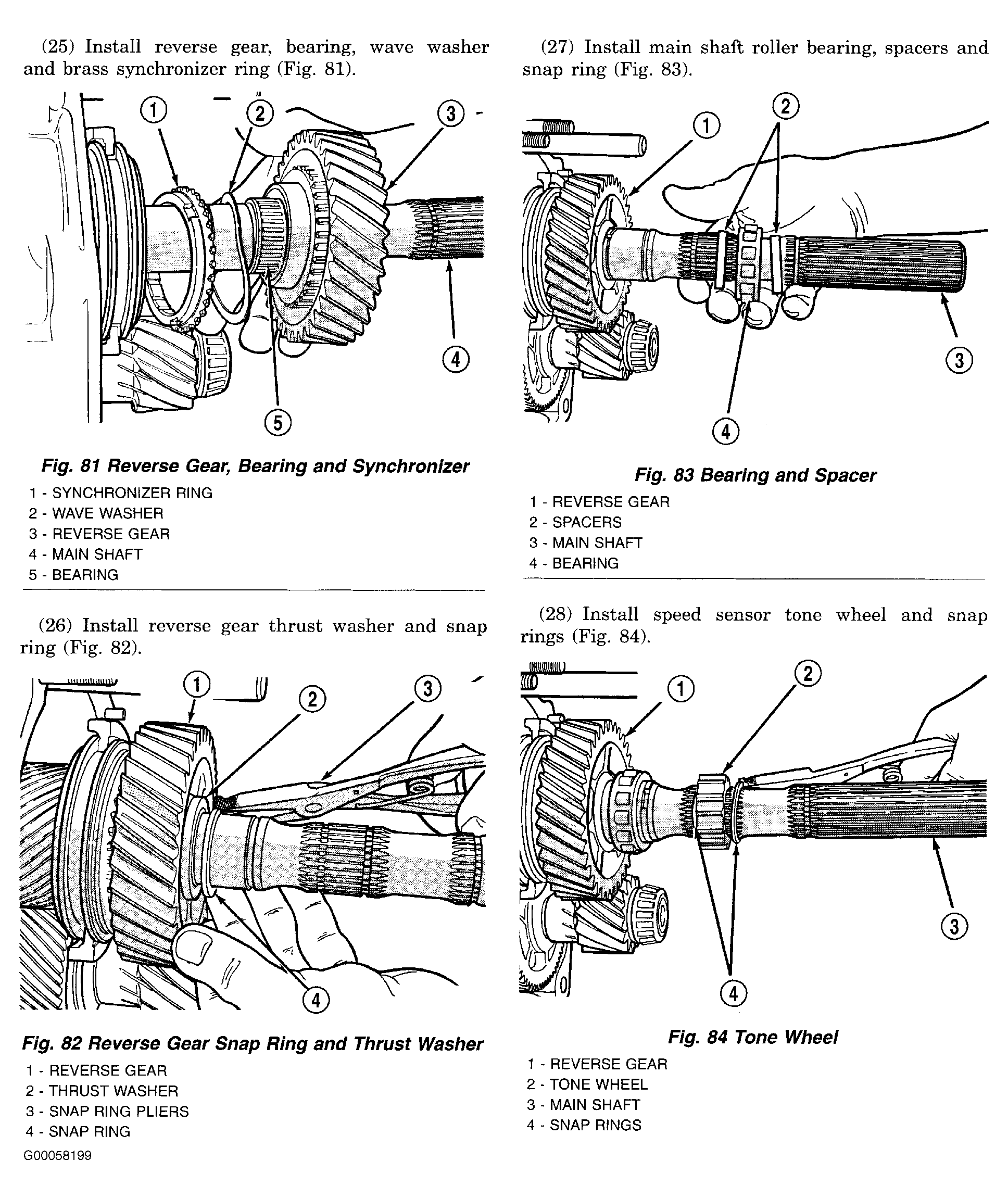

Fig 7: Transmission Assembly - Steps 25-28

G00058199

Courtesy of DAIMLERCHRYSLER CORPORATION

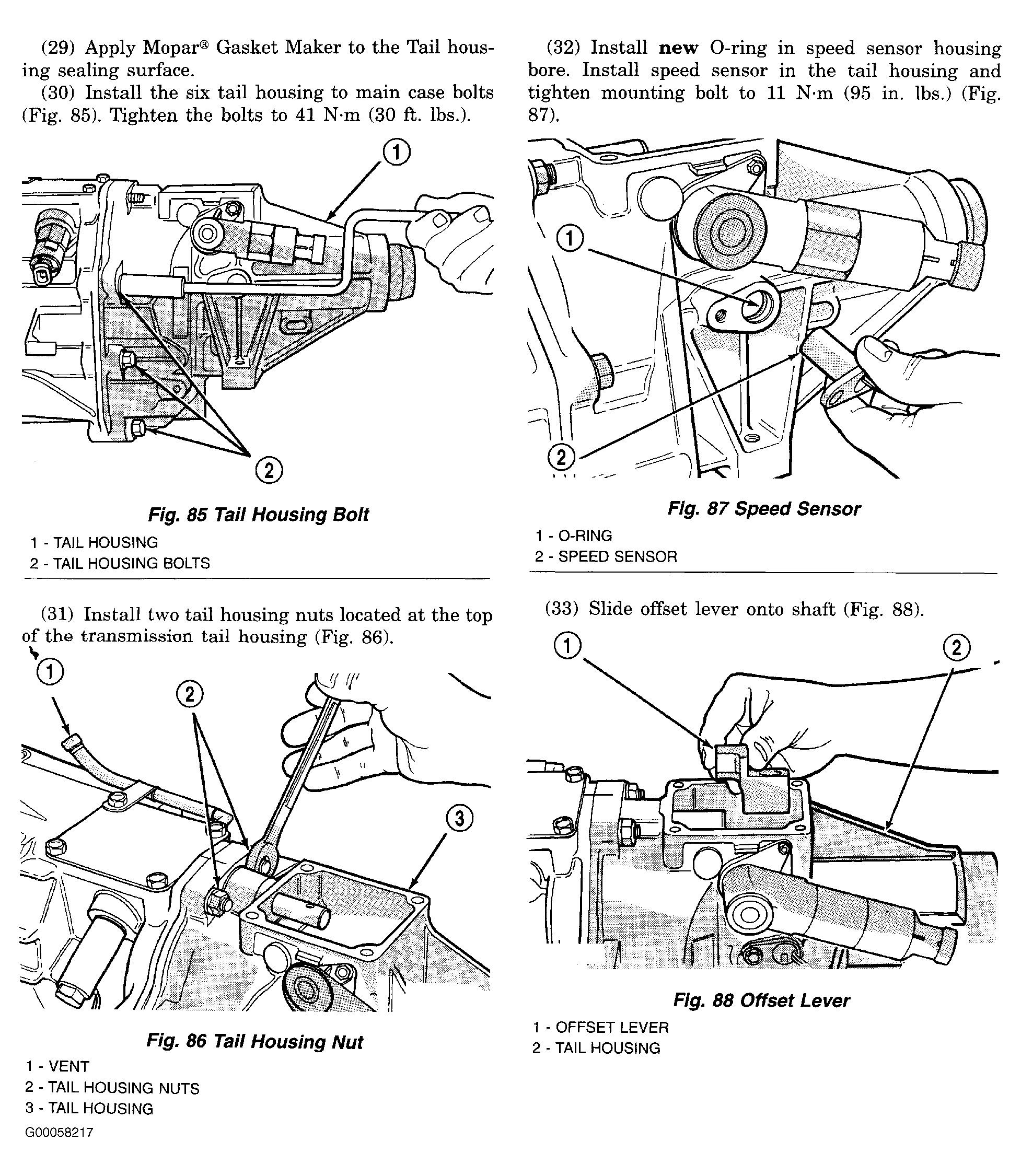

Fig 8: Transmission Assembly - Steps 29-33

G00058217

Courtesy of DAIMLERCHRYSLER CORPORATION

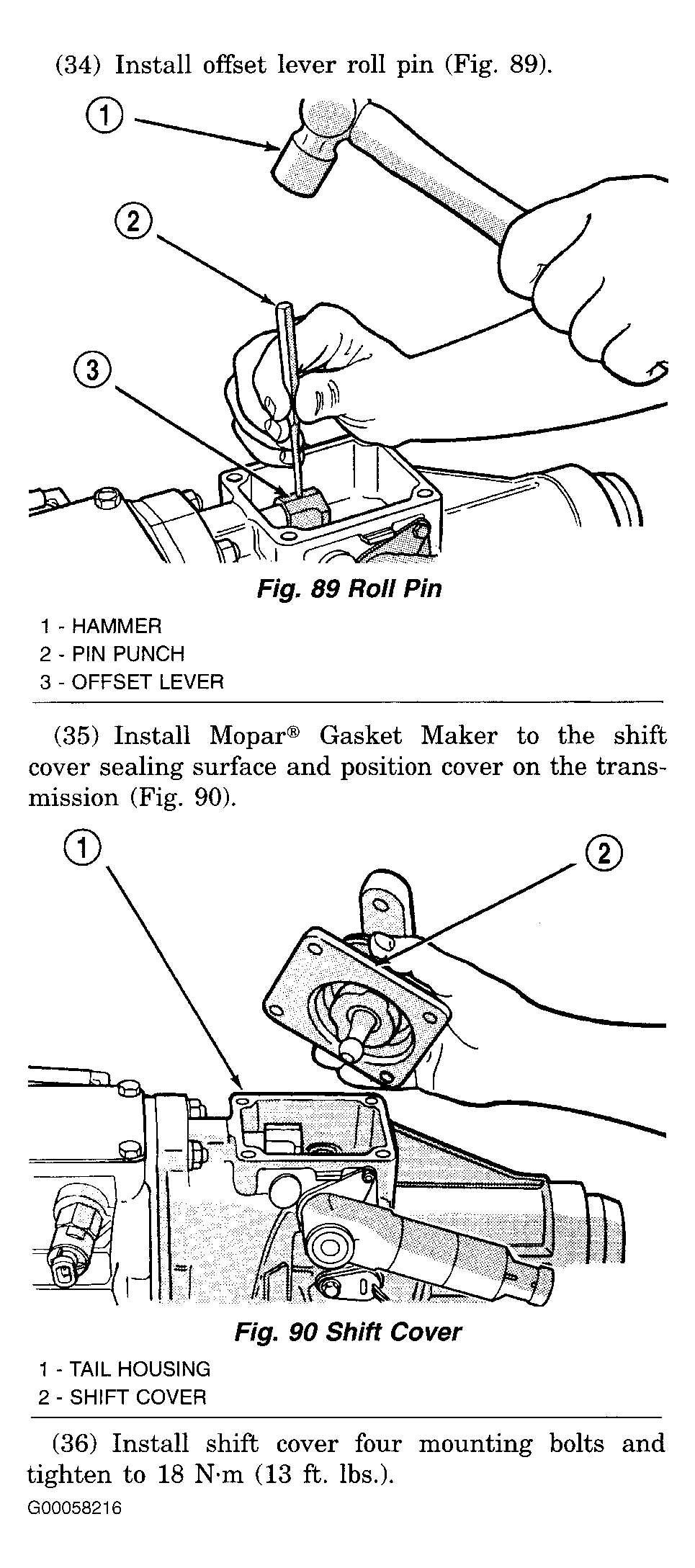

Fig 9: Transmission Assembly - Steps 34-36

G00058216

Courtesy of DAIMLERCHRYSLER CORPORATION
