Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector			Illustration
Battery Temperature Sensor			Fig 1
Brake Switch			Fig 2
Camshaft Position Sensor			Fig 3
Clockspring 4-Pin Connector			Fig 4
Crankshaft Position Sensor			Fig 5
Data Link Connector (DLC)			Fig 6
Downstream (1/2) Oxygen Sensor			Fig 7
EGR Solenoid			Fig 8
Engine Coolant Temperature Sensor
DOHC			Fig 9
SOHC			Fig 10
EVAP Purge Solenoid			Fig 11
Fuel Pump Module			Fig 12
IAT/MAP Sensor			Fig 13
Idle Air Control Motor			Fig 14
Ignition Coil			Fig 15
Injector			Fig 16
Knock Sensor			Fig 17
Leak Detection Pump			Fig 18
Park/Neutral Switch
A/T			Fig 19
Power Steering Pressure Switch			Fig 20
Powertrain Control Module (PCM)			Fig 21
Radiator Fan Control Relay			Fig 22
Speed Control Servo			Fig 23
Throttle Position Sensor
DOHC			Fig 24
SOHC			Fig 25
Torque Converter Clutch Solenoid
A/T			Fig 26
Upstream (1/1) Oxygen Sensor			Fig 27
Vehicle Speed Sensor			Fig 28

Fig 1: Identifying Battery Temperature Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

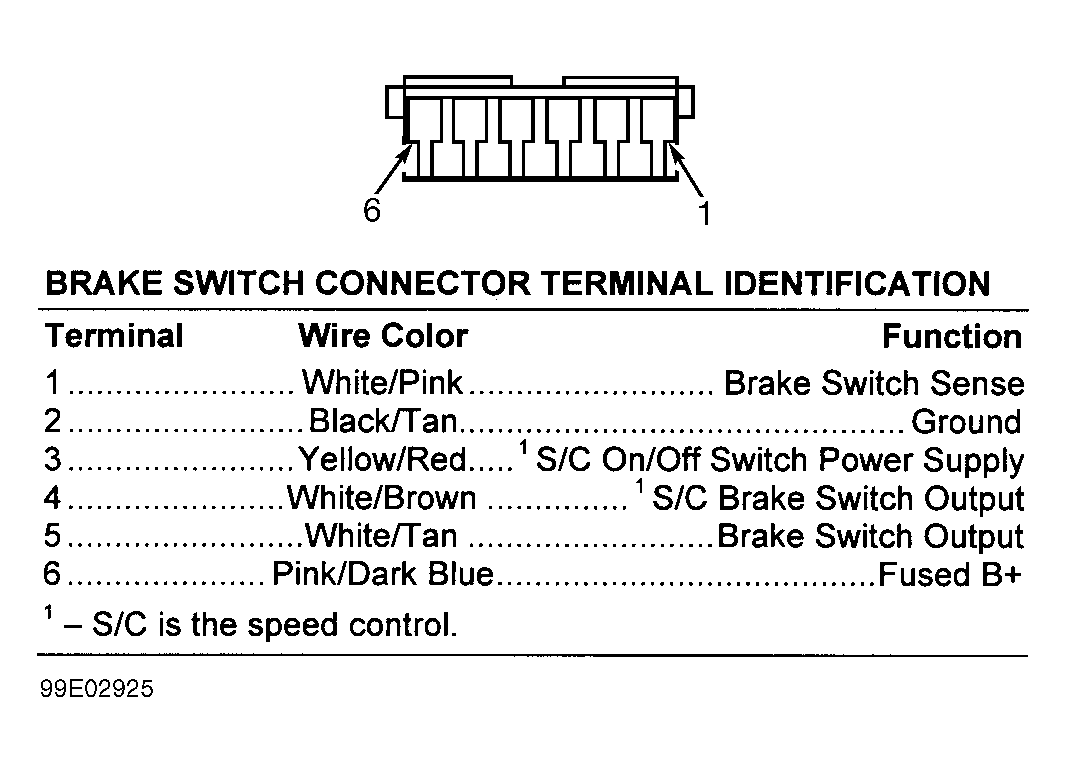

Fig 2: Identifying Brake Switch Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Camshaft Position Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

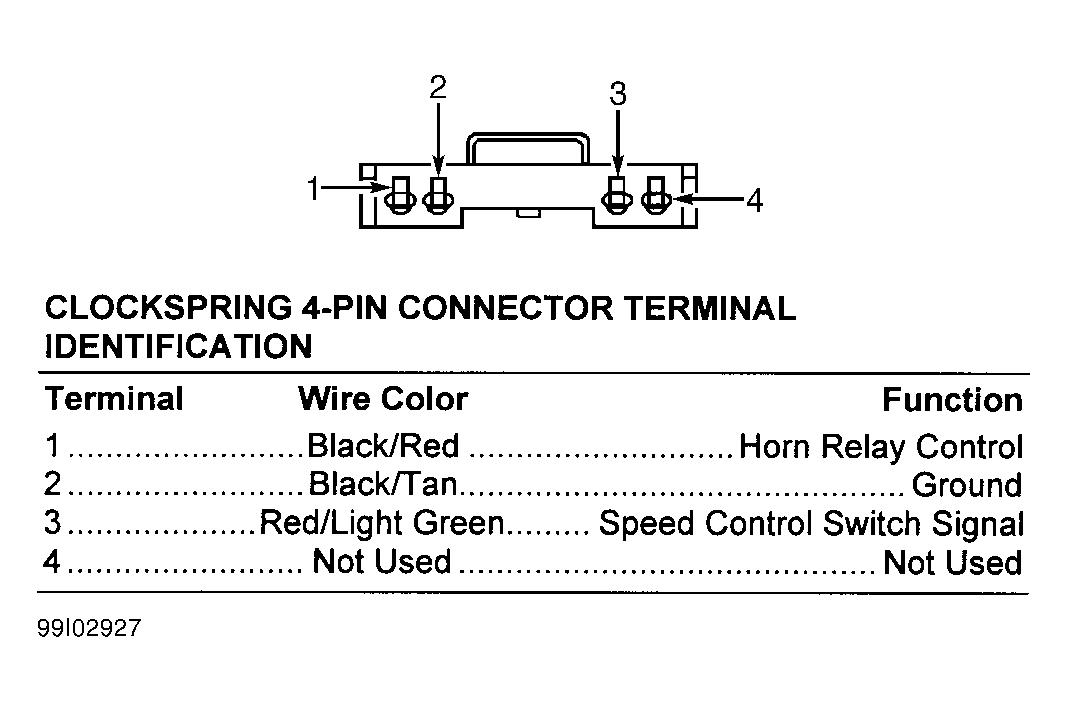

Fig 4: Identifying Clockspring 4-Pin Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Crankshaft Position Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

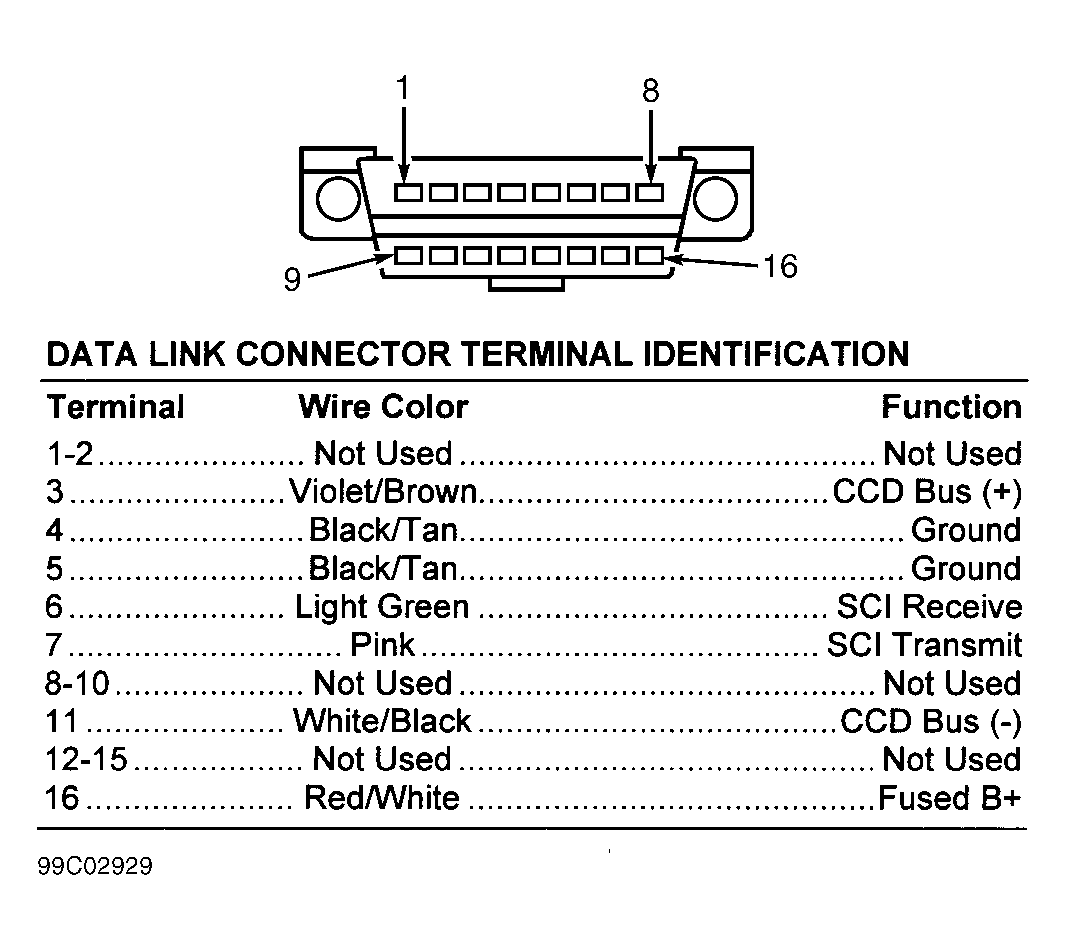

Fig 6: Identifying Data Link Connector (DLC) Terminals

Courtesy of CHRYSLER CORP.

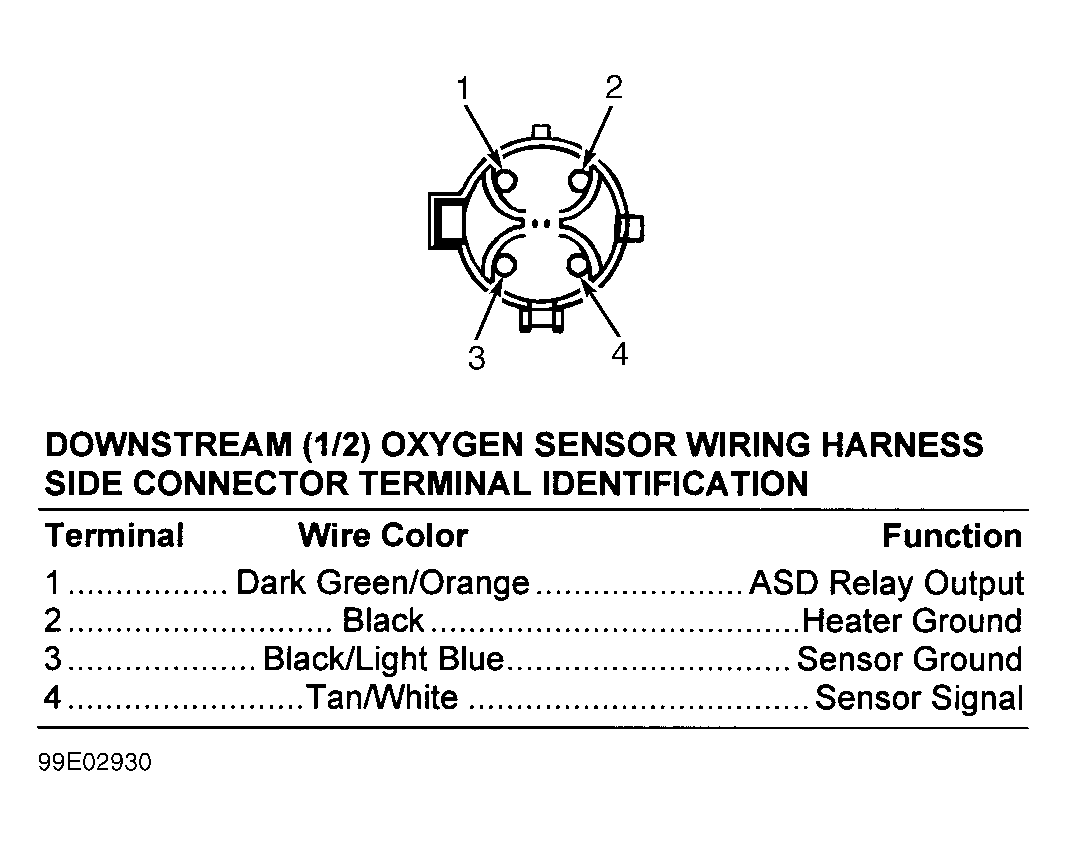

Fig 7: Identifying Downstream (1/2) Oxygen Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 8: Identifying EGR Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

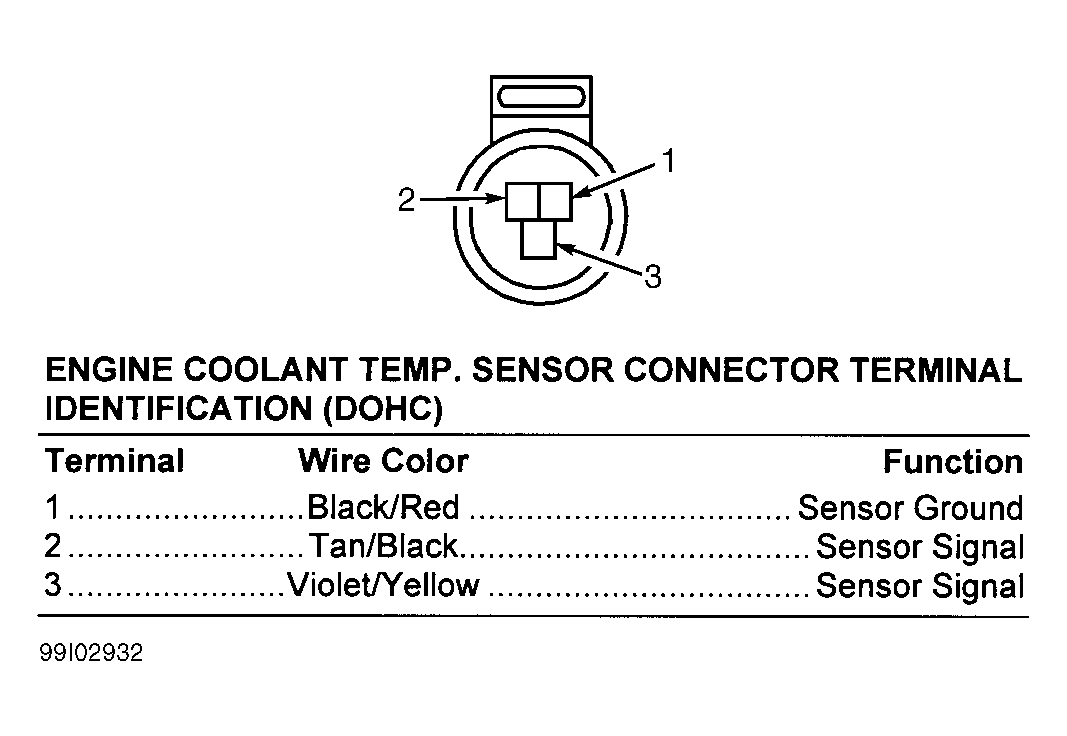

Fig 9: Identifying Engine Coolant Temp. Sensor Connector Terminals (DOHC)

Courtesy of CHRYSLER CORP.

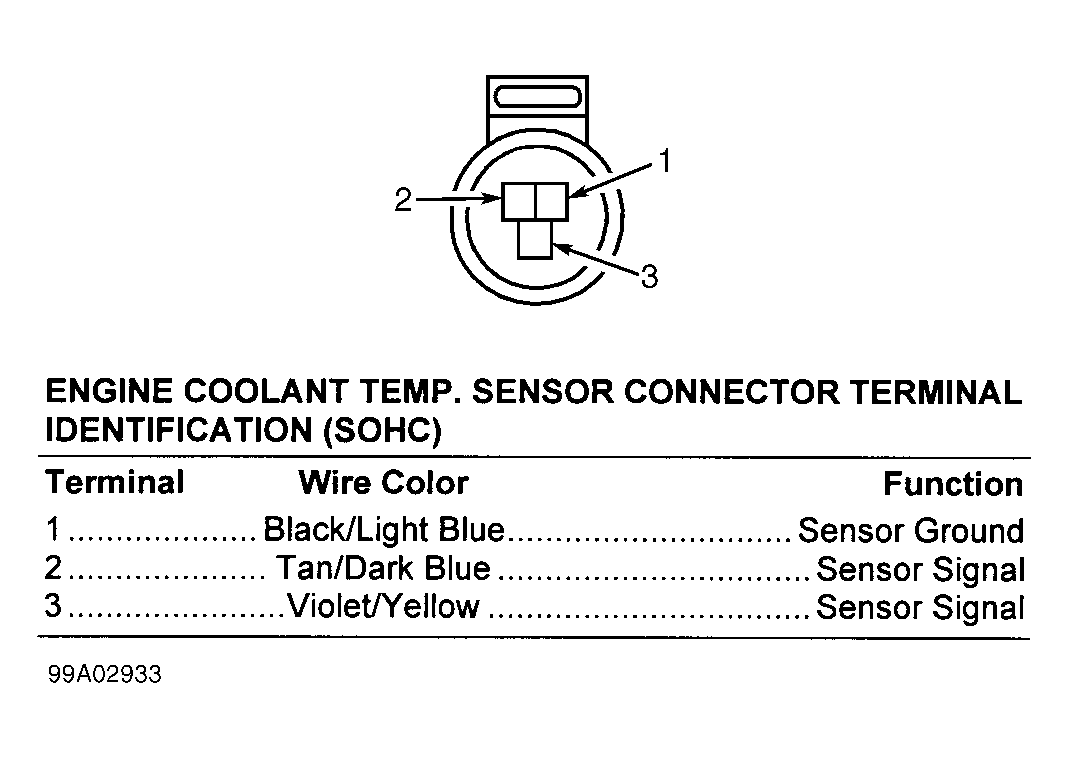

Fig 10: Identifying Engine Coolant Temp. Sensor Connector Terminals (SOHC)

Courtesy of CHRYSLER CORP.

Fig 11: Identifying EVAP Purge Solenoid Connector Terminals

Courtesy of CHRYSLER CORP.

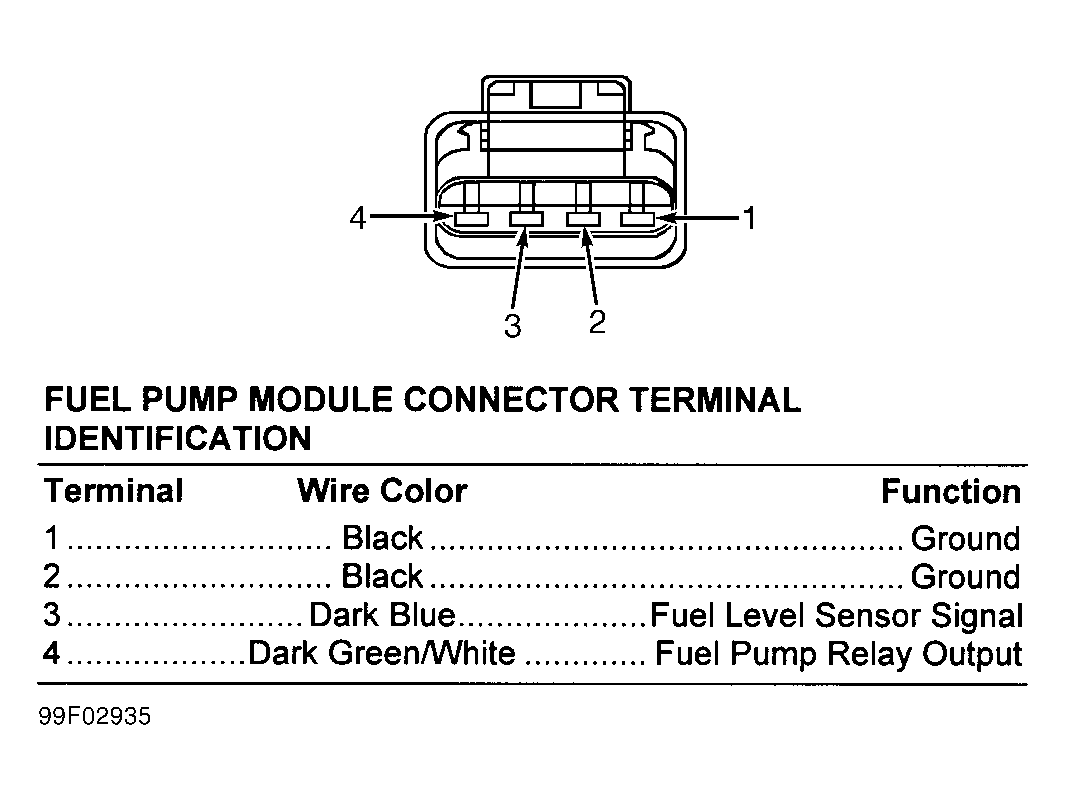

Fig 12: Identifying Fuel Pump Module Connector Terminals

Courtesy of CHRYSLER CORP.

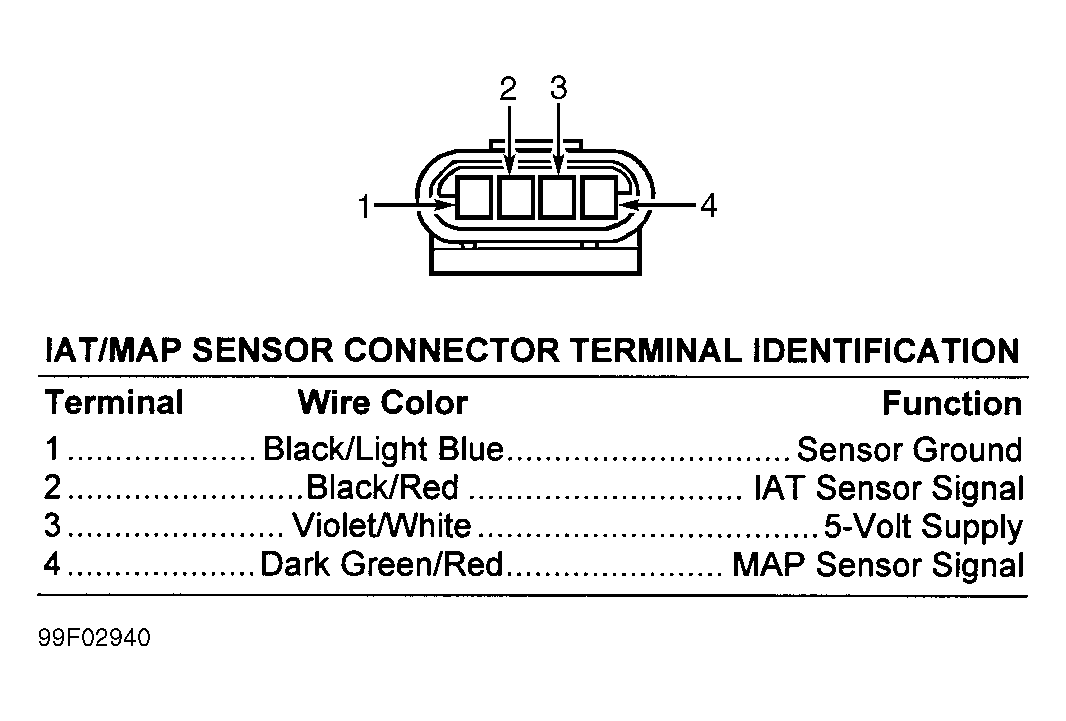

Fig 13: Identifying IAT/MAP Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 14: Identifying Idle Air Control Motor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 15: Identifying Ignition Coil Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 16: Identifying Injector Connector Terminals

Courtesy of CHRYSLER CORP.

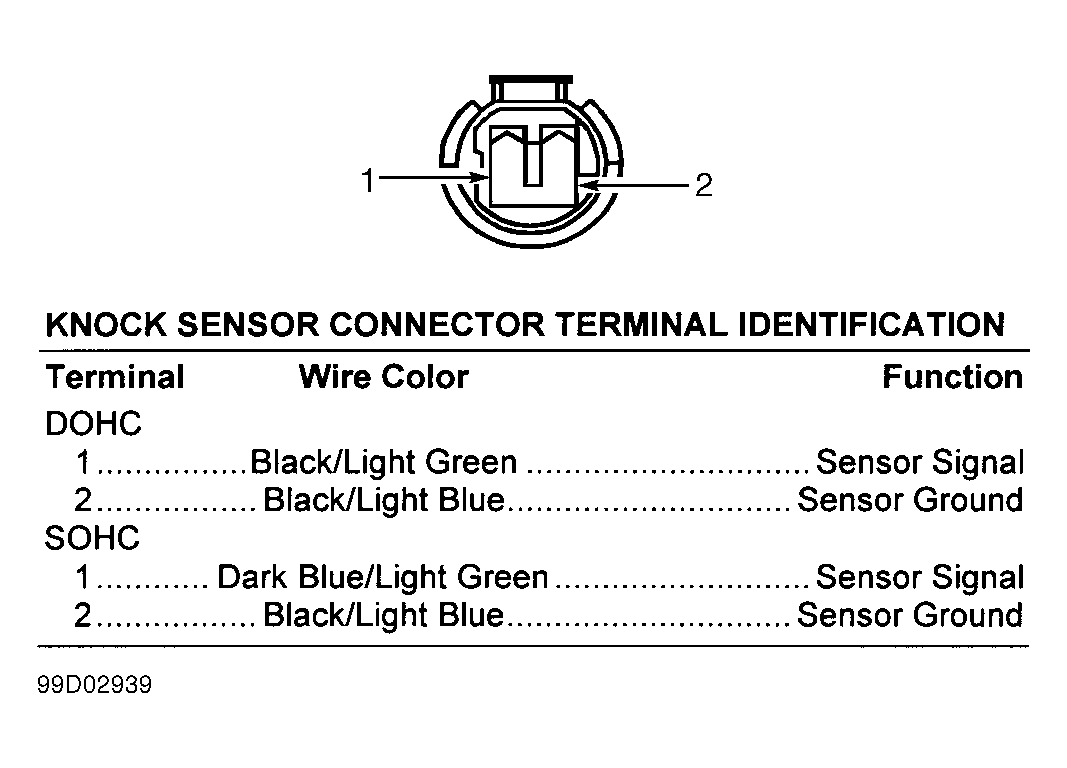

Fig 17: Identifying Knock Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

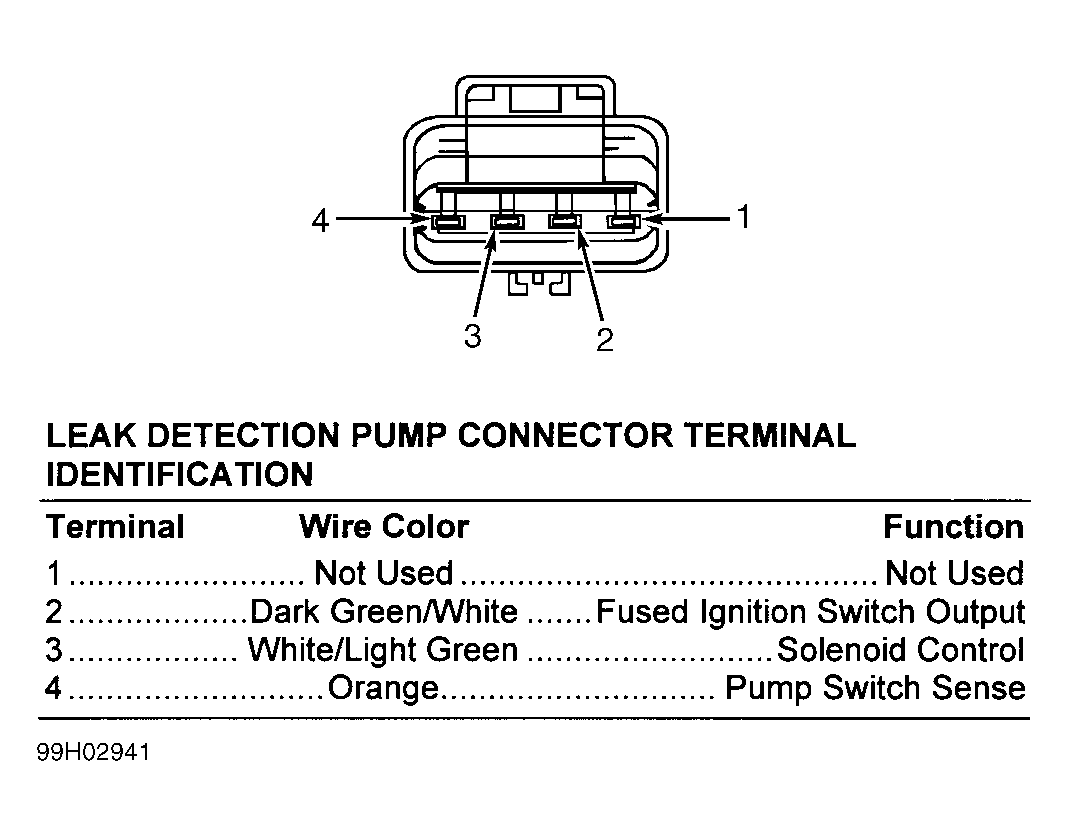

Fig 18: Identifying Leak Detection Pump Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 19: Identifying Park/Neutral Switch Connector Terminals (A/T)

Courtesy of CHRYSLER CORP.

Fig 20: Identifying Power Steering Pressure Switch Connector Terminals

Courtesy of CHRYSLER CORP.

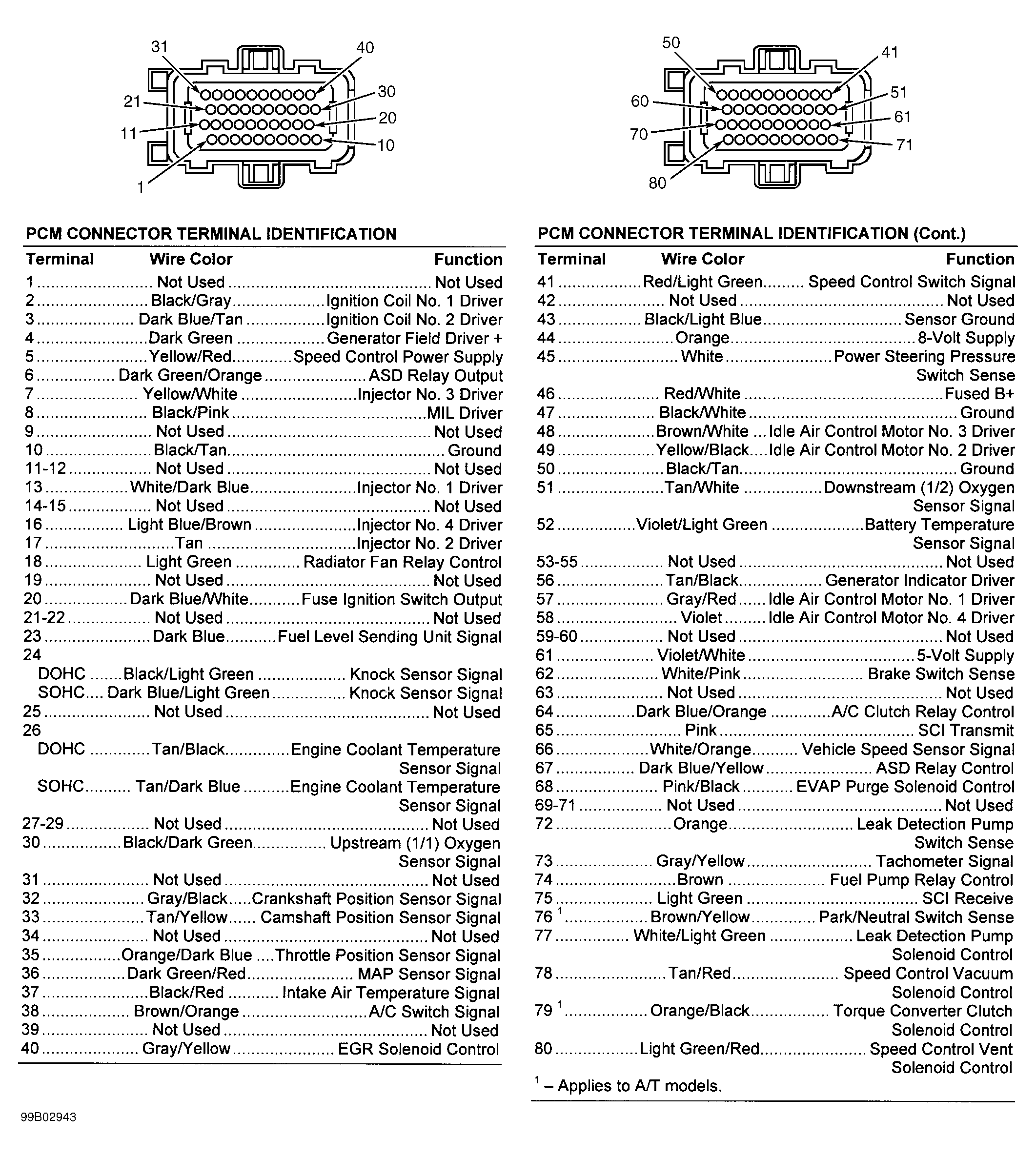

Fig 21: Powertrain Control Module Connector Terminal Identification

Courtesy of CHRYSLER CORP.

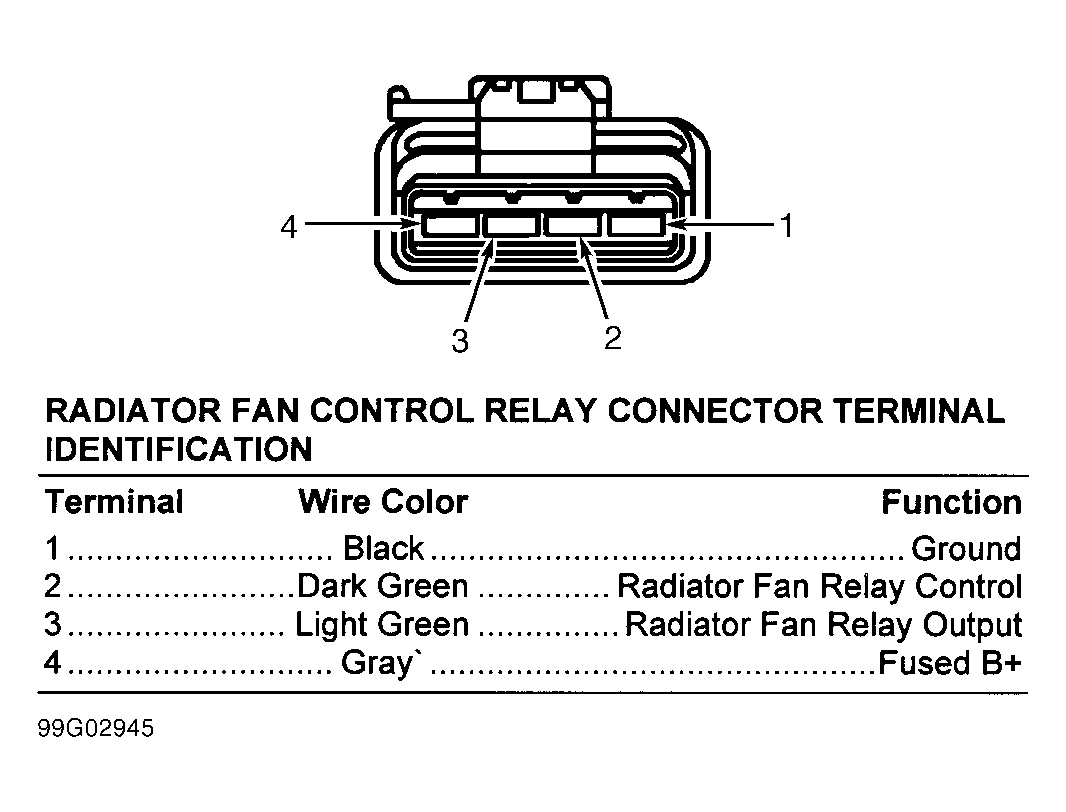

Fig 22: Identifying Radiator Fan Control Relay Connector Terminals

Courtesy of CHRYSLER CORP.

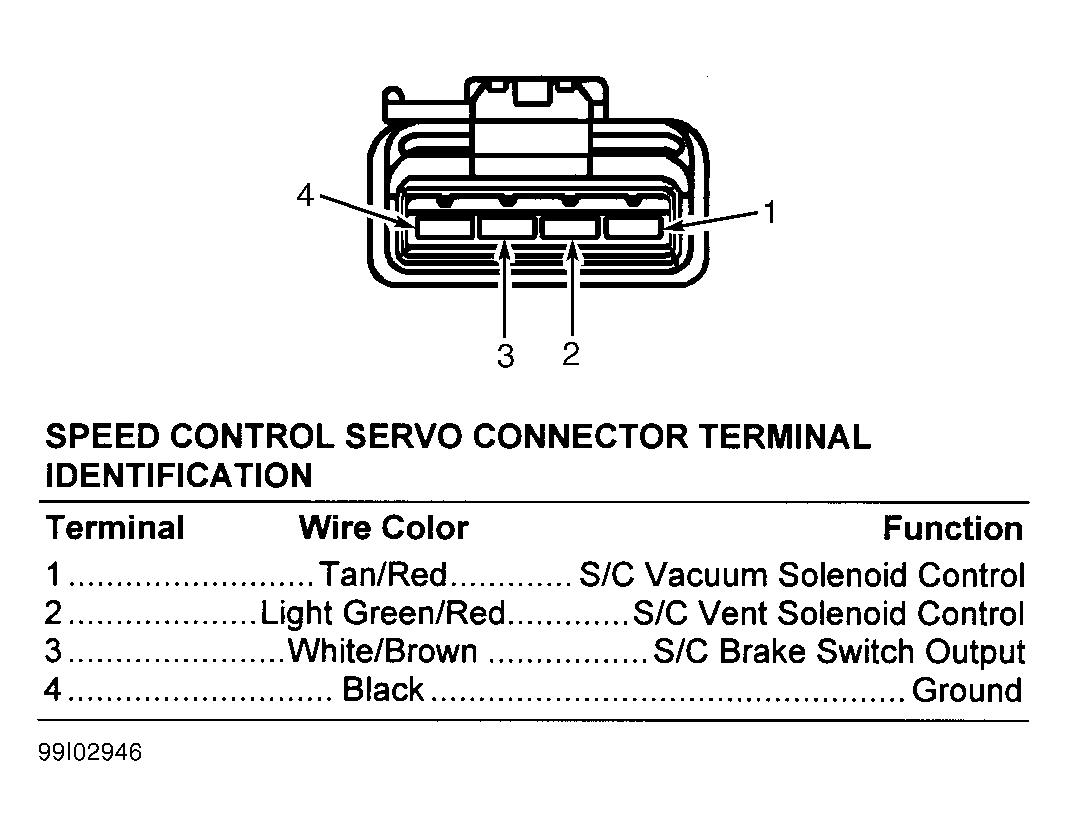

Fig 23: Identifying Speed Control Servo Connector Terminals

Courtesy of CHRYSLER CORP.

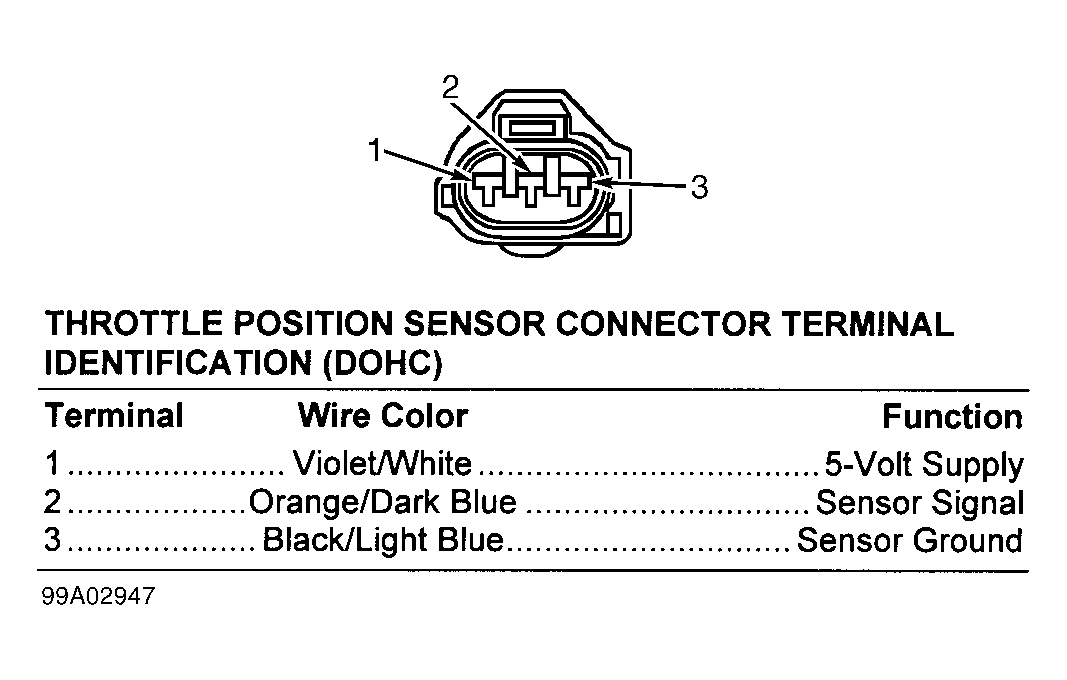

Fig 24: Identifying Throttle Position Sensor Connector Terminals (DOHC)

Courtesy of CHRYSLER CORP.

Fig 25: Identifying Throttle Position Sensor Connector Terminals (SOHC)

Courtesy of CHRYSLER CORP.

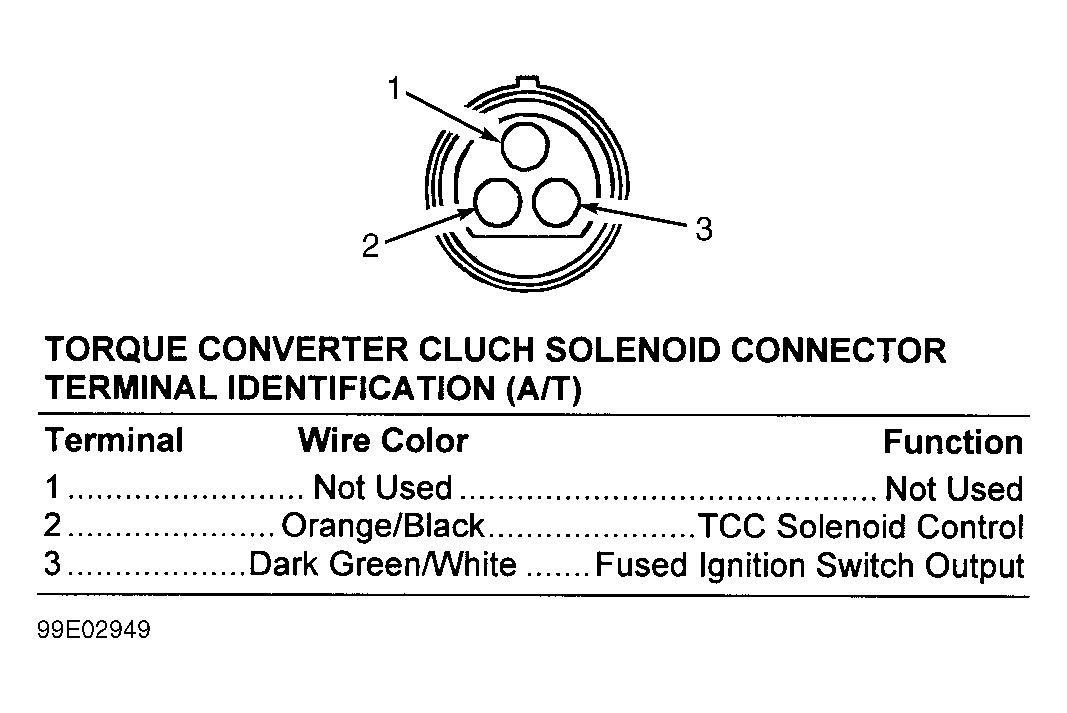

Fig 26: Identifying Torque Converter Clutch Solenoid (A/T) Connector Terminals

Courtesy of CHRYSLER CORP.

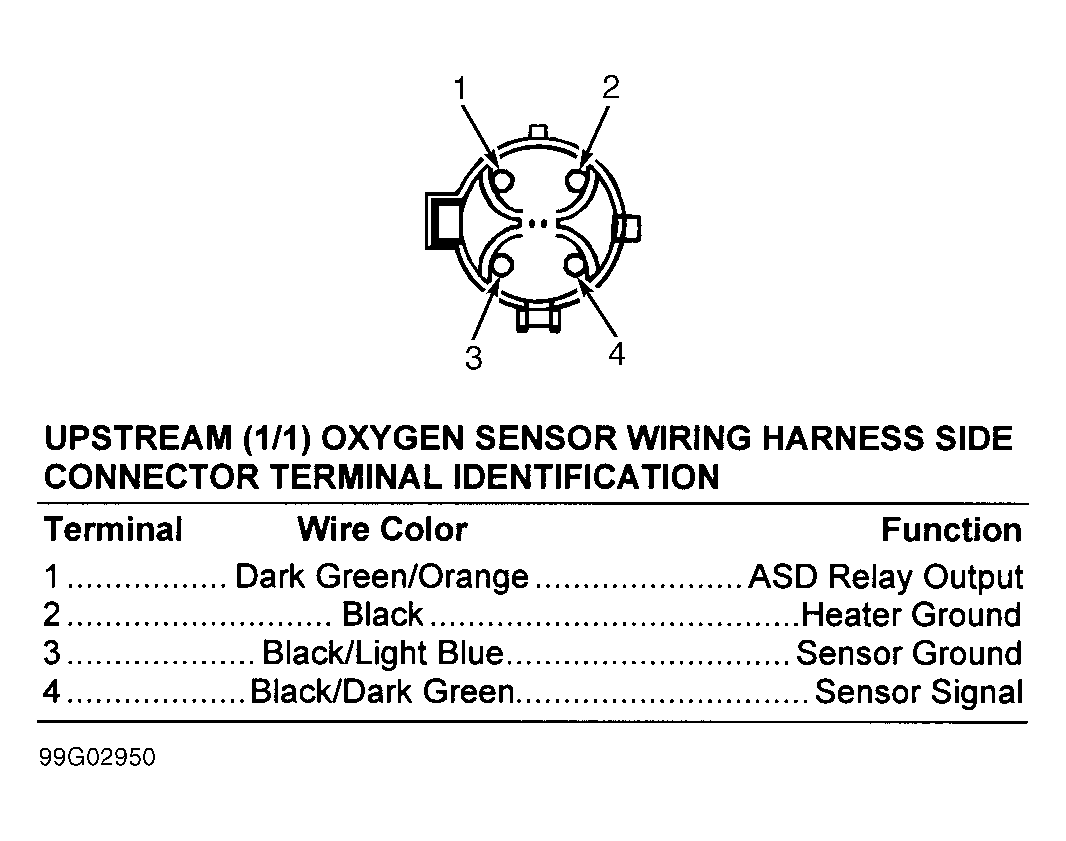

Fig 27: Identifying Upstream (1/1) Oxygen Sensor Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 28: Identifying Vehicle Speed Sensor Connector Terminals

Courtesy of CHRYSLER CORP.
