Test NTC-17A: Checking EVAP System

NOTE: Perform Test NTC-1A Before Proceeding

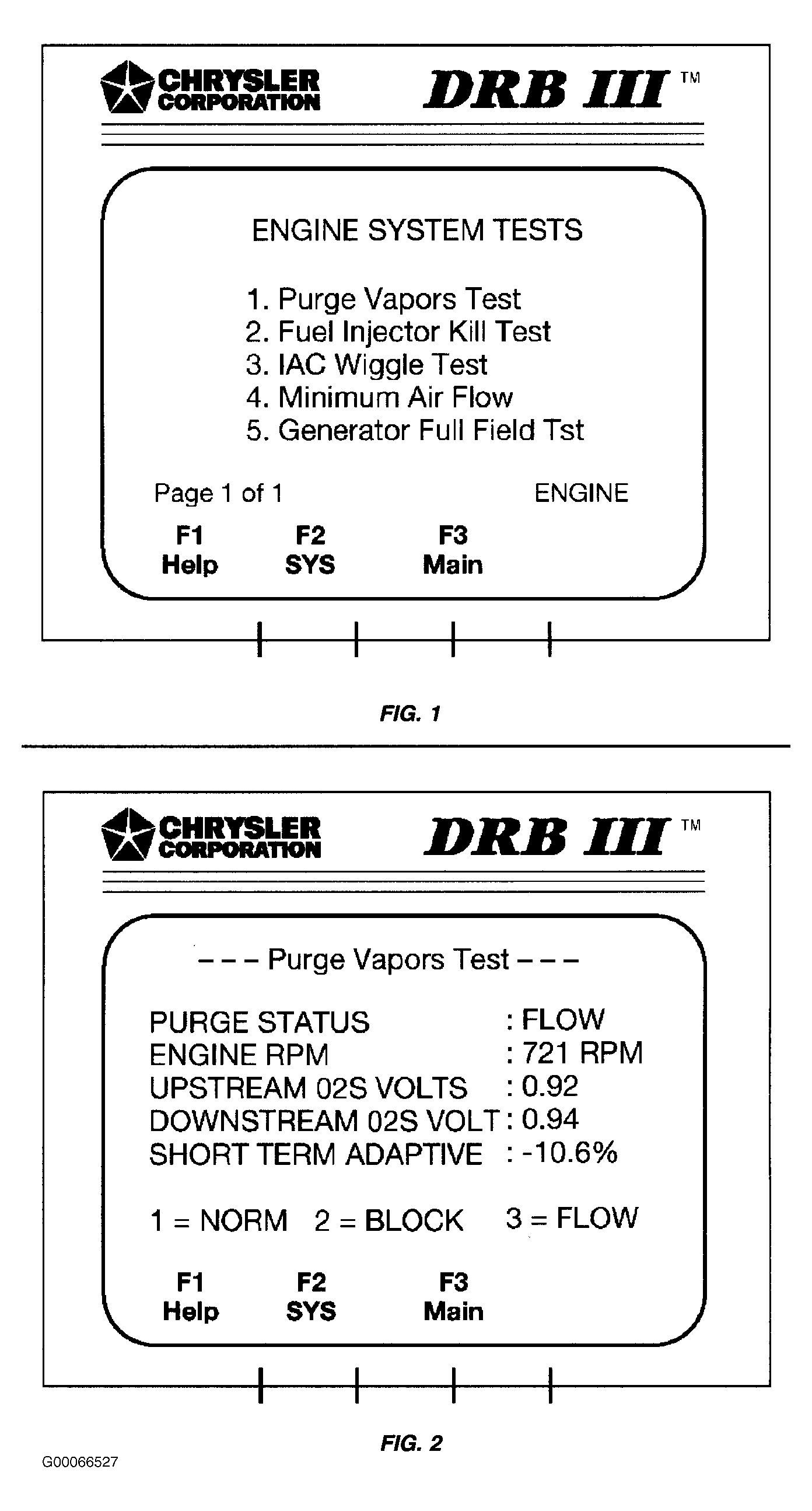

Fig 1: NTC-17A: Checking EVAP System (1 Of 2)
G00066527Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 2: NTC-17A: Checking EVAP System (2 Of 2)
G00066528Courtesy of DAIMLERCHRYSLER CORPORATION
